SSH - SSH/HP, forestry tillers from 160 to 500 hp
Tillers for Tractors

Tiller for medium/high and extremely high power tractors.

SSH

from 160 to 500 hp

SSH
Tiller for medium/high and extremely high power tractors.
Request information
Technical data sheet
SSH - SSH/HP, forestry tiller for PTO tractors with fixed teeth rotor - 1
SSH - SSH/HP, fresa per trattori con rotore a utensili fissi
SSH - SSH/HP, forestry tiller for PTO tractors with fixed teeth rotor - 3
SSH - SSH/HP, forestry tiller for PTO tractors with fixed teeth rotor - 4
SSH - SSH/HP, forestry tiller for PTO tractors with fixed teeth rotor - 5
SSH - SSH/HP, forestry tiller for PTO tractors with fixed teeth rotor - 6
Tillers for Tractors
SSH
Available in the following versions: SSH, SSH/HP

SSH and SSH/HP forestry tillers for 160 to 500 hp tractors ensure superior performance and reliability.
The large rotor makes it possible to shred stumps up to 70 cm in diameter, and more teeth shred better than ever, even for roots up to 50 cm deep.
The combination of quality materials and technology - such as the counter blade and the interchangeable internal wear plates - provides unmatched productivity and reliability.
The SSH/HP model also comes with a gearbox cooling system.

Read more
Request information
Technical data sheet
Tractor

from 160 to 500 hp
Shredding diameter

Ø 70 cm max
Working depth

50 cm max
Most important features
INTERCHANGEABLE HARDOX® INTERNAL AND SIDE GUARDS
Dual transmission with side gearbox

converts RPM to Power

Steel counter-blades

helps mulch material into a smaller final size

Video Video - FAE SSH - SSH/HP - Forestry tiller for high power tractors
Video Video - FAE SSH - SSH/HP - Three FAE SSH forestry tillers at work in the orange soil of Brazil

Applications:

SSH

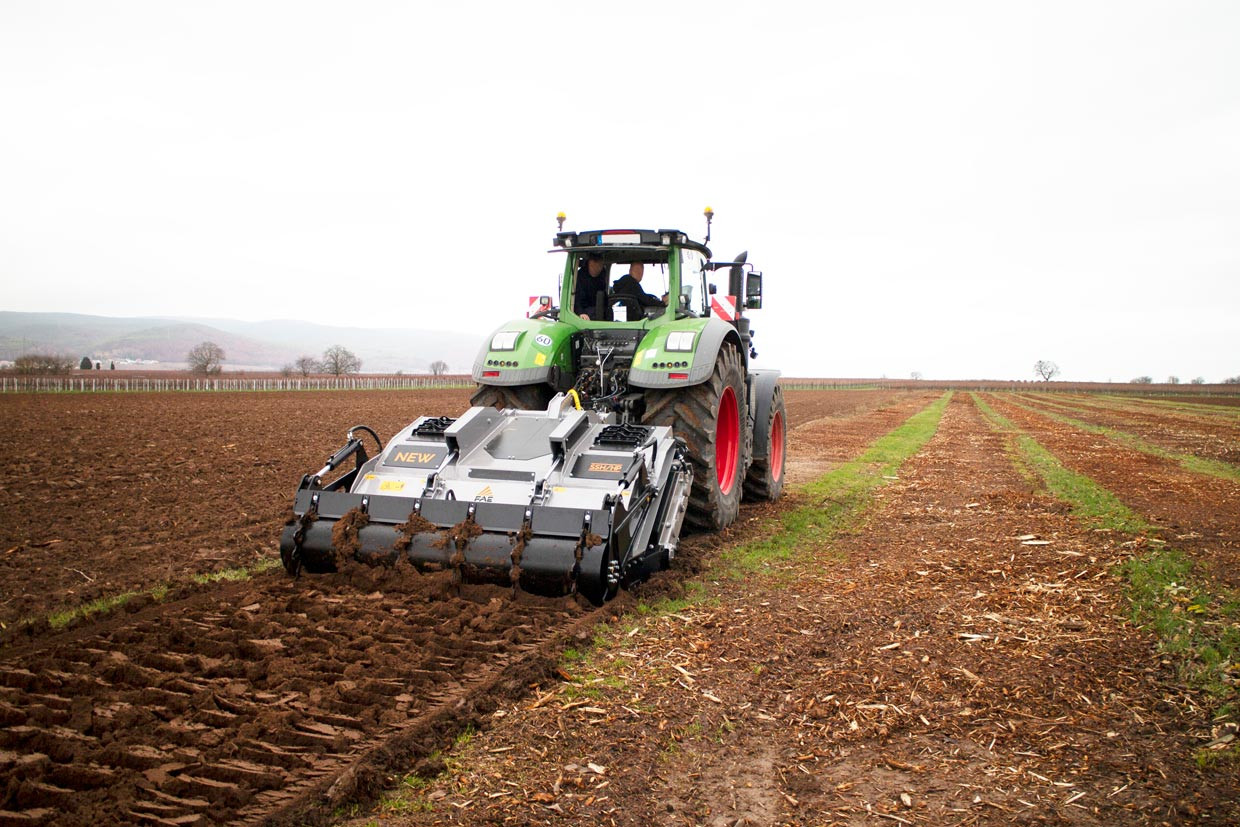

SSH - SSH/HP, tiller that guarantees high productivity and extreme reliability over time

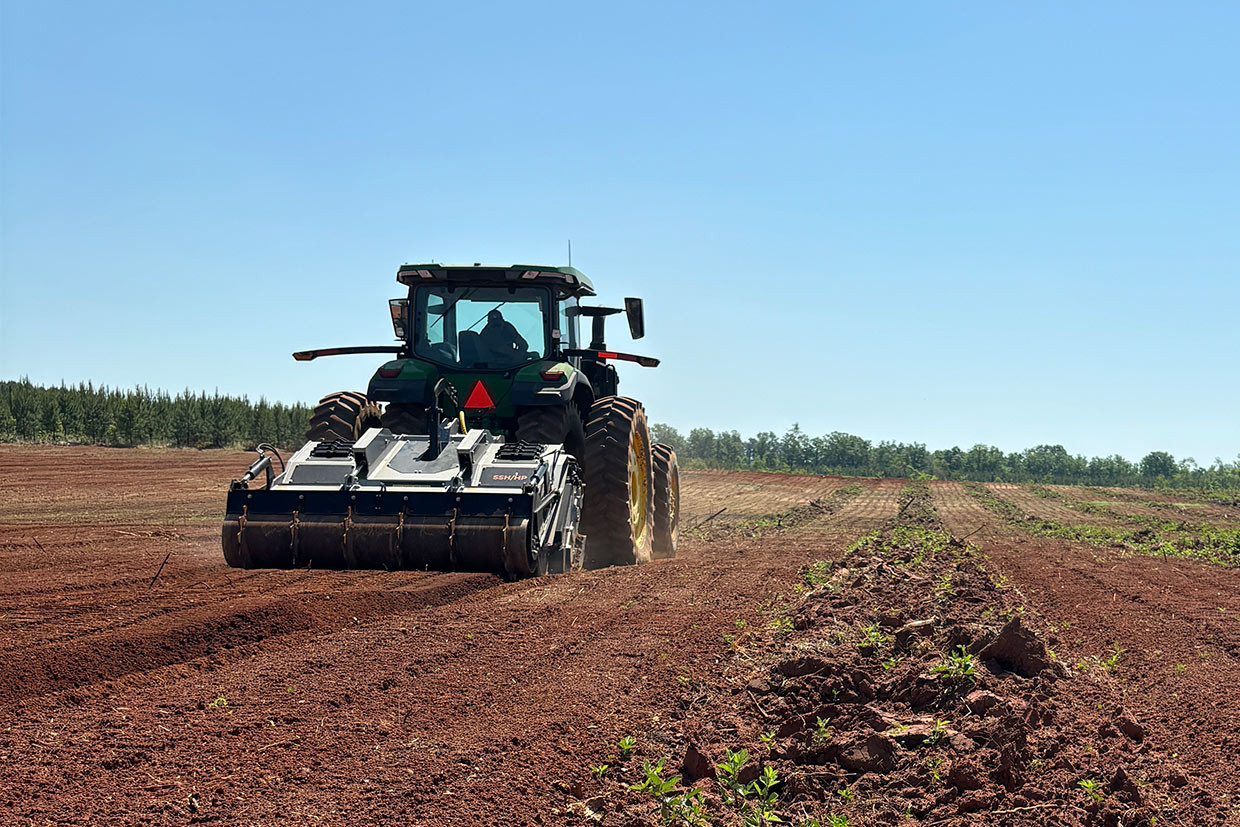

SSH - SSH/HP, forestry tiller for agricultural reclamation

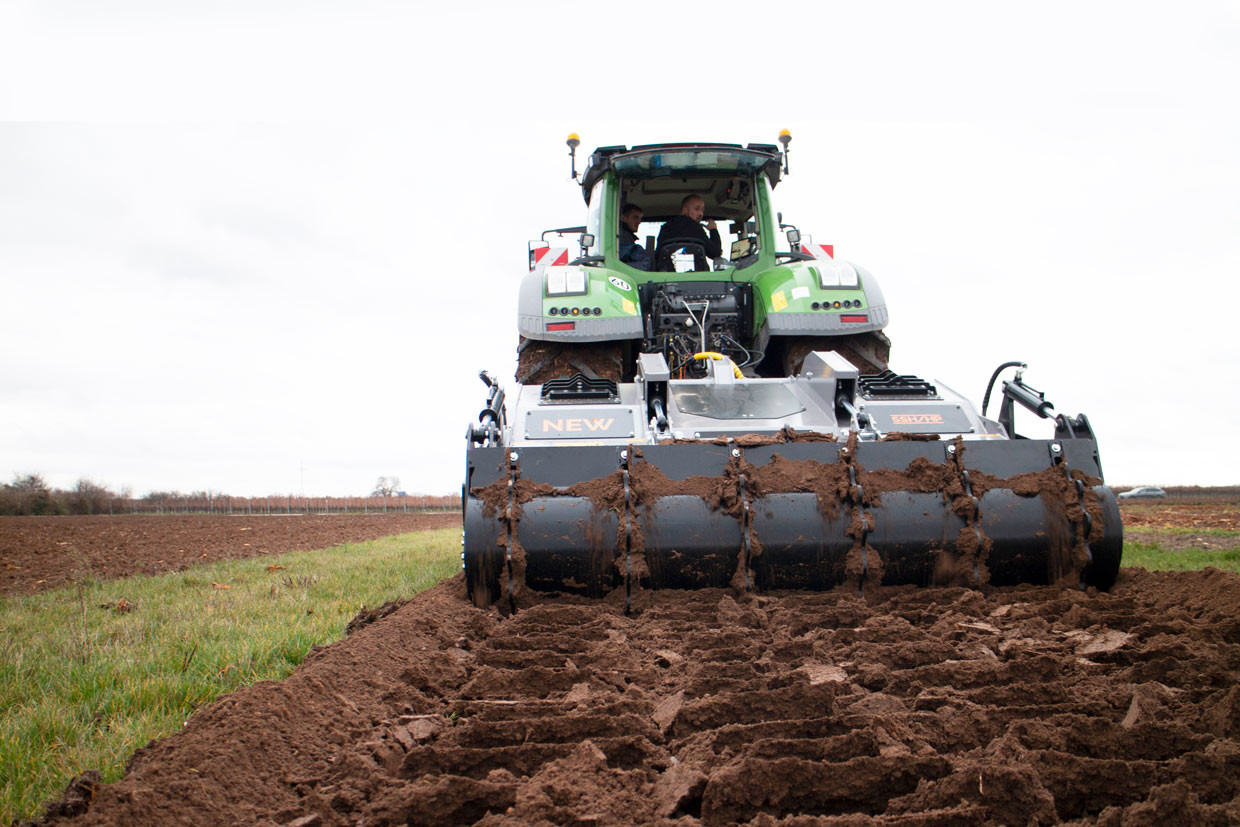

SSH - SSH/HP, forestry tillers with hydraulic rear hood with anti-clogging system
SSH - SSH/HP, forestry tiller for soil mixing

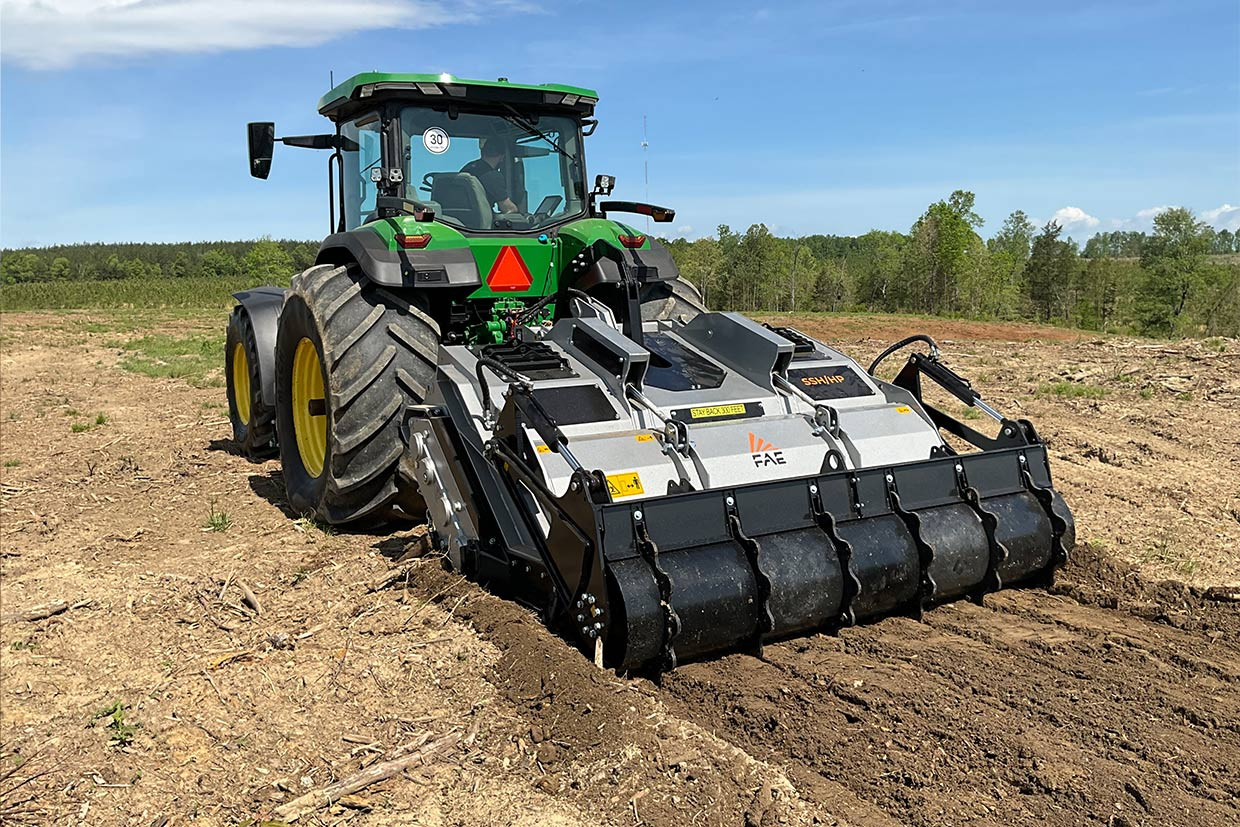

SSH - SSH/HP, tiller suitable for shredding operations even in the presence of roots up to 50 cm deep

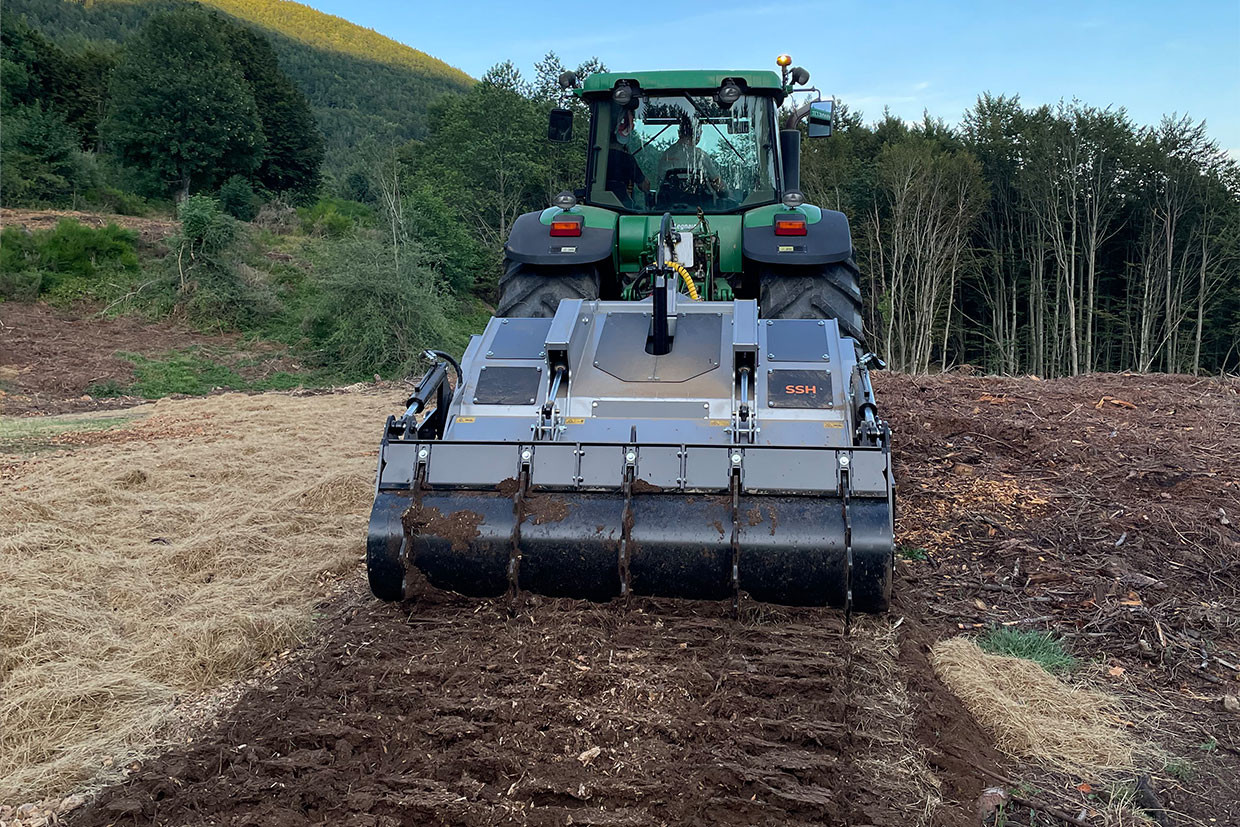

SSH - SSH/HP, tillers that guarantee high productivity and lower fuel consumption

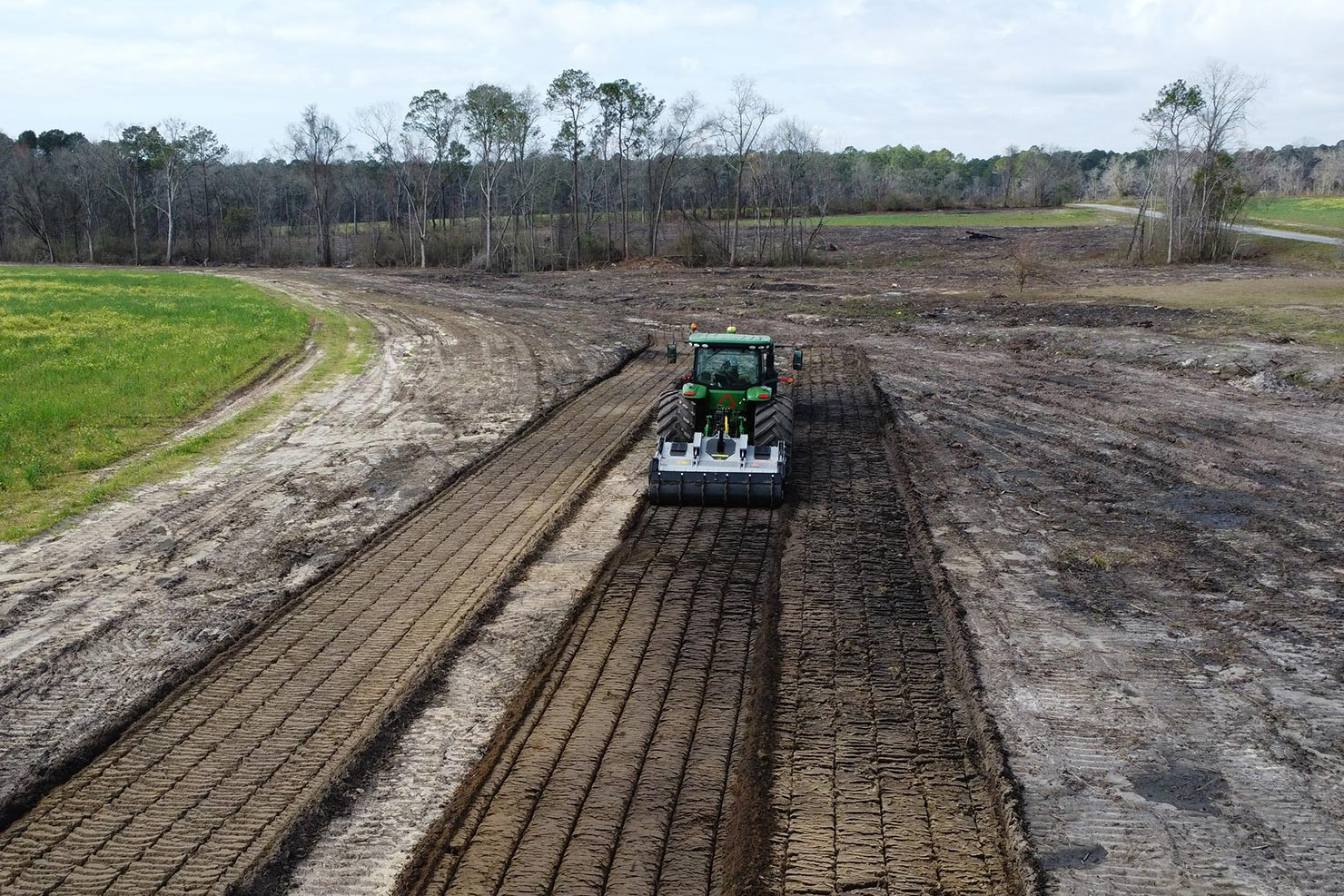

SSH - SSH/HP, also offers central box cooling as standard

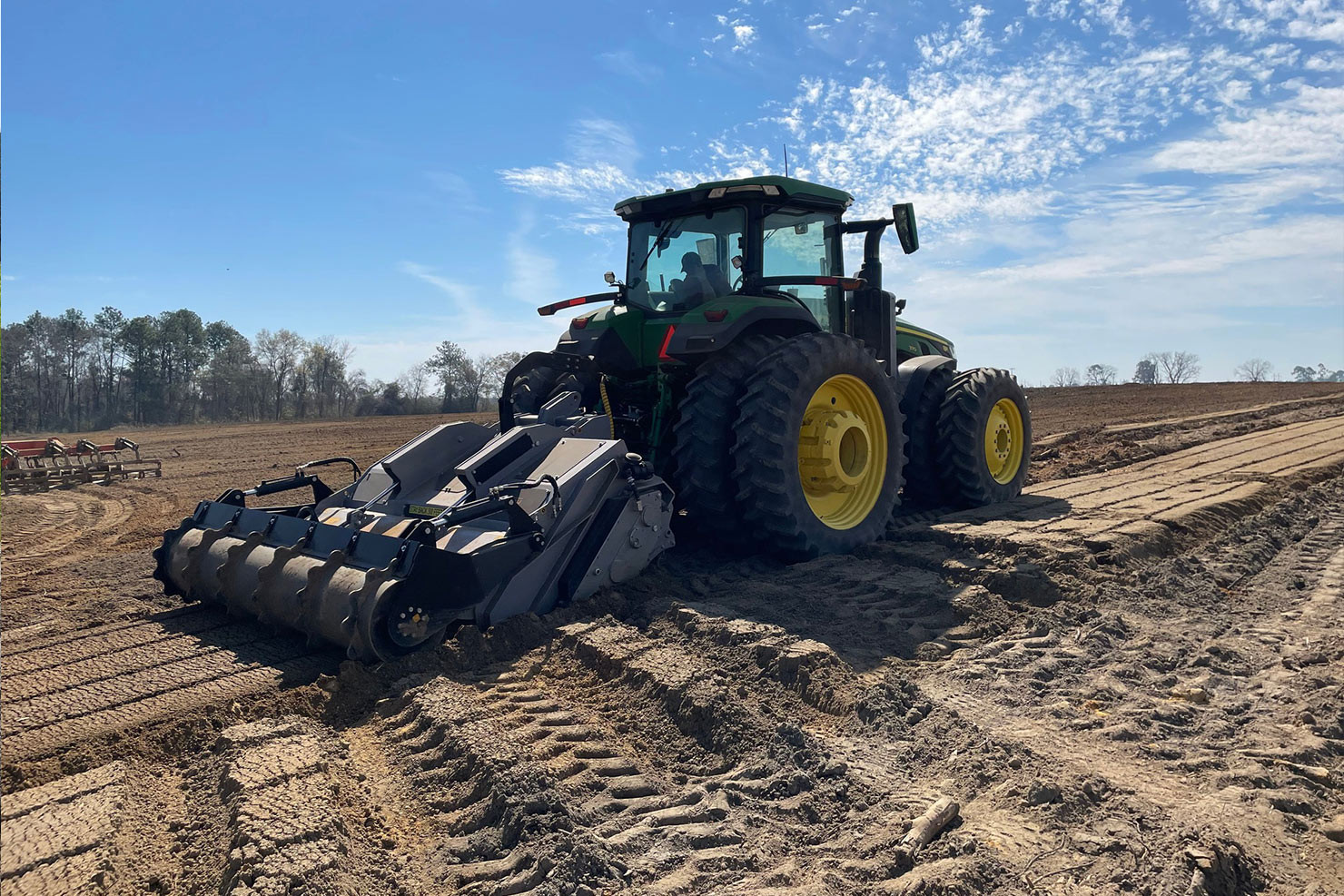

SSH - SSH/HP, vineyard and orchard maintenance

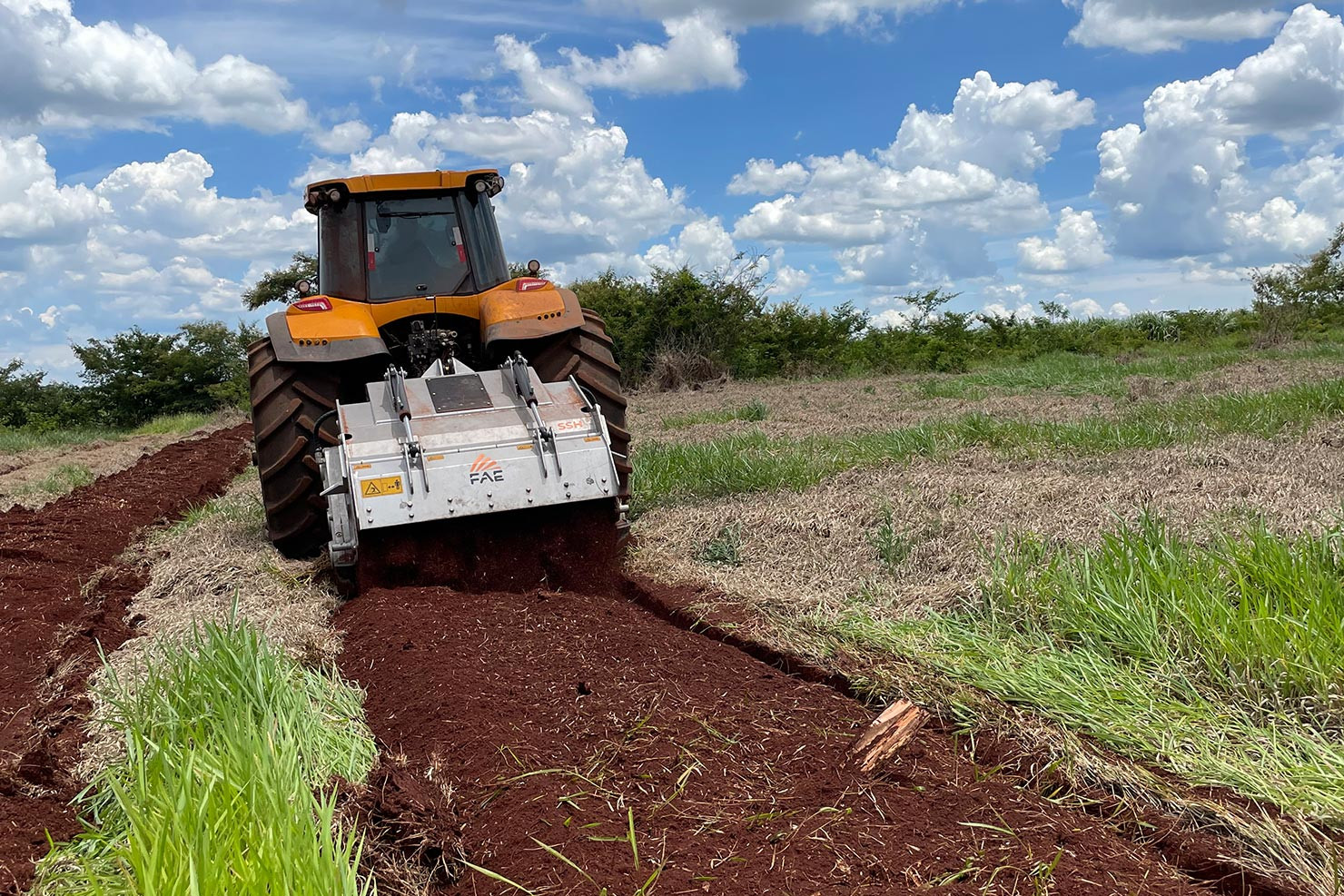

SSH - SSH/HP, tiller for medium-high and very high power tractors

Standard equipment

    • Hydraulic rear hood
    • Enclosed, dust-resistant machine body
    • Adjustable Hardox® counter blade
    • Interchangeable protection chains
    • Interchangeable wear-resistant Hardox® plates (SSH-200, SSH-225, SSH-250, SSH/HP)
    • Freewheel gearbox
    • Side PTO shafts with friction clutches
    • Transmission with side gearbox
    • PTO shaft support for machine at rest
    • Central PTO shaft with cam clutch (SSH)
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth A/3
    • Wear-resistant side plates
    • Side gearbox cooling system (SSH/HP)
    • Gearbox cooling system (SSH/HP)
    • Hydraulic top link cylinder (SSH-200, SSH-225, SSH-250, SSH/HP)
    • Z style self-aligning system (SSH-200, SSH-2250, SSH-250, SSH/HP)
    • Central PTO shaft without cam clutch (SSH/HP)

Original FAE tools

Unmatched performance
Tooth A/3 | FAE
Tooth A/3
standard
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches
Tooth A/3/HD | FAE
Tooth A/3/HD
optional
Ideal for:
Hardwood trees
Exposed stumps
Buried stumps
Peaty soil
Low rock content
Bushes and branches
Tooth F/3 | FAE
Tooth F/3
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Low rock content
Side scraper MH sx | FAE
Tooth MH (L)
standard
Side scraper
Side scraper MH (dx) | FAE
Tooth MH (R)
standard
Side scraper

Options

Multiple tooth options | FAE
Multiple tooth options
Dozing blade | FAE
Dozing blade
Hydraulic support roller | FAE
Hydraulic support roller
Adjustable forestry counter blade
Central PTO shaft yoke (SSH)
Hydraulic top link cylinder | FAE
Hydraulic top link cylinder (SSH-150, SSH-175)
Penetration skids | FAE
Penetration skids (SSH-150, SSH-175)
Hydraulic hood with anti-clogging system (SSH-200, SSH-225, SSH-250, SSH/HP)
Adjustable hood grille (SSH-200, SSH-225, SSH-250, SSH/HP)
Griglia regolabile Anti-intasamento | FAE
Adjustable anti-clogging grille (SSH-200, SSH-225, SSH-250, SSH/HP)
Stronger transmission (SSH-200, SSH-225, SSH-250)
Central PTO shaft without cam clutch (SSH-200, SSH-225, SSH-250)
W style self aligning device between PTO drive shaft/gearbox | FAE
W style self-aligning system (SSH-200, SSH-225, SSH-250, SSH/HP)
Support skid extension (SSH-200, SSH-225, SSH-250, SSH/HP)
Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >

Request information
