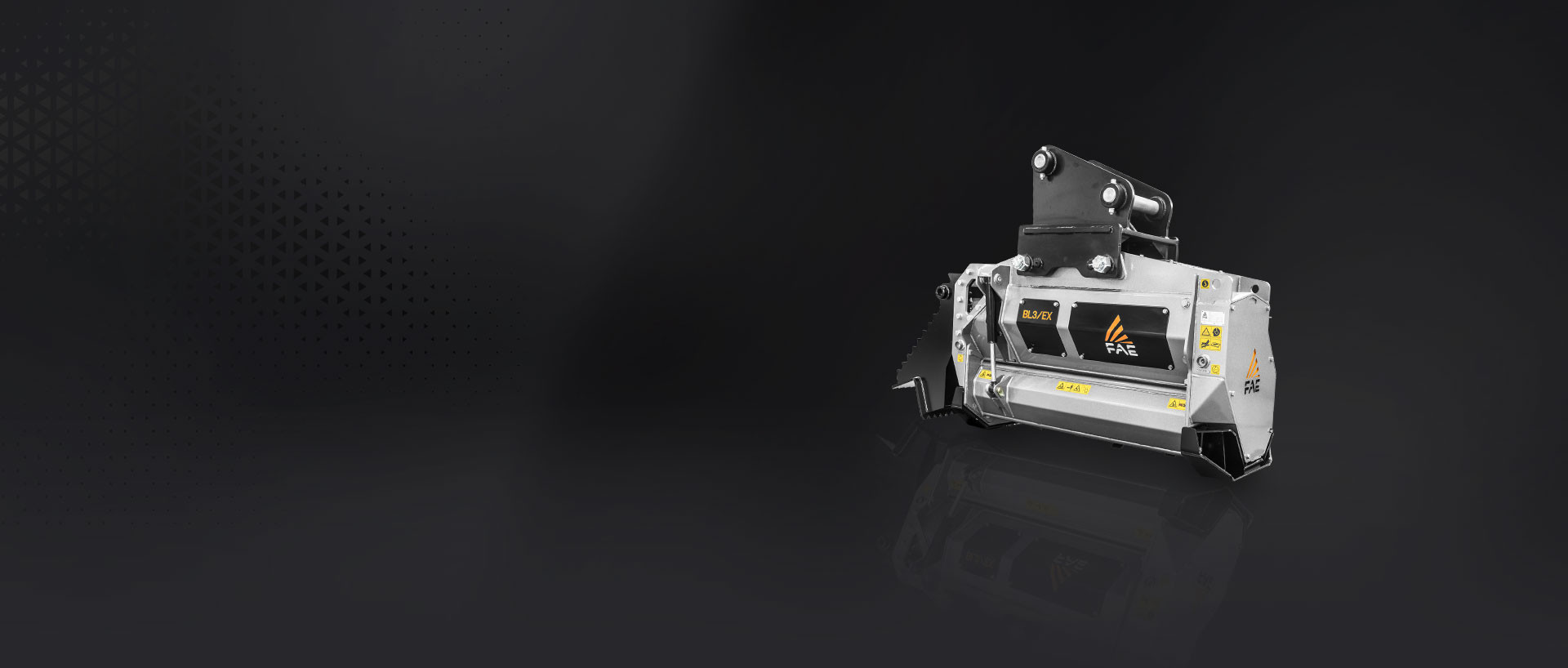

Mulchers for Excavators
BL3/EX/VT - BL3/EX/SONIC

The mulcher with Bite Limiter technology for large and midsize excavators.

BL3/EX/VT for 14-20 ton excavators mulches trees with a max. diameter of 20 cm and is available in two working widths: 134 cm and 158 cm.
The rotor features Bite Limiter technology.
Steel limiter rings limit the depth of cut, which reduces power demand and guarantees speed and exceptional performance.
The heat-treated forged-steel BL blades are durable and can be sharpened, lowering operating costs.
BL3/ EX/VT has a 110/60 cc VT (Variable Torque) motor for noticeably better performance, increased torque when needed, and minimal risk of rotor stalling.

Flow rate

from 120 to 210 L/min

Shredding diameter

Ø 20 cm max

Excavator weight

from 14 to 20 t

Most important features
Bite Limiter rotor

exceptional speed and performance with lower power requirement

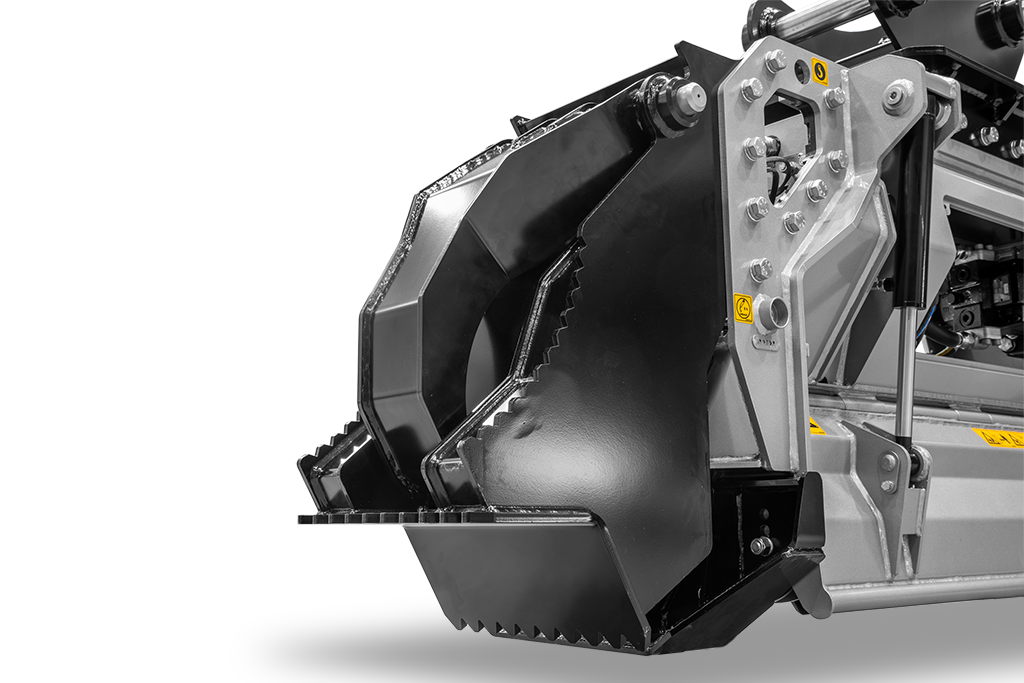

SPIKE PRO COUNTER-BLADES

FINER PRODUCT SIZE OF THE MULCHING MATERIALS

Sonic (BL3/EX/SONIC)

Sonic is a new automatic intelligent system that manages the hydraulic transmission

Standard equipment

    • Enclosed/anti dust machine body
    • Motor enclosed in the frame
    • Bulkhead for hydraulic connections
    • Spike Pro counter-blade
    • Poly-Chain® belts transmission
    • 110/60cc variable torque hydraulic piston motor (VT)
    • 110cc variable torque hydraulic piston motor (SONIC)
    • Bite Limiter Rotor
    • Flow control system valve
    • Safety and anticavitation valve
    • Diverter valve (plug in and play)
    • Sonic System (SONIC)

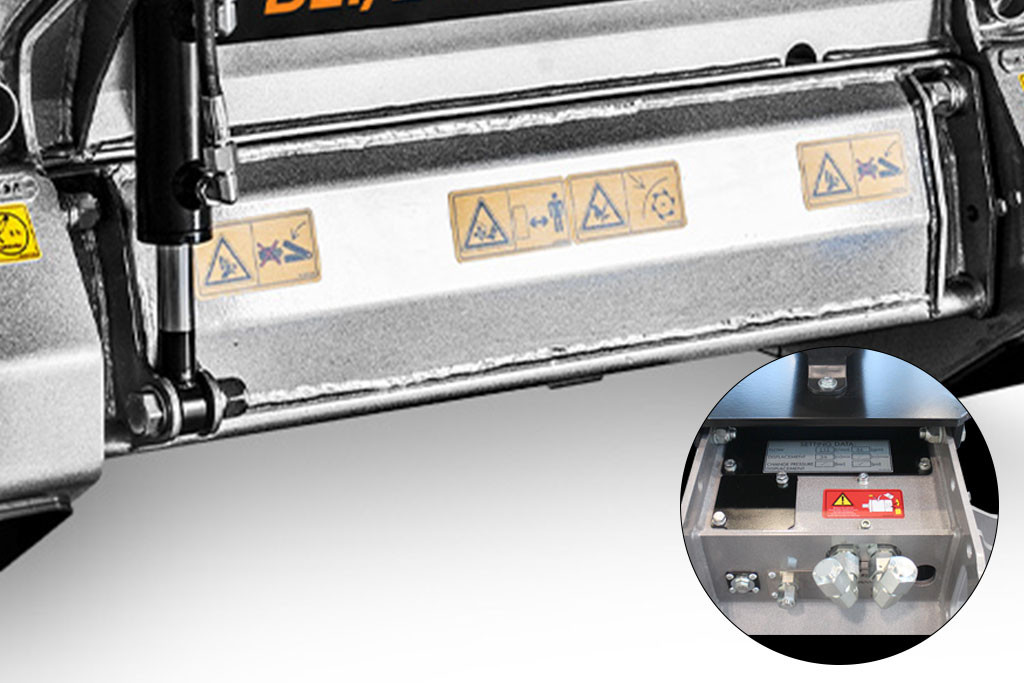

    • Hydraulic front trap door
    • Dedicated rear hood (deflector)
    • Adjustable skids

Teeth

Designed to be incomparable
Blade BL | FAE
Blade BL
standard
Ideal for:
Hardwood trees
Softwood trees
Exposed stumps
Bushes and branches
Teeth C/3/SS sx | FAE
Teeth C/3/SS sx
standard
Ideal for:
Hardwood trees
Bushes and branches
Teeth C/3/SS dx | FAE
Teeth C/3/SS dx
standard
Ideal for:
Hardwood trees
Bushes and branches

Options

Customized setting hydraulic motor | FAE
Customized setting hydraulic motor (VT)
Front fixed thumb bracked| FAE
Front fixed thumb bracked
Hydraulic thumb | FAE
Hydraulic thumb
Customized attachment bracket with pins | FAE
Customized attachment bracket with pins
Hydraulic front hood for excavator AUX line | FAE
Hydraulic front hood for excavator AUX line (VT)
Technology - Bite Limiter rotor | FAE
Technology - SONIC | FAE
VT (Variable Torque) piston motor | FAE
Technology
Bite Limiter rotor

The experience of the FAE Group has given rise to a new line of professional mulchers for excavators equipped with Bite Limiter technology.

The Bite Limiter rotor features special profiles in Hardox wear-resistant steel, guaranteeing an optimal cutting depth from the blades (types E, E/HD or BL).

This reduces the demand for power and facilitates a consistent working speed, leading to excellent performance when mulching any type of wood. The Bite Limiter also reduces the likelihood of rotor stalling and optimizes fuel consumption.

Technology
SONIC

Sonic is a smart, flexible system that automatically calibrates the mulcher’s hydraulic parameters thanks to an operator control box that allows the mulcher to work autonomously and constantly at maximum capacity, in all working conditions. Sonic guarantees perfect harmony between the operating machine and the FAE mulcher, increasing the machine’s performance by 30%.

Technology
VT (Variable Torque) piston motor

The VT (Variable Torque) piston motor significantly improves mulcher performance, increasing mulching torque when an extra boost of power is needed and minimizing the conditions for rotor stalling. The VT motor assists the operator with mulching, allowing for exceptional performance.
