Mulchers for Excavators

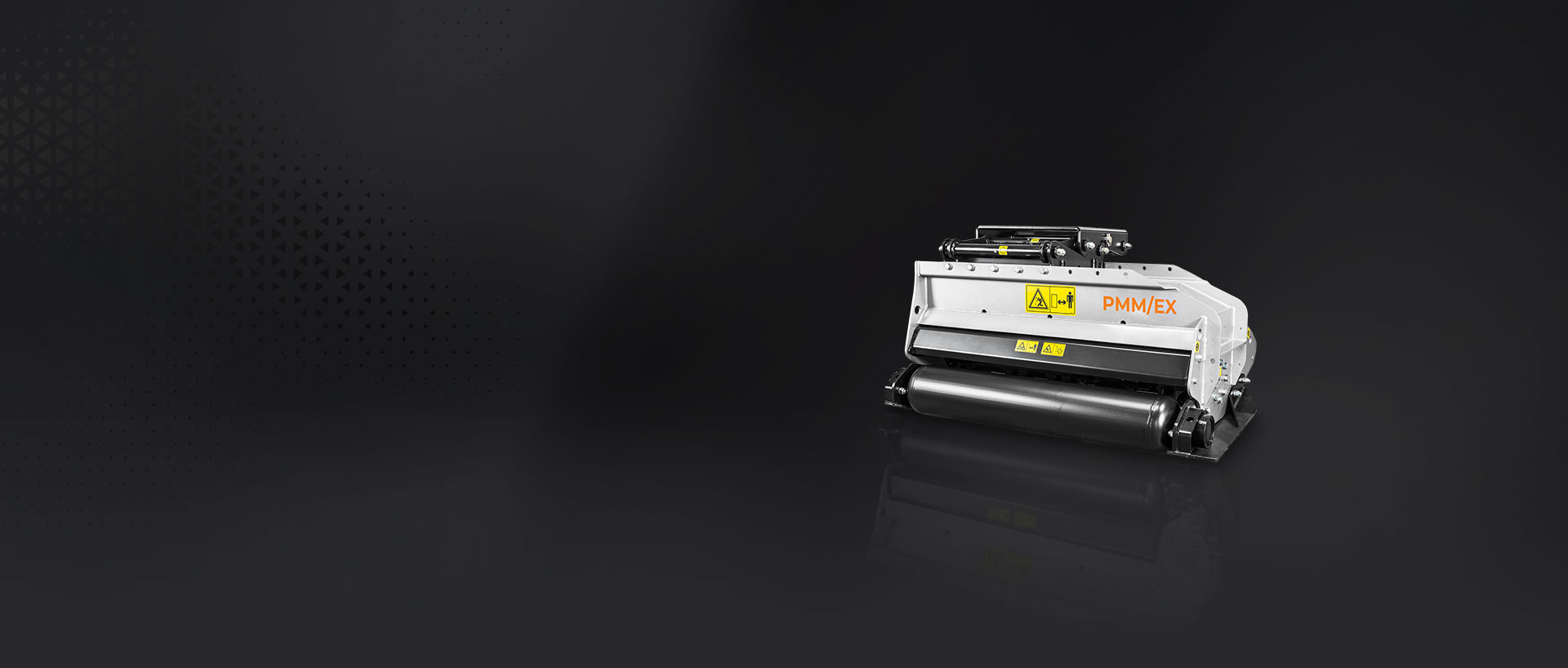

PMM/EX

Mulcher with hammer/flail rotor for excavators.

The PMM/EX is a flail mower used to mulch underbrush, grass and bushes.
It is equipped with a variable manual displacement hydraulic piston motor that can be set to the carrier’s hydraulic specifications.
The stronger roller supports (optional) ensure the best performance and maximum reliability on difficult terrain.
The flow control valve ensures minmal setup of the mulcher without adjustments or modifications to the hydraulic system of the excavator.

Flow rate

from 85 to 155 L/min

Shredding diameter

Ø 8 cm max

Excavator weight

from 6 to 13 t

Standard equipment

    • Enclosed/anti dust machine body
    • Welded steel counter-blades
    • Motor enclosed in the frame
    • Bulkhead for hydraulic connections
    • Self levelling protection rubber
    • Transmission with belts
    • 32/65cc variable manual displacement hydraulic piston motor with relief and anticavitation valve
    • Flow control system valve
    • Safety and anticavitation valve
    • Rear hood with mechanical adjustment
    • Adjustable skids
    • Self cleaning rear roller with integrated skids

Teeth

Designed to be incomparable
Hammer PMM | FAE
Hammer PMM
standard
Ideal for:
Bushes and branches
Blade Y/3 | FAE
Blade Y/3
optional
Ideal for:
Bushes and branches

Options

Customized setting hydraulic motor | FAE
Customized setting hydraulic motor
Customized attachment bracket with pins | FAE
Customized attachment bracket with pins
Attachment plate with self levelling device | FAE
Attachment plate with self levelling device
Possibillity to have the rotor equipped with PML hammers or Y-flails | FAE
Possibillity to have the rotor equipped with PML hammers or Y-flails
