Multitasks for Tractors

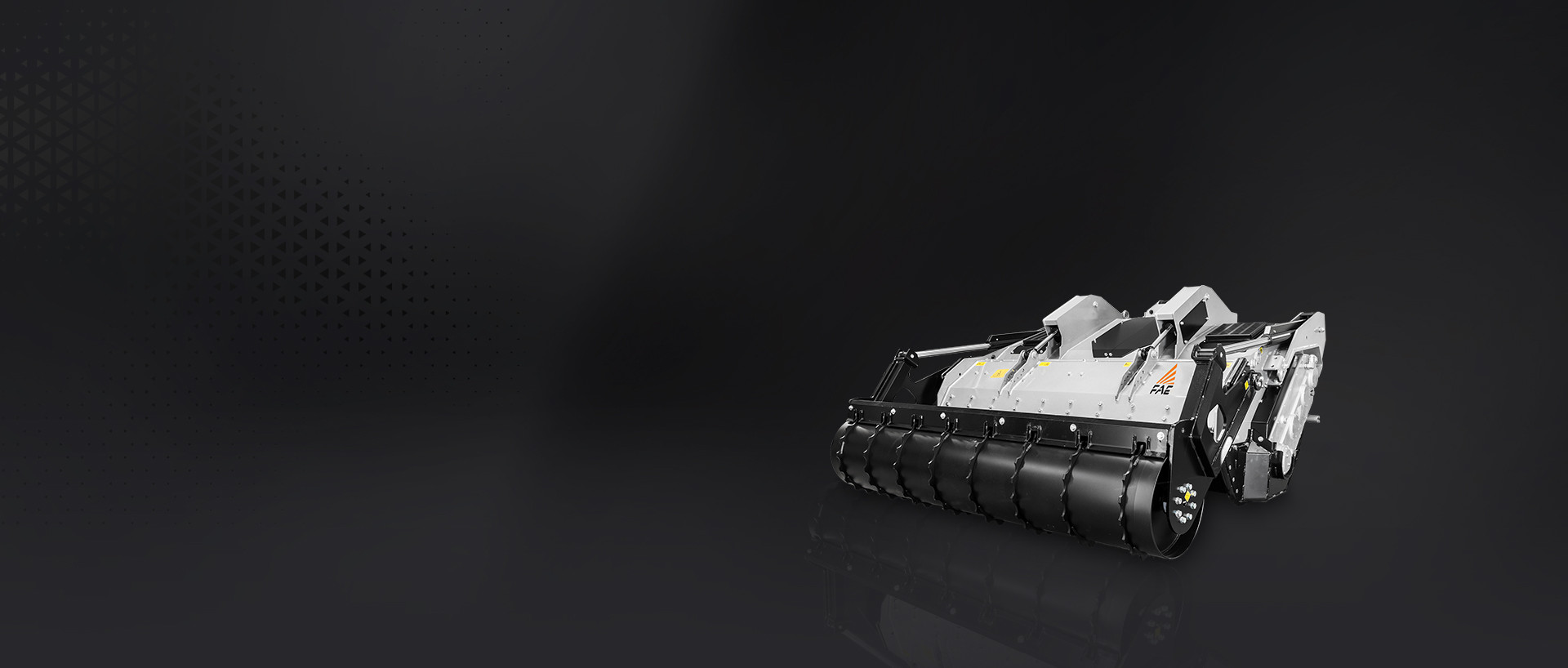

SFH - SFH/HP

Stone crusher, forestry tiller and mulcher for PTO tractors with fixed teeth rotor.

The SFH is a versatile, heavy duty attachment for use with tractors up to 500 horsepower (HP version).
It can grind trees up to 45 cm max diameter, crush stones up to 35 cm max, and run at a depth of 40 cm under ground.
The transmission with side gearboxes converts engine power into speed and torque.
Multiple tooth options combined with an industry leading rotor design, make the SFH one of a kind.
All our options make the SFH very versatile and the best solution for multiple applications.

Tractor

from 300 to 500 hp

Shredding diameter

Ø 35 cm max (stones)
Ø 45 cm max (trees)
Ø 55 cm max (stump)

Working depth

40 cm max

Most important features
Hydraulic rear Hood with anti-clogging system

for high productivity and lower fuel consumption

Standard equipment

    • Hydraulic rear hood
    • Cylinder protection
    • Inner anti wear clad plates FCP
    • Enclosed, dust-resistant machine body
    • Hydraulic hoses integrated in the frame
    • Inside lateral protection
    • Bolted on protection chains
    • Forged and hardened interchangeable counter-blades
    • Third row of interchangeable forged and hardened counter-blades
    • Adjustable Hardox® counter-blade
    • Adjustable extended 3 point linkage
    • Hydraulic top link
    • Z style self ranging system of the PTO drive shaft/gearbox
    • Transmission with side gearbox
    • Side gearbox with oil cooling system
    • Gearbox with freewheel
    • PTO shaft
    • Friction clutches
    • Gearbox with oil cooling system (HP)
    • Bolt-on rotor shafts (in forged steel)

Original FAE tools

Unmatched performance
Tooth G/3| FAE
Tooth G/3
standard
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Tooth G/3/HD | FAE
Tooth G/3/HD
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Side scraper STC/FP | FAE
Tooth STC/FP (1 screw)
standard
Side scraper
Side scraper STC/3/FP | FAE
Tooth STC/3/FP
standard
Side scraper

Options

Bolted grid on rear hood | FAE
Bolted grid on rear hood
High Speed Transmission | FAE
High Speed Transmission
Multiple tooth options | FAE
Multiple tooth options
W style self aligning device between PTO drive shaft/gearbox | FAE
W style self aligning device between PTO drive shaft/gearbox

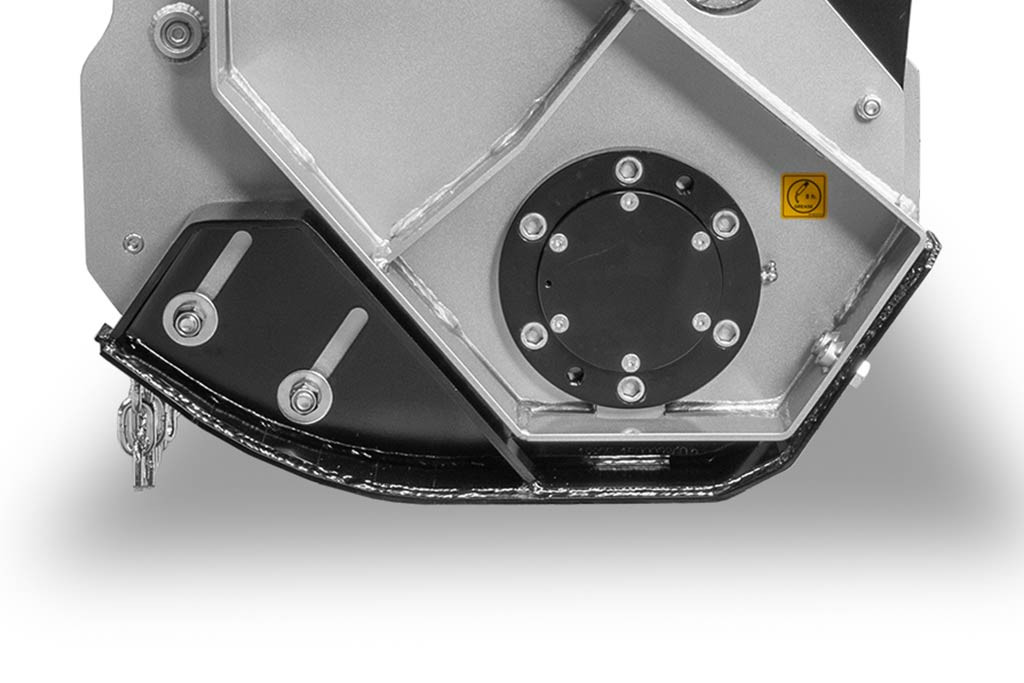

Hydraulically adjustable skids | FAE
Hydraulically adjustable skids
Hydraulic support roller | FAE
Hydraulic support roller
Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >
