Tracked Carriers
PT-300

The tracked carrier that is ready for anything.

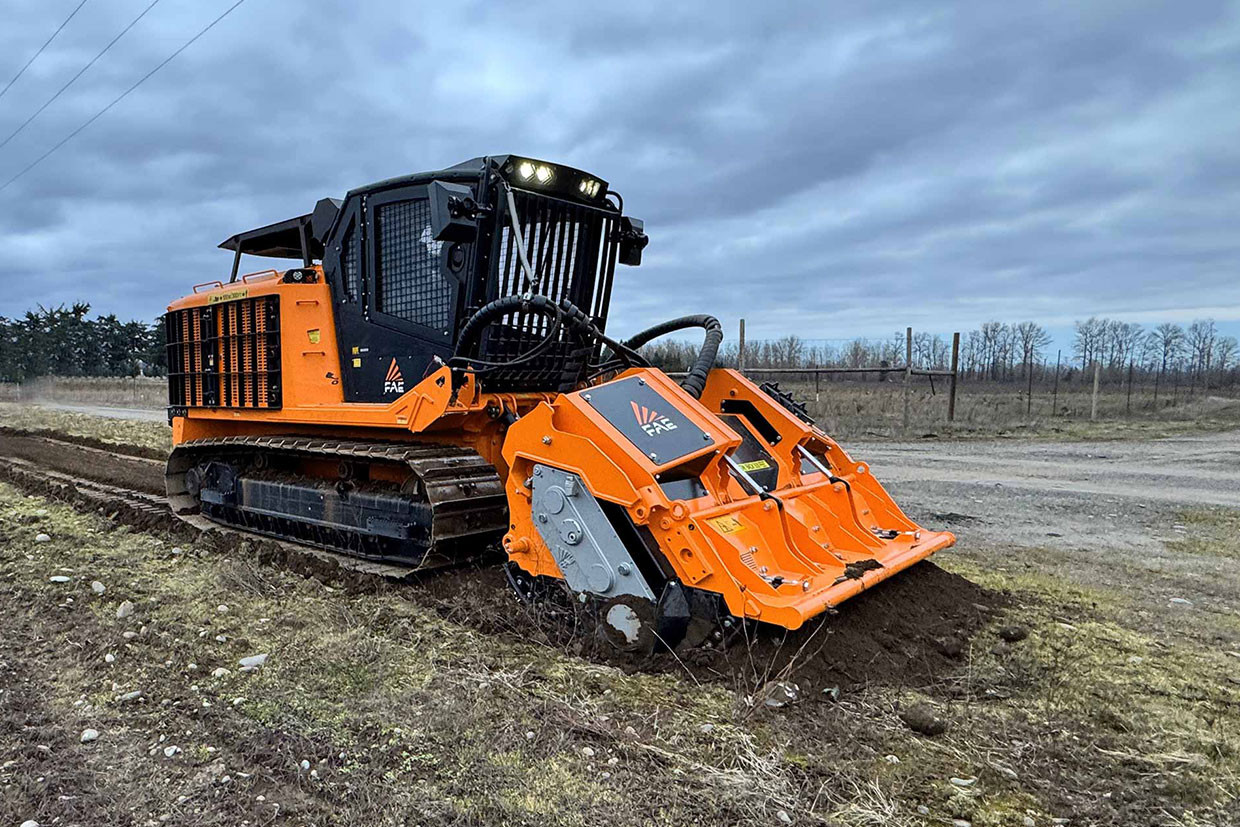

The FAE PT-300 is the ideal tracked carrier for the most difficult tasks, whether managing woods and forests or creating firebreaks near electrical lines, oil and gas pipelines.
Its solid structure with oscillating undercarriage make it compatible with a wide variety of FAE hydraulic units: forestry mulchers, cutters, stone crushers, stump cutters and dozer blades.
The high-power CAT C7.1 Acert straight-six engine with low operating weight makes it possible to work on steep slopes and soft ground.
The hydraulic system guarantees reliability and efficiency.
The spacious cab is unrivaled when it comes to comfort, ergonomics and operator safety.

Power

275 hp | CAT ENGINE | TIER 3 / STAGE III A

302 hp | CAT MOTORE | TIER 4 FINAL / STAGE V

Most important features
POWERFUL

The flexibility and reliability of one of the world’s most widely used six-cylinder engines. The Caterpillar C7.1 Tier 4 Final/ Stage V engine delivers 302 hp, while the Tier 3/Stage III A version provides 275 hp. Always top-notch performance supported by a global service network.

NIMBLE

The FAE PT-300 takes working on steep, soft, uneven and swampy terrains in stride.
Longitudinal slopes of 45° and transverse slopes of 35°.
High power, low operating weight.
Minimum pressure against the ground: 0.29 kg/cm2.

TECHNOLOGICAL

High-tech body and soul. An integrated system developed by FAE to ensure maximum performance. With a network of sensors to monitor key operating parameters, everything in the PT-300 can be easily fine-tuned.

COMFORTABLE

Designed with total operator comfort in mind. ROPS/FOPS/OPS cabs - the industry benchmark. High Lexan™ windows. Ergonomic joysticks. mPneumatic seat. 7” color display to monitor and modify all operating functions.

VERSATILE

The construction features of the FAE PT-300 enable it to accommodate forestry mulchers mulcher (also with exclusive Sonic), cutters, stone crushers, stump cutters and dozer blades. Always the ideal configuration to manage woods and forests as well as create firebreaks near electrical lines, oil and gas pipelines.

  • The engine of the FAE PT-300 D:MINE is a certainty
    AN ENGINE THAT’S ALWAYS READY TO GO

    You can count on the FAE PT-300 engine. The Caterpillar C7.1 Acert six-cylinder is one of the world’s most popular and highly respected engines. Equipped with twin turbochargers with after cooler and Acert technology, the Tier 4 Final/Stage V version of this engine delivers an impressive 302 hp. Efficient, reliable, with superb consumption/power ratio.
    Compliance with the Tier 4 Final/Stage V standard is guaranteed with the combination of diesel particulate filter (DPF), selective catalytic reduction (SCR) and diesel oxidation catalyst (DOC) technologies.
    A combination that maximizes uptime and requires minimal maintenance over time, achieved by passive regeneration that does not require interrupting the work. The FAE PT-300 is also available in a Tier 3 / Stage III A version for emission-free markets, rated at 275 hp. The generous 7-liter displacement and a cooling system designed specifically for the FAE PT-300 ensure that both configurations can offer peak performance in both heavy-duty applications and when working in tropical climes.

  • The transmissions of the FAE PT-300 are based on two fundamental concepts: technology and integration
    EFFICIENT, RELIABLE TRANSMISSION

    The transmissions designed for the FAE PT-300 are based on two fundamental concepts: technology and integration. Electronically controlled pumps and sensors and a dedicated control unit, working together to deliver maximum performance. The systems are designed to enable the CAT C7.1 Acert engine to operate at optimal rpms at all times.
    The FAE PT-300’s hydrostatic transmission also serves to dampen operating loads. This ensures that the carrier and its key components are subjected to less stress, reducing wear and tear. The end result is greater durability than a mechanical transmission.
    An added benefit of the FAE PT-300’s hydrostatic transmission is that they can accommodate a wide variety of dedicated FAE equipment such as forestry mulchers, stump cutters, stump grinders and dozer blades.

  • The FAE PT-300 undercarriage structure provides maximum operational performance and reliability even in the most demanding jobs
    HEAVY DUTY UNDERCARRIAGE

    The FAE PT-300 undercarriage is designed to provide maximum operating performance and reliability, even in the most demanding conditions. Prime quality Berco components. Chains with lifetime lubrication offer longer life than conventional chains as well as greater operator comfort. Solid, reliable dozertype rollers. Oscillating undercarriage technology for superior traction and comfort. Two options available for roller guards to better adapt to different working environments.
    Conventional geometry ensures a low center of gravity and provides optimal contact between chain and drive wheel. Two fundamental elements for the best possible work, even on slopes. The FAE PT-300 wheelbase also extends the area over which the load is distributed, which means lower specific pressure against the ground.
    The frames of the PT-300 undercarriage are designed to withstand major stresses and make maintenance easier.

  • The FAE PT-300 cabin is designed for those who work in extreme conditions
    A SERIOUSLY COMFORTABLE CAB

    The cab of the FAE PT-300 is designed for those who work in extreme conditions. It is ergonomic, soundproof and guarantees optimal visibility, making it an industry benchmark.
    Joysticks built into the pneumatic suspension seat allow for easy, precise operation of the PT-300. The controls on the side console are distributed to make them user friendly, and the 7” color display keeps the essential carrier parameters in view at all times.
    ROPS/FOPS/OPS certification meets the highest standards of operator safety, even in the most demanding applications. The air conditioning system vents located throughout the cabin provide all the comfort the operator needs, in hot or cold weather. An optional cabin pressurization system is also available.
    The large, 12-mm thick, impact and scratchresistant Lexan™ windows provide excellent visibility. Powerful LED work lights offer broad coverage, ensuring precise, safe work in all conditions.

  • Technology - SONIC | FAE
    SONIC

    Sonic is a smart, flexible system that automatically calibrates the mulcher’s hydraulic parameters thanks to an operator control box that allows the mulcher to work autonomously and constantly at maximum capacity, in all working conditions. Sonic guarantees perfect harmony between the operating machine and the FAE mulcher, increasing the machine’s performance by 30%.

Standard equipment

    • Sonic System
    • Hydrostatic tracks transmission
    • Hydrostatic attachments transmission
    • Oscillating undercarriage
    • Combined aluminum cooler anti-clogging fins style
    • Cabin ROPS/FOPS/OPS-approved
    • Comfort driver’s seat (heated and air suspended)
    • Ergonomic joysticks controls
    • Heating & Air conditioning systems
    • Cabin air filtration dust proofing
    • LCD color 7” display
    • MP3/CD bluetooth radio player
    • LED working lights
    • Engine CAT C7.1 Acert turbocharged and after-cooled
    • Double emergency exit and roof escape external access handle
    • Lexan® cabin windshields (full equipped 12 mm)
    • Air compressor system
    • After-treatment system DOC/DPF/SCR (PT 300 T4F)
    • Oscillating style H-frame
    • 660 mm steel tracks, single grouser, lubricated track chain, dozer-style rollers
    • Hydraulic control KIT for Winch and Guard frame

Options

Rear winch - rated towing capacity: 6t | FAE
Rear winch - rated towing capacity: 6t
Rear view camera with additional LCD display (visibility package) | FAE
Rear view camera with additional LCD display (visibility package)
Additional lighting package (visibility package) | FAE
Additional lighting package (visibility package)
Proportional and reversible radiator fan | FAE
Proportional and reversible radiator fan
Air shut-off system | FAE
Air shut-off system
Protective windshield grill | FAE
Protective windshield grill
Cabin pressurization system | FAE
Cabin pressurization system
Oil top-off pump (service package) | FAE
Oil top-off pump (service package)
Automatic fire suppression system | FAE
Automatic fire suppression system
Air-window cleaning system | FAE
Air-window cleaning system
Canopy | FAE
Canopy
Chain guides | FAE
Chain guides
Rock guards  | FAE
Rock guards
Service light (service package) | FAE
Service light (service package)
Drainage filter (heavy duty filtration package) | FAE
Drainage filter (heavy duty filtration package)
Floating lift system | FAE
Floating lift system
Pre-heating system for engine and hydraulic oil | FAE
Pre-heating system for engine and hydraulic oil
EJECTOR (HEAVY DUTY FILTRATION PACKAGE) | FAE
EJECTOR (HEAVY DUTY FILTRATION PACKAGE)
Forestry protections kit (Cabin side windows protection grids + Engine bay doors protections) | FAE
Forestry protections kit (Cabin side windows protection grids + Engine bay doors protections)
800 mm steel track pads - single grouser | FAE
800 mm steel track pads - single grouser
Active Power Management Function
800 mm steel track pads - double grouse | FAE
800 mm steel track pads - double grouse
H-frame conversion kit from oscillating to fix style

Available heads

200/U/SONIC - Forestry mulchers for special vehicles (PT-300)
200/U/SONIC
HEAVY DUTY HYDRAULIC MULCHER FOR HIGHER HORSE POWER CARRIERS WITH SONIC TECHNOLOGY
300/U/SONIC - Forestry mulchers for special vehicles (PT-300)
300/U/SONIC
HEAVY DUTY HYDRAULIC MULCHER FOR HIGHER HORSE POWER CARRIERS WITH SONIC TECHNOLOGY
300/SC - Stump cutters for special vehicles (PT-300)
300/SC
HYDRAULIC STUMP CUTTERS FOR HIGHER HORSE POWER CARRIERS
200/S - Forestry tillers for special vehicles (PT-300)
200/S
Universal hydraulic tiller for higher horse power carriers
Dozer Blade - Blade for special vehicles  (PT-175)
DOZER BLADE
BLADE FOR SPECIAL VEHICLES
