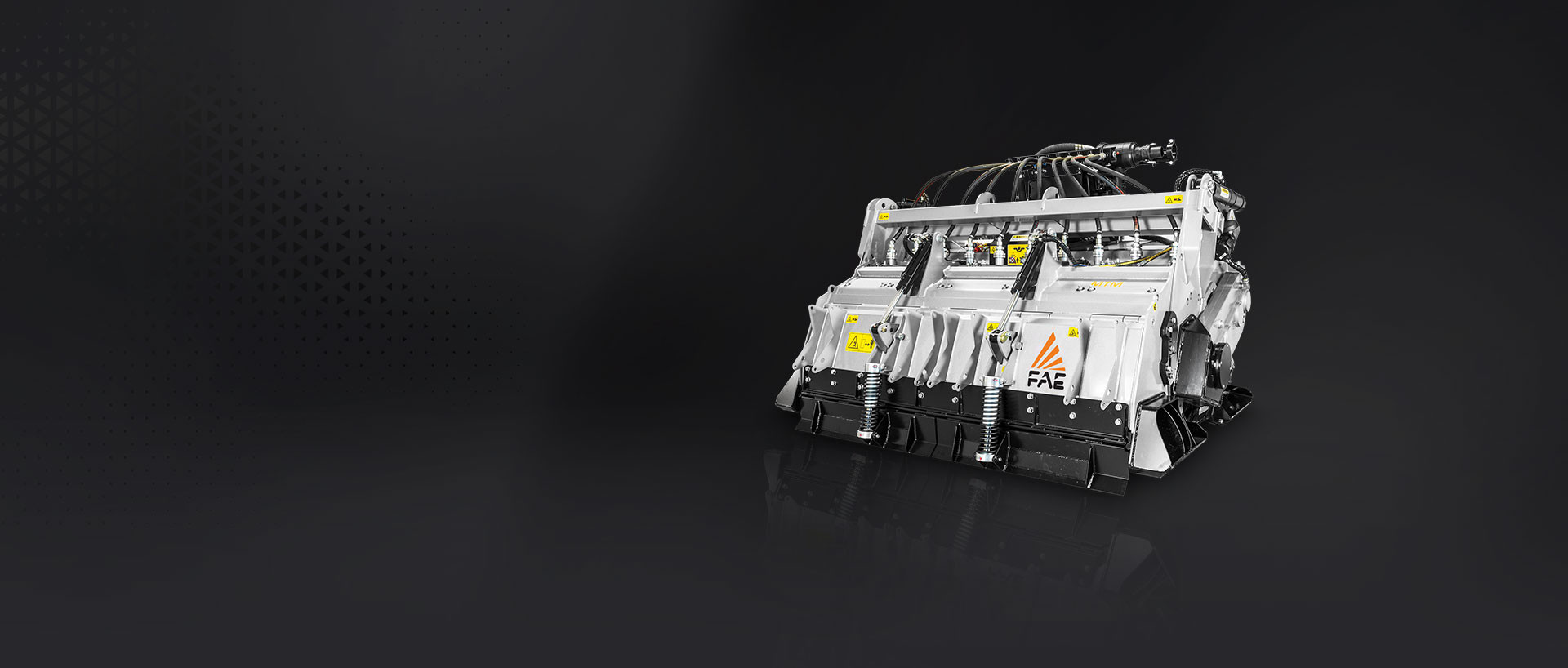

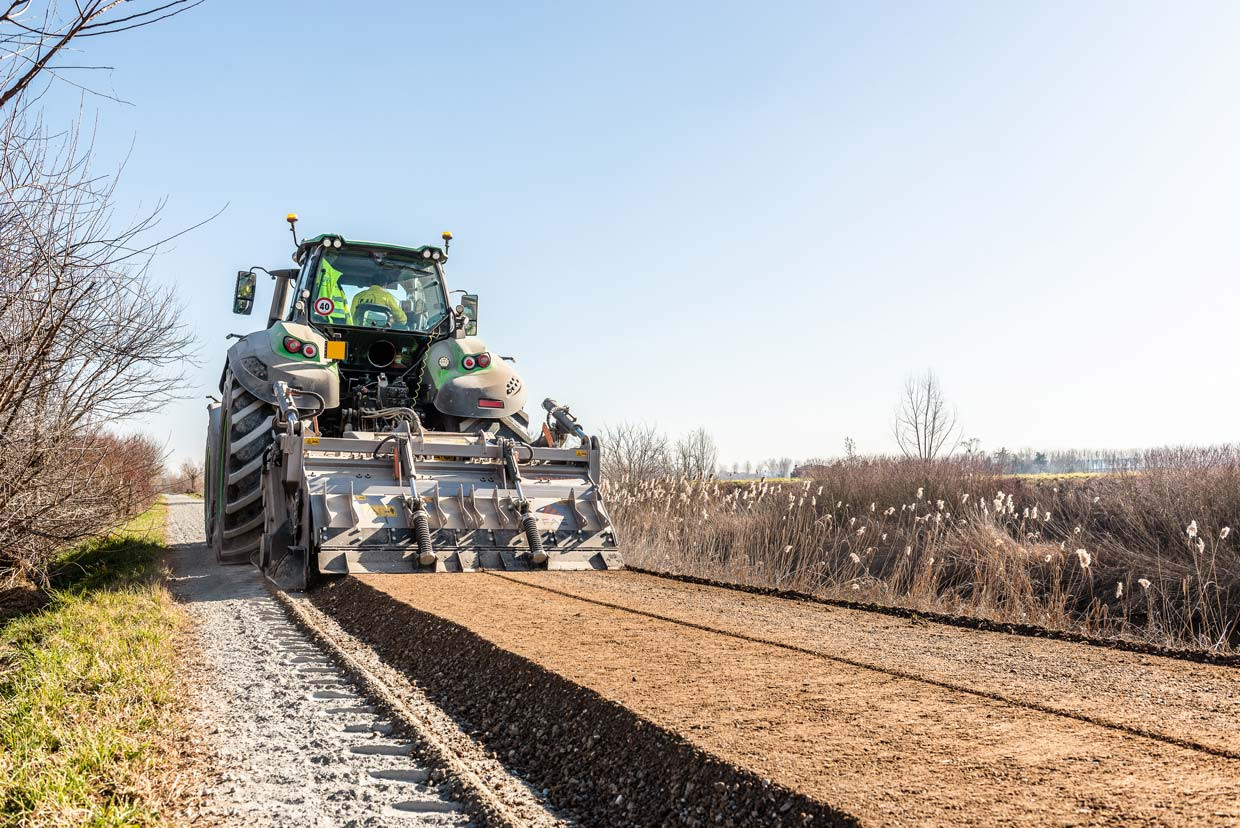

Multitasks for Tractors
MTM
Available in the following versions: MTM, MTM/HP

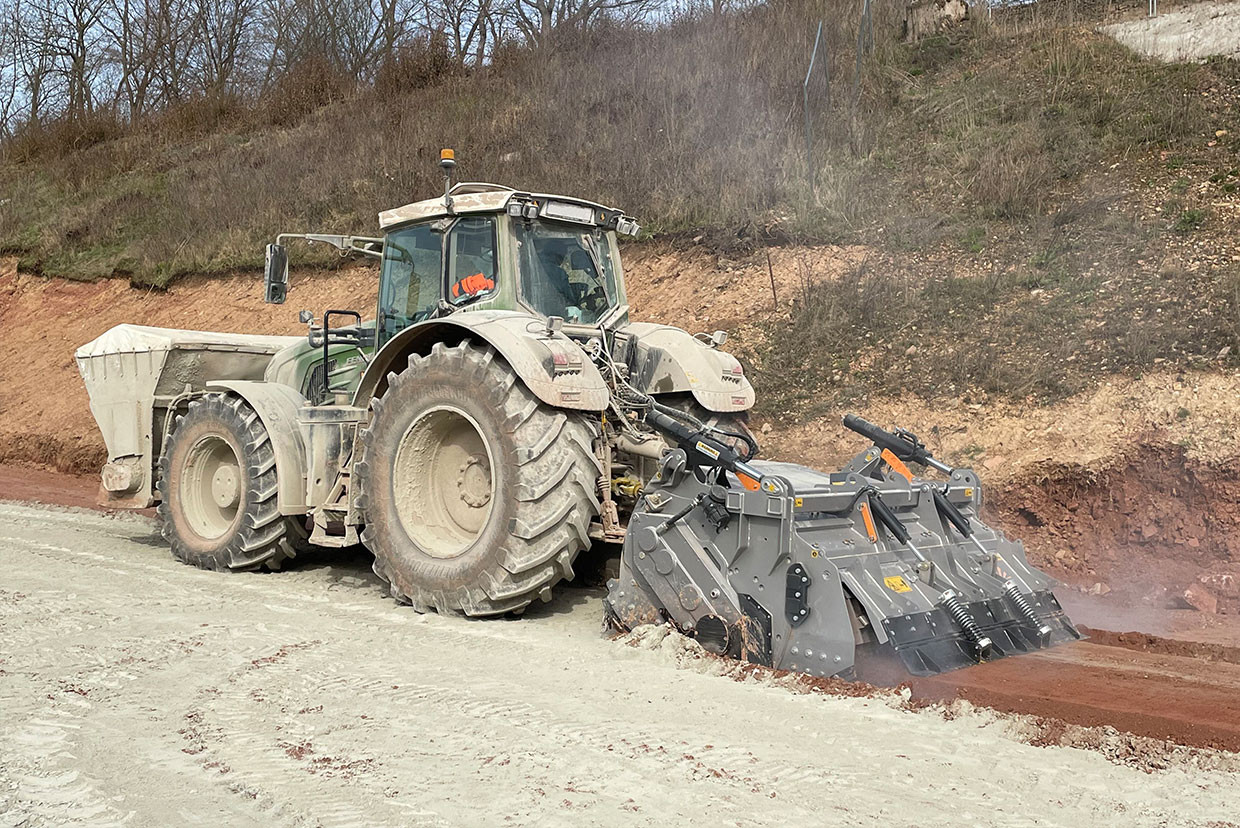

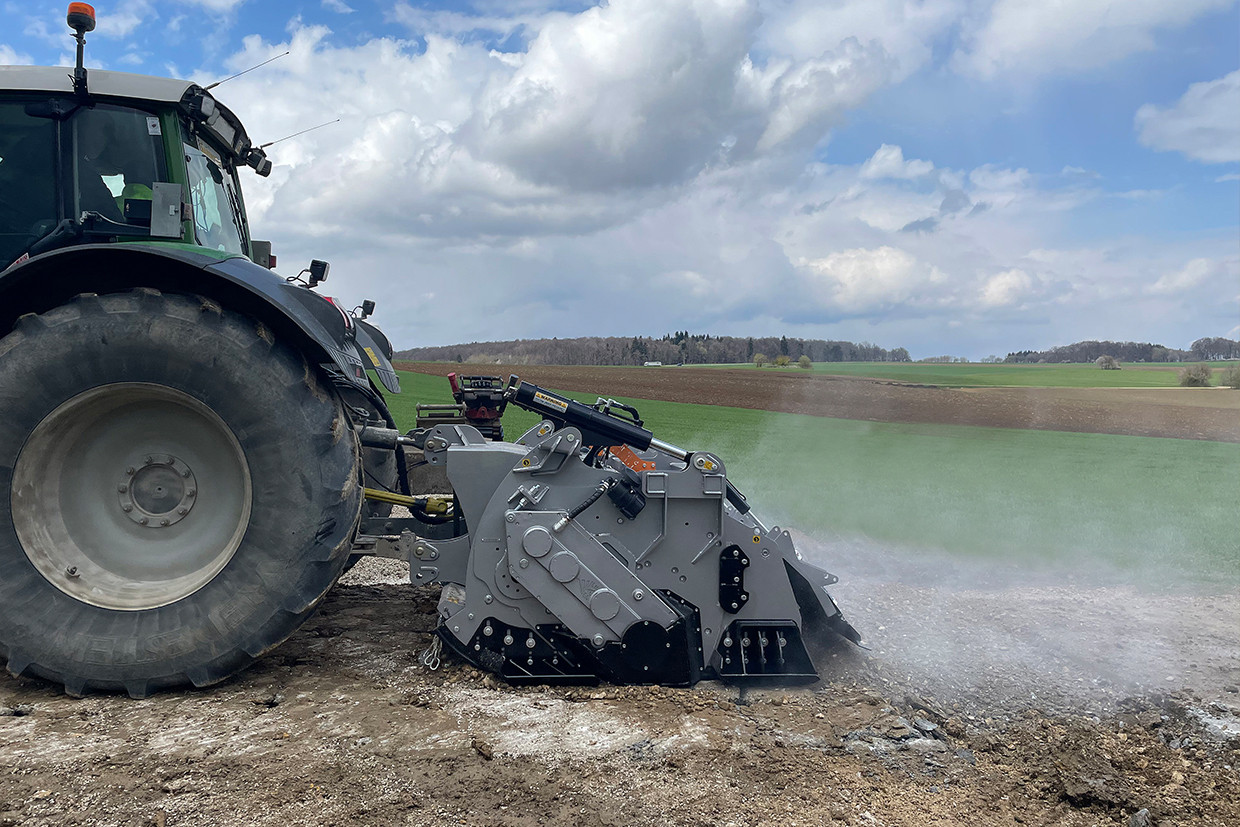

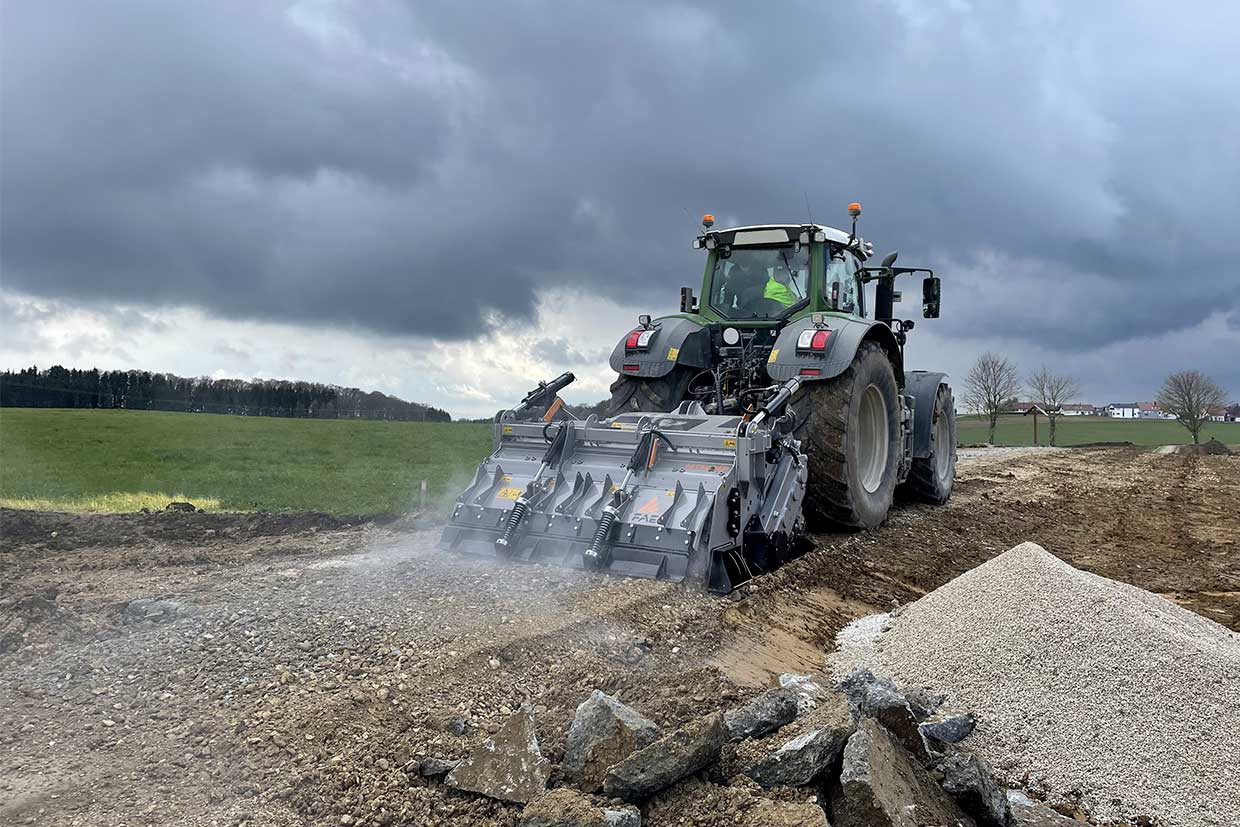

The MTM enables ground stabilization, milling of slabs of rock, crushing of stones, and milling of asphalt, down to a maximum operating depth of 40 cm.

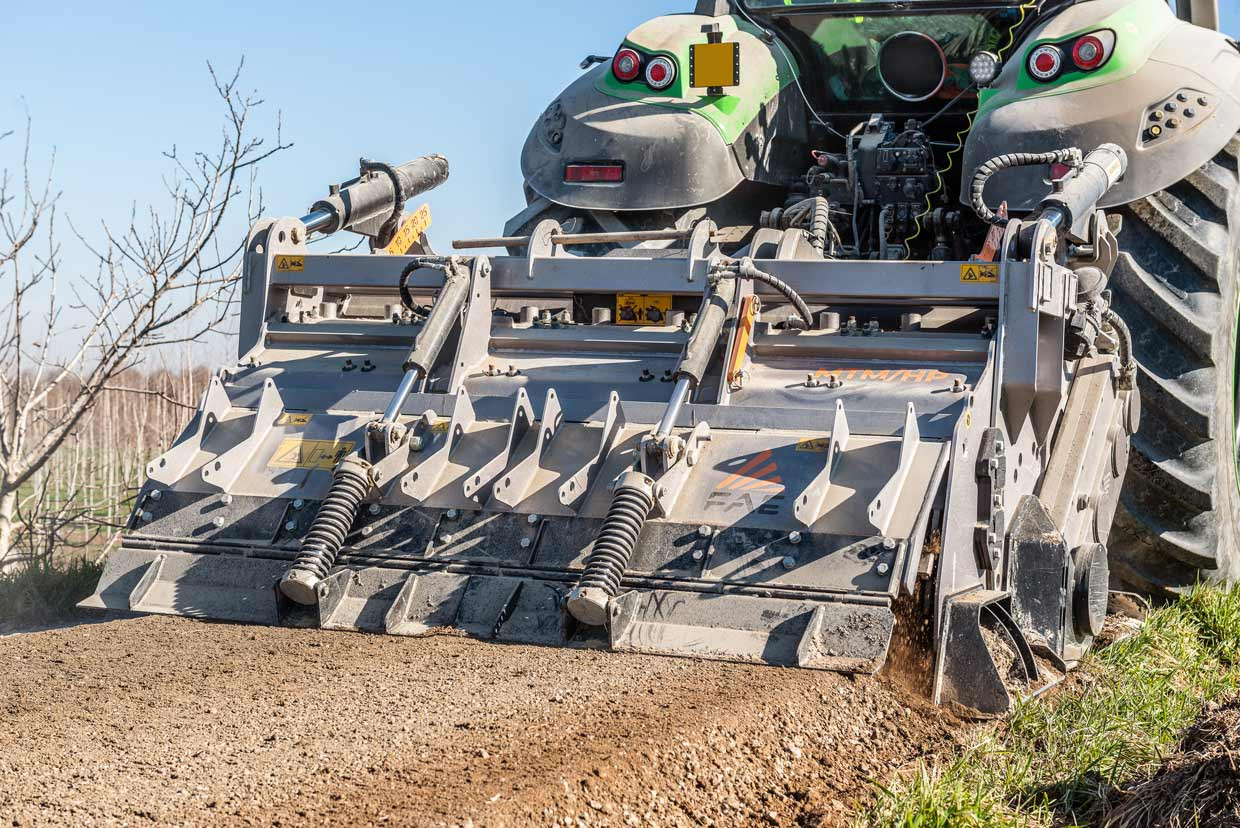

The compact size and excellent maneuverability enable the MTM to work on surfaces which are difficult to reach using self-powered vehicles.
The variable displacement chamber guarantees excellent results in terms of breaking down material.
The volume of the chamber increases based on depth with a reduction in fuel consumption and an increase in operating speed.

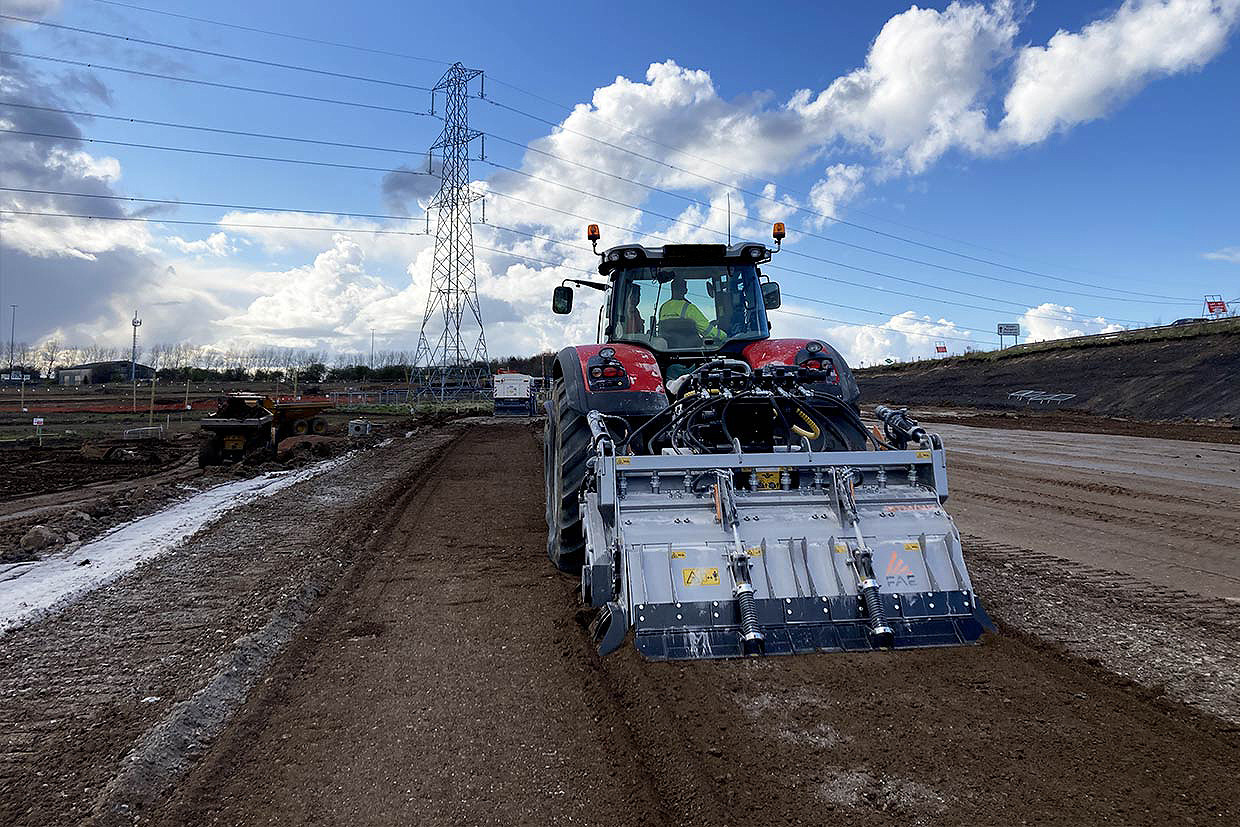

The Hardox® wear-resistant counter blade and grid on the rear hood guarantee the desired granulometry of material processed.

Tractor

from 240 to 360 hp

Working depth

40 cm max

Most important features
Variable displacement chamber

the result is a homogeneously stabilised soil at all working depths

Hydraulic rear Hood with anti-clogging system

for high productivity and lower fuel consumption

INTERCHANGEABLE HARDOX® INTERNAL AND SIDE GUARDS

Standard equipment

    • Hydraulic rear hood
    • Adjustable hood grille
    • Hydraulically adjustable front hood
    • Interchangeable wear-resistant Hardox® plates
    • Enclosed, dust-resistant machine body
    • Variable geometry chamber
    • Adjustable Hardox® counter blade
    • Interchangeable protection chains
    • Freewheel gearbox
    • Side PTO shafts with friction clutches
    • Transmission with side gearbox
    • PTO shaft support for machine at rest
    • Central PTO shaft with cam clutch (MTM)
    • Adjustable skids
    • Dozing blades with spring system
    • Interchangeable forged steel rotor shafts
    • Rotor with teeth G/3
    • Wear-resistant side plates
    • Central PTO shaft without cam clutch (MTM/HP)

Original FAE tools

Unmatched performance
Pick R/65 | FAE
Pick R/65
standard
Ideal for:
Peaty soil
Low rock content
Adaptor G/3 with pick R/44
optional
Tooth G/3| FAE
Tooth G/3
standard
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Tooth G/3/HD | FAE
Tooth G/3/HD
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Pick R/65/HD | FAE
Pick R/65/HD
optional
Ideal for:
Peaty soil
Low rock content
Paved roads
Stone slabs

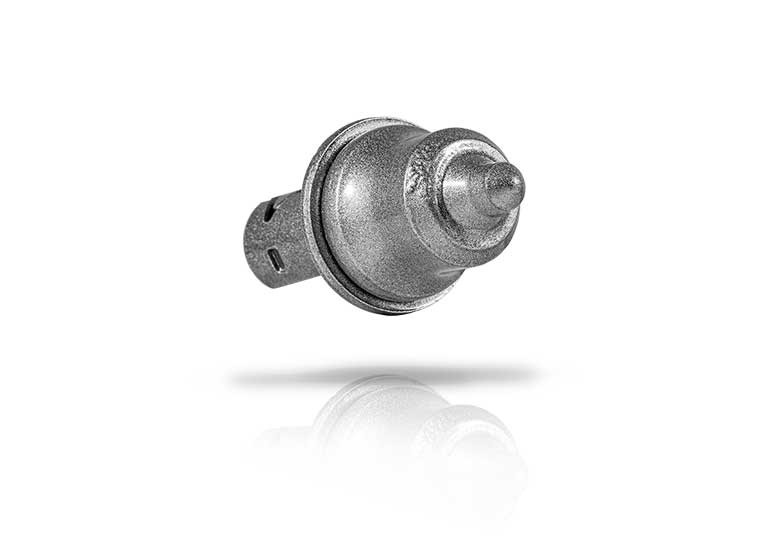

Pick R/44 | FAE
Pick R/44
optional
Ideal for:
Peaty soil
Paved roads
Paved roads
Side scraper STC/FP | FAE
Tooth STC/FP (1 screw)
standard
Side scraper
Side scraper STC/3/FP | FAE
Tooth STC/3/FP
standard
Side scraper

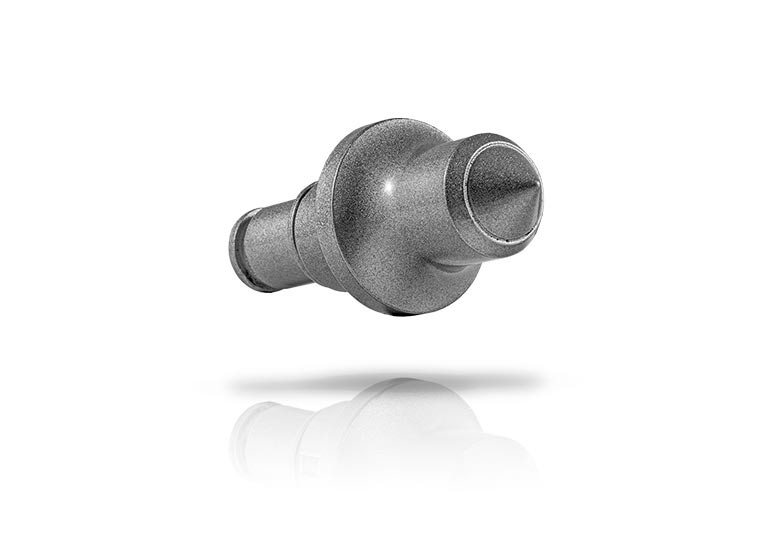

Side scraper R/65/HD | FAE
Pick R/65/HD
standard
Side scraper

Options

Extended 3 point linkage | FAE
Extended 3-point linkage
Multiple tooth options | FAE
Multiple tooth options
Water spray system WSS High Flow | FAE
High Flow WSS - water spray system
Hydraulic top link cylinder | FAE
Hydraulic top link cylinder
FCS - water spray system | FAE
FCS - water spray system
Rotor with picks R/65 | FAE
Rotor with picks R/65
Central PTO shaft yoke (MTM)
Technology - WATER SPRAY SYSTEM | FAE
Displacement Chamber | FAE
Full Control System | FAE
Technology
Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Find out more >

Technology
Variable geometry chamber

This technological solution, which is one of a kind in the industry, allows the ground to be penetrated with the rotor alone. The mobile rotor can be hydraulically adjusted from the tractor cabin. The chamber has a variable volume—the greater the working depth, the greater the volume of the chamber.

Compared to a machine that plunges the frame into the ground, the variable geometry chamber reduces traction stress, which decreases fuel consumption and increases operating speed, saving time as a result.

Find out more >

Technology
Full Control System

The Full Control System is a top-of-the-line system with electronically adjusted nozzles, a self-priming hydraulic pump, proportional valves to adjust the water flow and a control display unit for settings, diagnostics and the machine’s operating status.

Find out more >

Technology
Reduction gear transmission

Reduction gears are an alternative to traditional belt or chain transmission systems. Because the technology is so compact, it provides better power transfer to the rotor and requires less power for traction. A reduction gear transmission provides optimal stability with less maintenance — the perfect solution for handling very high torque.

Find out more >
