Remote controlled tracked carriers
RCU-55

THE RCU RANGE WILL BE AVAILABLE IN 2023 Compact, remote controlled tracked carrier.

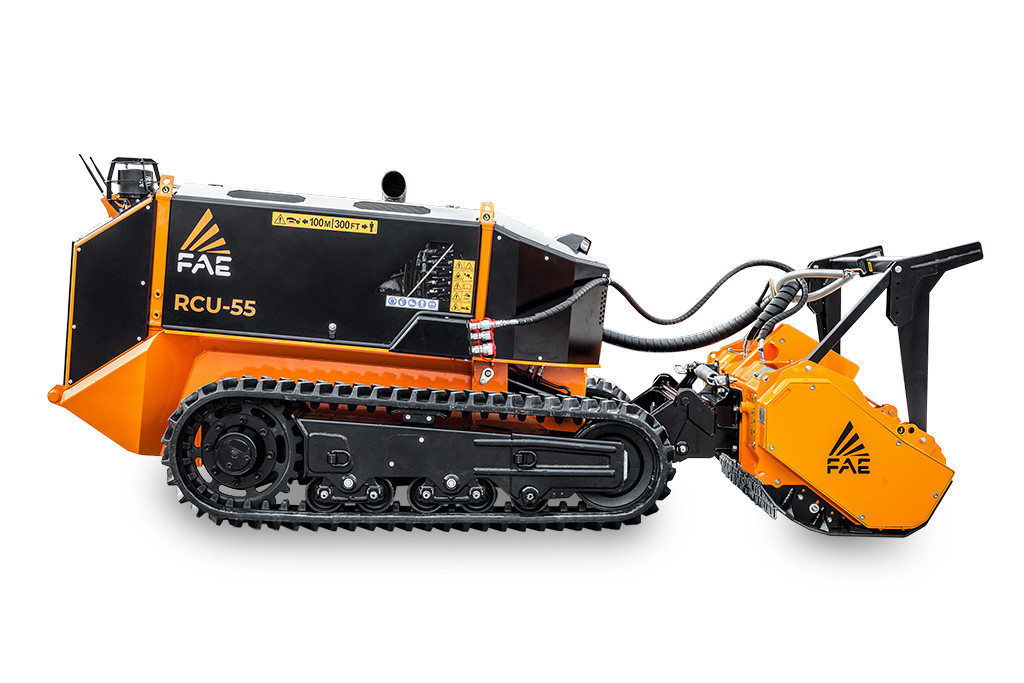

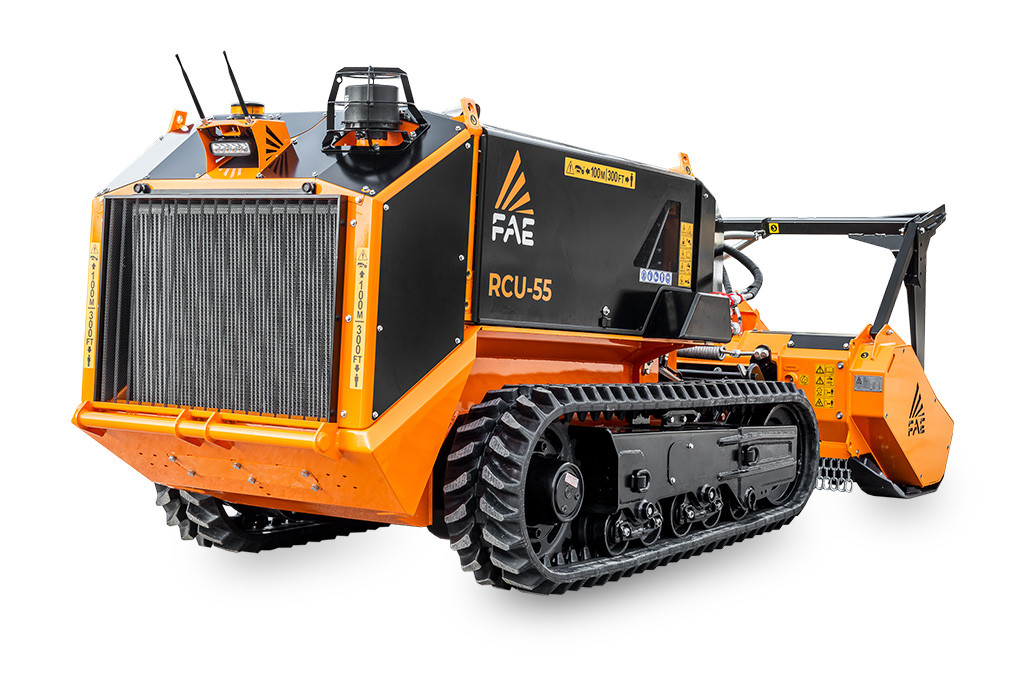

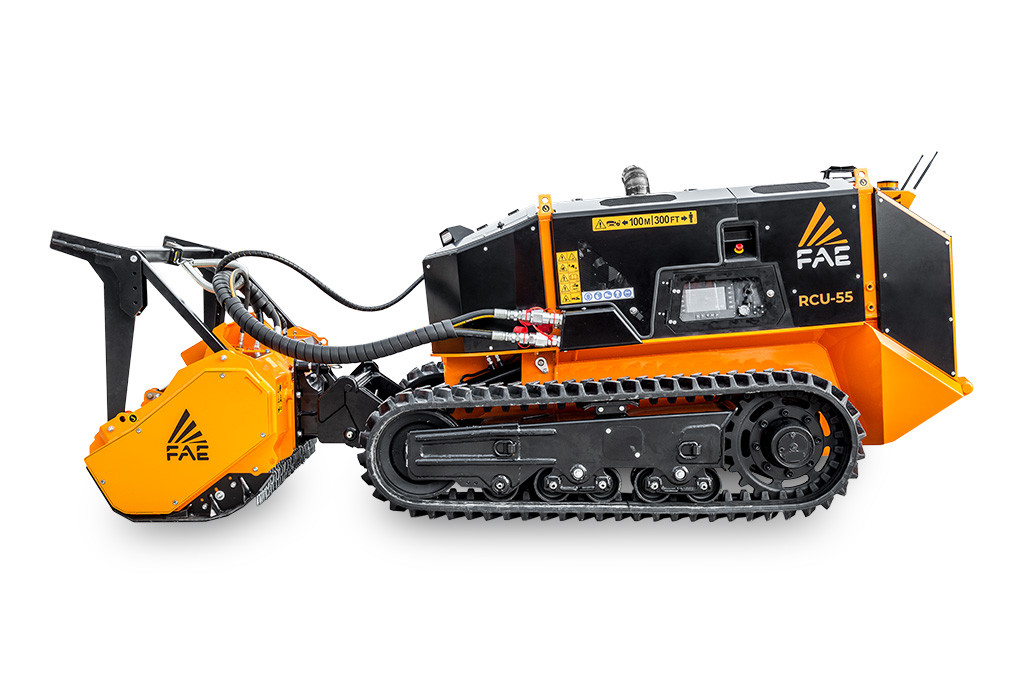

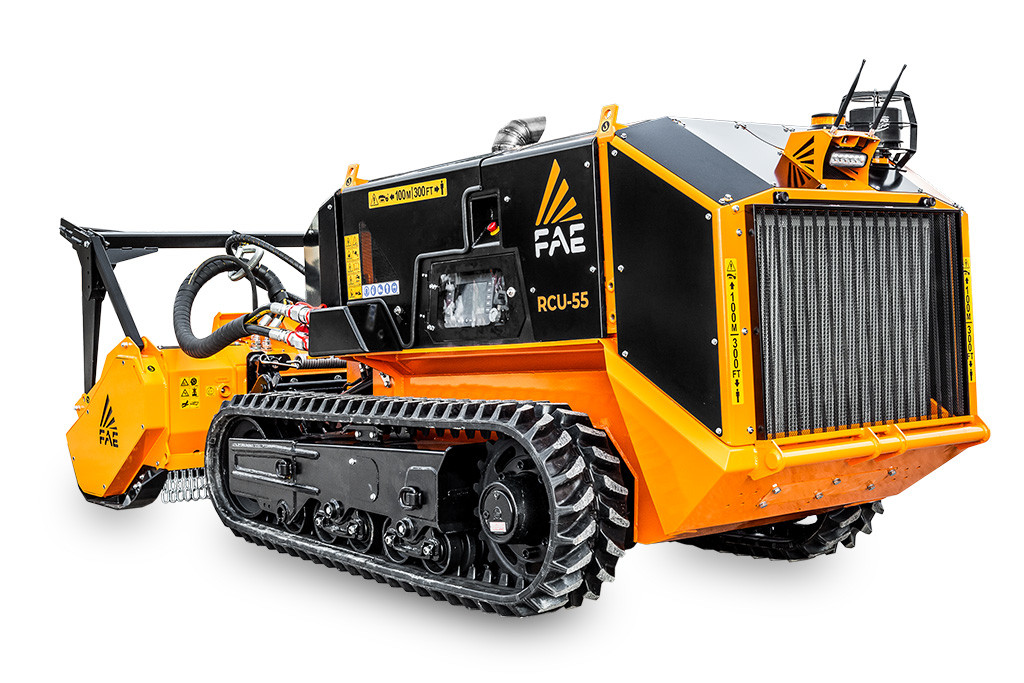

The RCU-55 is FAE's compact tracked carrier that can mulch vegetation up to 12 cm in diameter with the BL1/RCU mulcher  head, and small shrubs and vegetation up to 5 cm in diameter with the PML/RCU mulcher head. It is equipped with a 56-hp Kohler engine. The RCU-55 can work on steep slopes up to 55°.  The heavy-duty undercarriage features a hydraulic variable track system with independent undercarriage frames for maximum stability on steep terrain. The high-profile rubber tracks  combined with the undercarriage’s  triple-flange style oscillating rollers system provides unbeatable traction. The dual hydrostatic transmission makes it easier to manage traction and the attachment.

Shredding diameter

Ø 12 cm max

Power

56 hp

Most important features
ROBUST

Structural steel frame. Integrated and protected components.

AGILE

Works on sloping terrain up to 55°. Full counter-rotating.

BITE LIMITER

Available on the BL1/RCU forestry mulcher with Bite Limiter technology.

HIGH-TECH

Integrated system of electronic control units and sensors for maximum performance at all times.

PROFESSIONAL

The result of FAE’s experience designing PT and Demining tracked carriers.

  • Compact, powerful, low noise / vibration engine for RCU-55 FAE, fuel efficient and compliant with the most stringent emissions regulations
    Compact and powerful motor

    Compact and powerful 56-hp Kohler Common Rail electronic fuel injection engine. Oil pan co-designed and tested by FAE and Kohler to ensure correct lubrication, even on slopes up to 55°. Low-noise and low-vibration. Fuel efficient and compliant with the strictest emissions standards.

  • Hydrostatic transmission of the RCU-55 FAE that guarantees high performance and reliability over time, as well as a simple and intuitive mode of use
    Efficient and reliable transmission

    Electronically controlled piston pumps combined with a dedicated electronic control unit provide an integrated technological system. The result is high performance and long-term reliability, as well as simple and intuitive operation.

  • RCU-55 hydraulic variable track undercarriage capable of operating even in the most difficult conditions
    Heavy duty undercarriage

    Hydraulic variable track system with independent undercarriage frames and an automatic tensioning system built to work in the toughest conditions, thanks to a rubber tracks structure, oscillating roller system and triple-flange idlers.

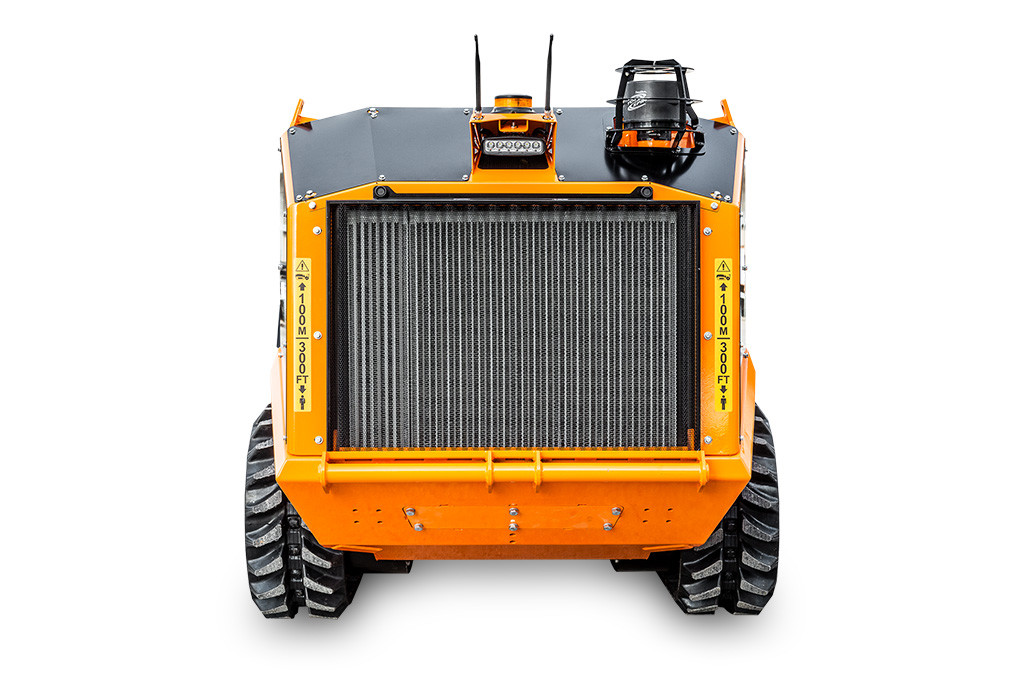

  • The combined aluminum radiator of the RCU-55 FAE guarantees maximum performance and reduces maintenance
    Self-cleaning radiator

    The aluminum radiator combined with anti-clogging fins is paired with a proportional and reversible fan to keep the radiator clean and efficient at all times, consistently maintaining peak performance and reducing the need for upkeep.

  • Ergonomic radio remote control for RCU-55 FAE radio-controlled vehicle with large 3.5 "display to better manage all vehicle and cylinder head functions
    Professional remote control

    The ergonomic remote control with a large 3.5” display makes it easy to manage all vehicle and attchment functions. Customizable function keys. 2.4 GHz transmission frequency.

Standard equipment

    • Engine KOHLER KDI 1903 turbocharged and after-cooled
    • After-treatment system DOC (RCU-75 TIER 4F) & After-treatment system DOC/DPF (RCU-75 STAGE V)
    • Hydrostatic tracks transmission
    • Hydrostatic attachments transmission
    • Auxiliary hydraulic circuit for attachments
    • Basic Load Control function
    • Tilting attachment plate with quick coupling
    • Independent hydraulic variable track system
    • High profile rubber tracks and bogie rollers system
    • Combined aluminum cooler anti-clogging fins style
    • Proportional and reversible fan system with hydraulic control
    • Ergonomic joysticks controls
    • LCD color 3.5” display on remote control unit
    • Double remote-control batteries and on board battery charger
    • LCD color 7” display on board
    • LED working light
    • Floating function

Available heads

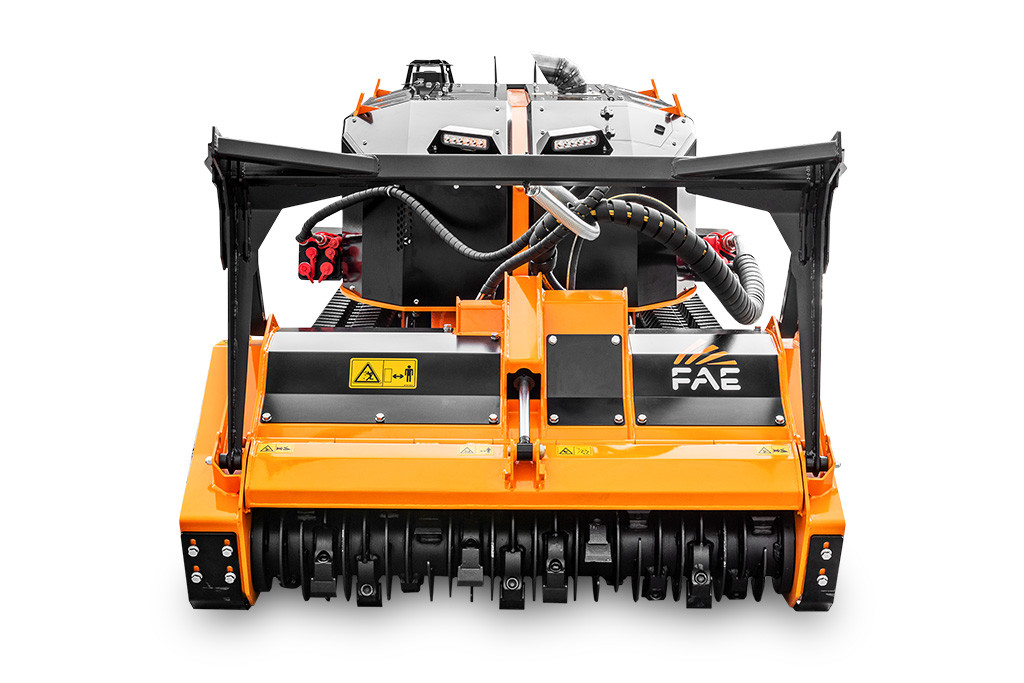

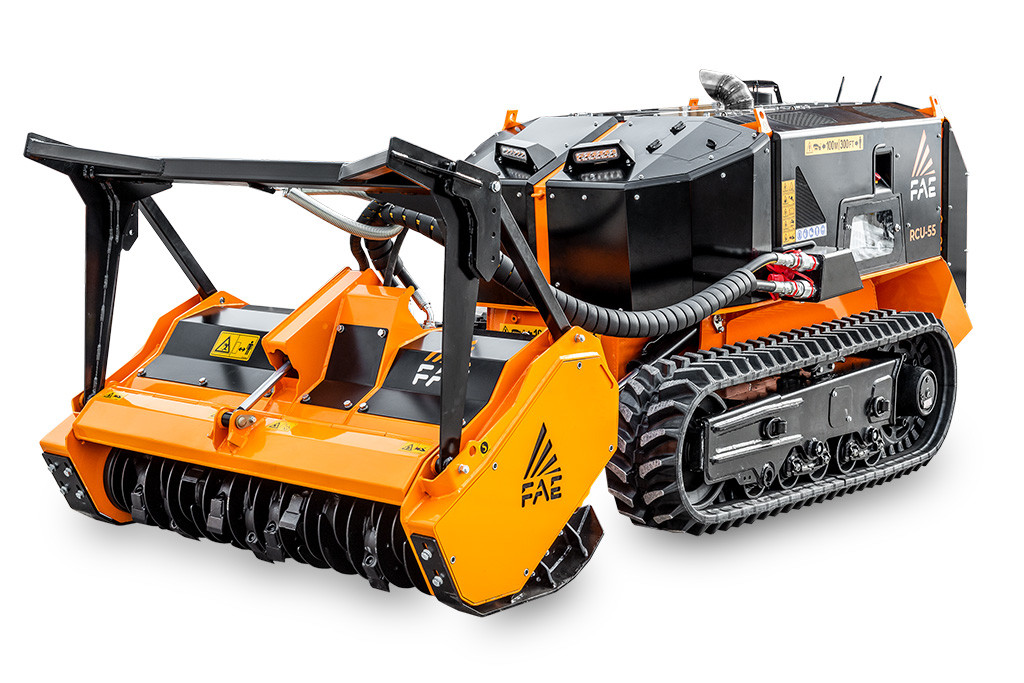

BL1/RCU - Forestry mulcher with Bite Limiter technology
BL1/RCU
Forestry mulcher for RCU-55 with Bite Limiter technology.
PML/RCU - Forestry mulcher with swinging hammers
PML/RCU
Forestry mulcher for RCU-55 with swinging hammers
