Multitasks for Tractors
MTL

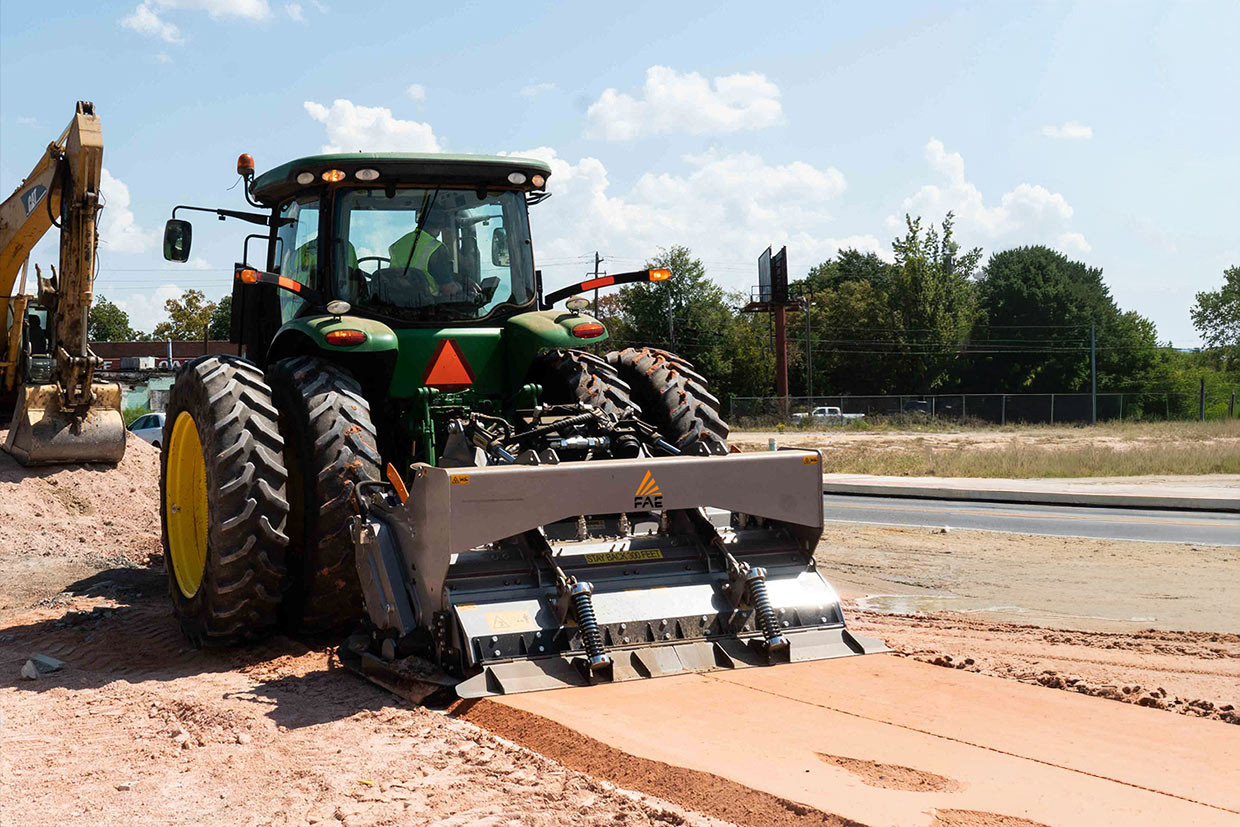

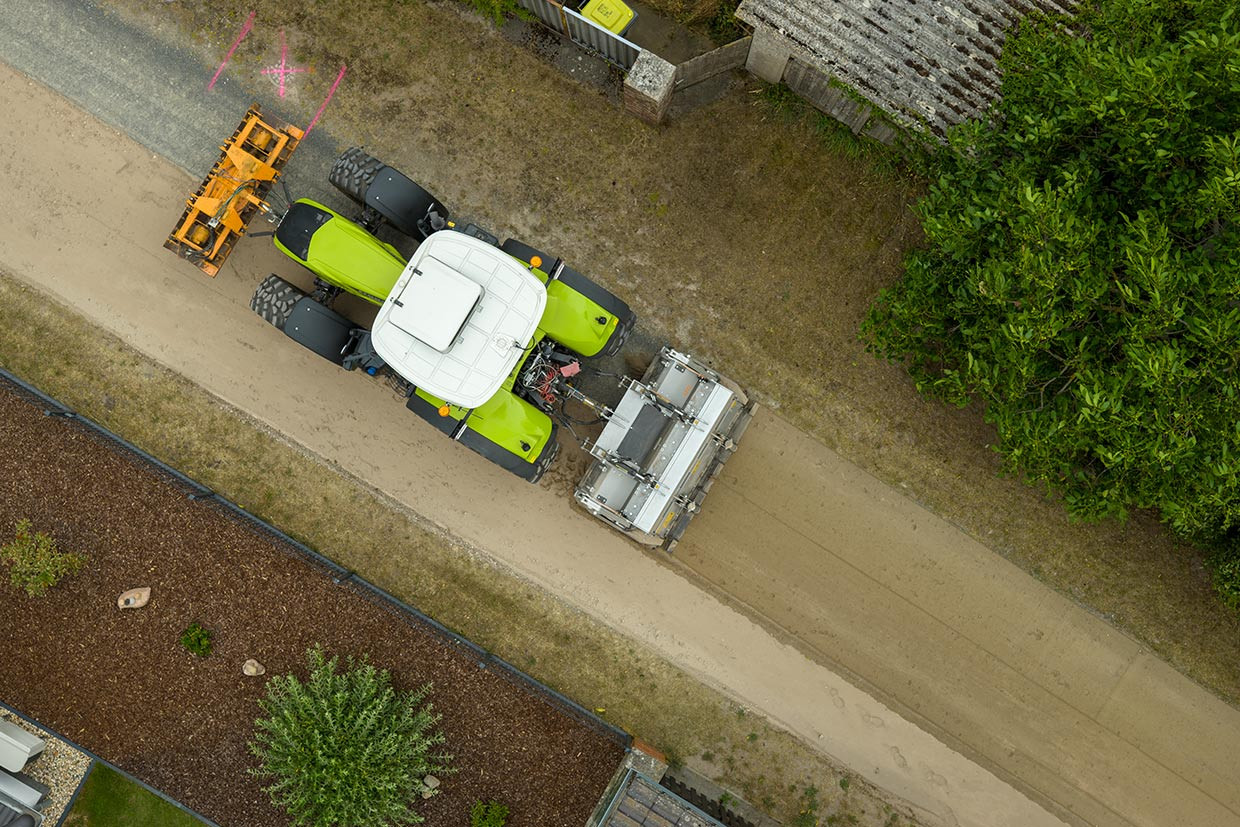

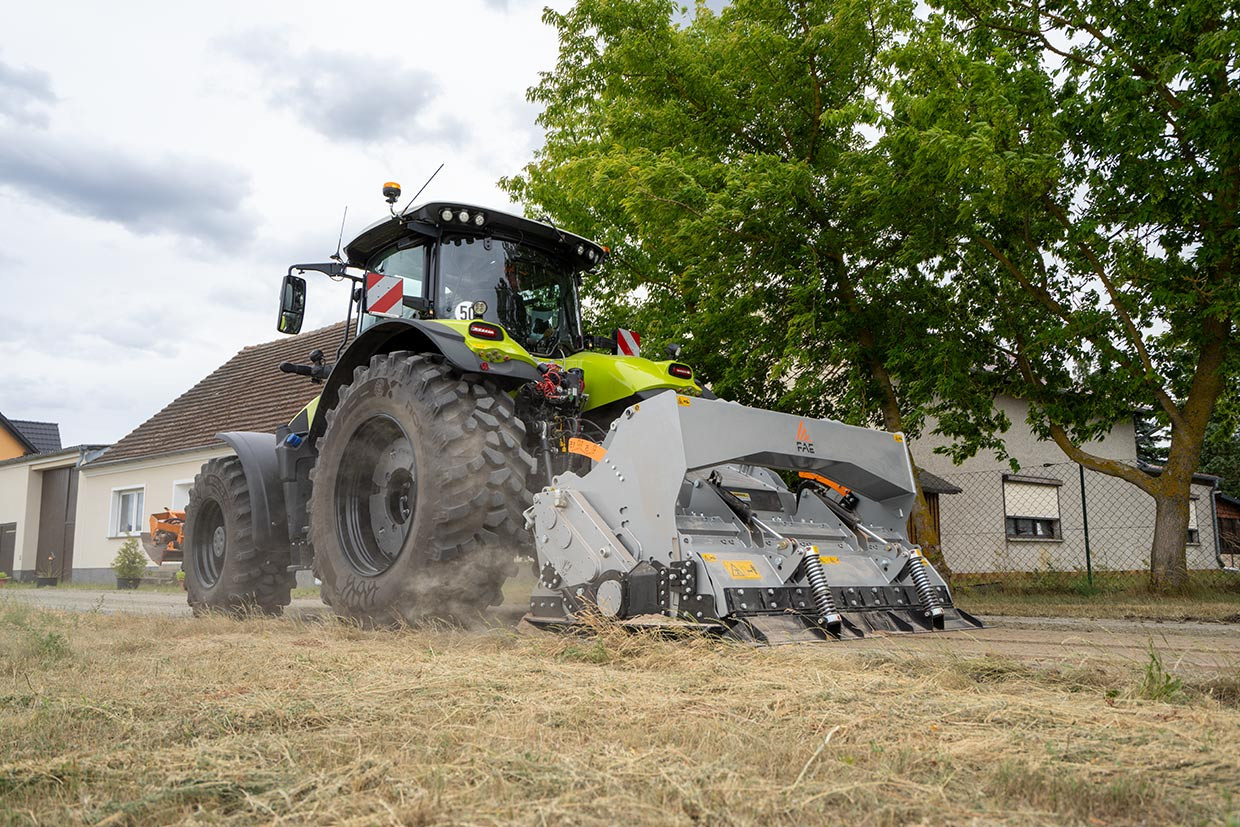

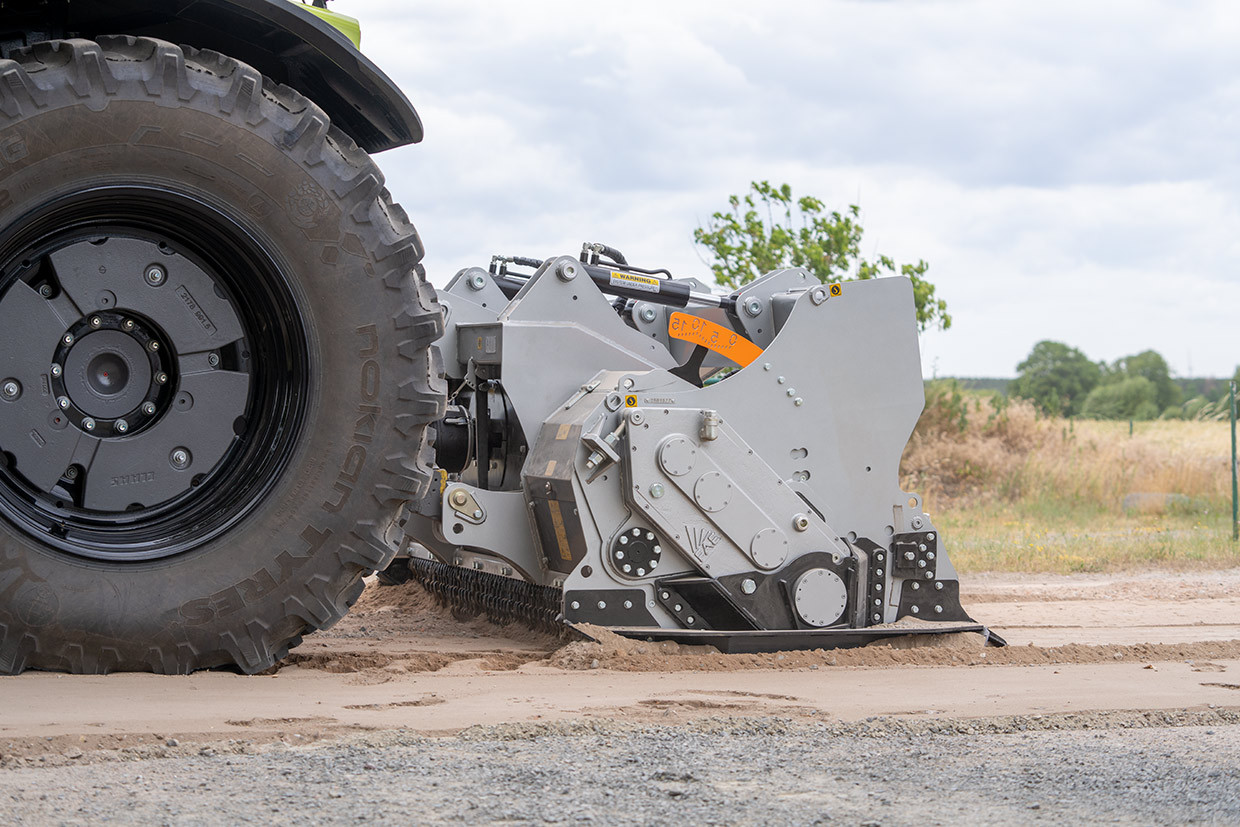

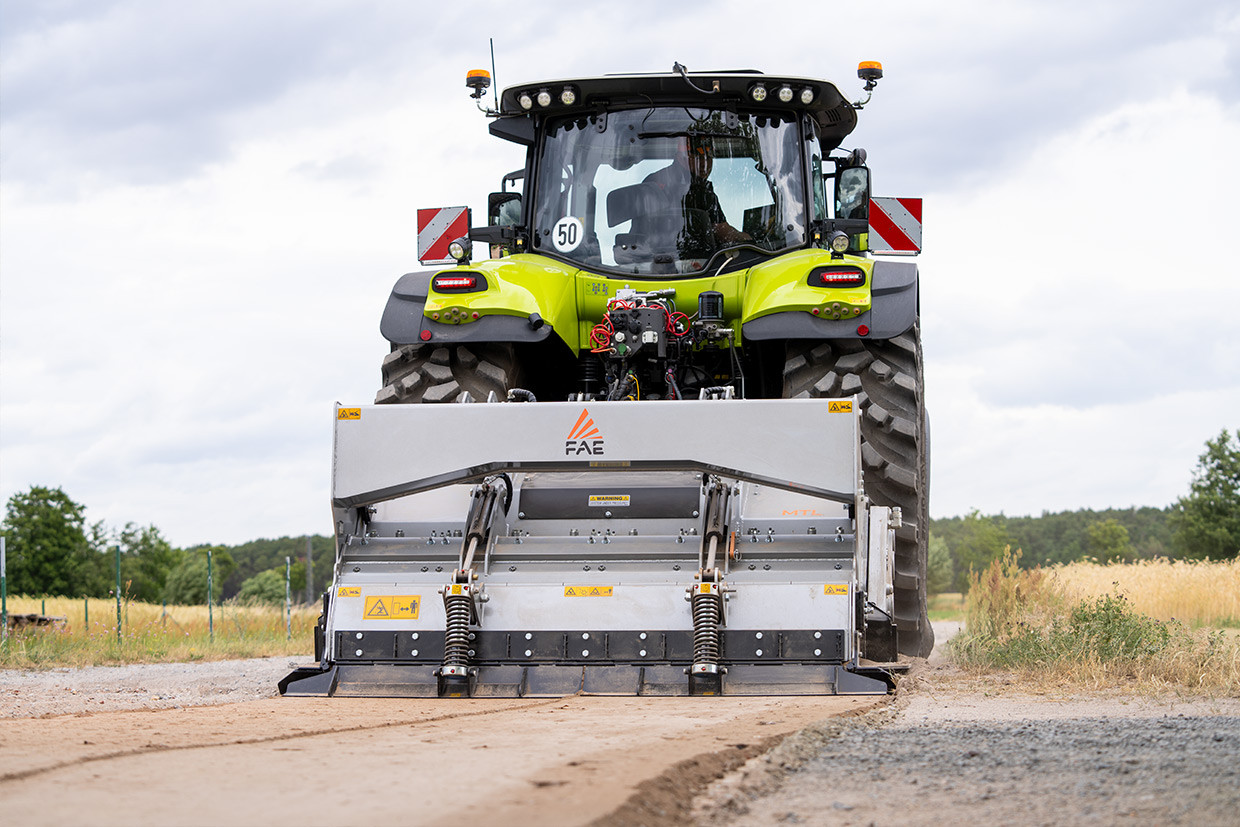

FAE multi-function head for tractors from 140 to 240 hp.

The MTL enables ground stabilization, milling of asphalt and slabs of rock, and crushing of stones, down to a maximum operating depth of 11 in.
The variable displacement chamber, adjustable grid on the hood and adjustable Hardox counter blade enable constantly optimal crushing results. Internal protection plates on the frame, bolted both centrally and laterally, ensure the head is robust and reliable.
The handy depth indicator allows you to check the operating level directly from the cab.
The central gearbox system with universaljoint alignment system is designed to be compatible with a wide range of tractors on the market.

Engine

from 140 to 240 hp

Working depth

11 in max

Most important features
Variable displacement chamber

the result is a homogeneously stabilised soil at all working depths

Standard equipment

    • Hydraulic rear hood
    • Bolted grid on rear hood
    • Interchangeable inner antiwear plates in Hardox®
    • Enclosed/anti dust machine body
    • Variable displacement chamber
    • Inside lateral protection
    • Bolted on protection chains
    • Adjustable Hardox® counter-blade
    • Transmission with side gearbox
    • Gearbox with freewheel
    • Friction clutches
    • PTO shaft with cam clutch
    • Bolt-on rotor shafts (in forged steel)
    • Dozing blades with spring system

Teeth

Designed to be incomparable
Teeth R65 | FAE
Teeth R65
standard
Ideal for:
Peaty soil
Low rock content
Teeth G/3 | FAE
Teeth G/3
standard
Ideal for:
Buried stumps
Peaty soil
Low rock content
Paved roads
Teeth G/3 HD | FAE
Teeth G/3 HD
optional
Ideal for:
Buried stumps
Peaty soil
Bituminous road
Stone crushing
Teeth R65 HD | FAE
Teeth R/HD 65
optional
Ideal for:
Peaty soil
Low rock content
Paved roads
Stone slabs
Teeth R44 | FAE
Teeth R44
optional
Ideal for:
Peaty soil
Paved roads
Paved roads
Side scraper STC/3/FP | FAE
Side scraper STC/3/FP
standard
Side scraper R/HD 65 | FAE
Side scraper R/HD 65
standard

Options

Multiple tooth options | FAE
Multiple tooth options
Hydraulic top link | FAE
Hydraulic top link
Water spray system WSS Basic | FAE
Water spray system WSS Basic
Water spray system WSS High Flow | FAE
Water spray system WSS High Flow
Technology - WATER SPRAY SYSTEM | FAE
Displacement Chamber | FAE
Technology
WATER SPRAY SYSTEM

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Technology
Displacement Chamber

This technological solution, which is one of a kind in the industry, allows the ground to be penetrated with the rotor alone. The mobile rotor can be hydraulically adjusted from the tractor cabin. The chamber has a variable volume—the greater the working depth, the greater the volume of the chamber.

Compared to a machine that plunges the frame into the ground, the variable geometry chamber reduces traction stress, which decreases fuel consumption and increases operating speed, saving time as a result.
