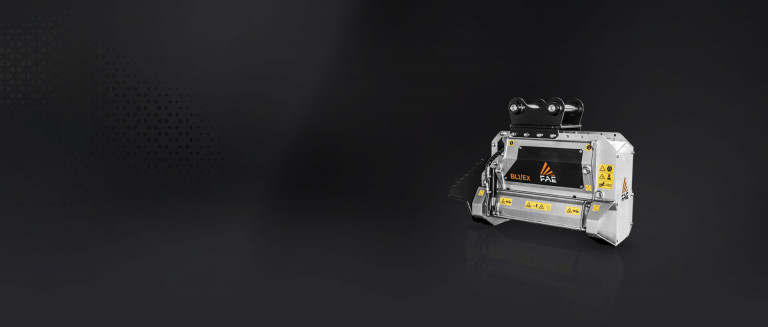

Mulchers for Excavators
BL1/EX - BL1/EX/VT

Forestry mulcher with Bite Limiter technology.

FAE introduces a new line of professional mulchers for excavators equipped with Bite Limiter technology.
Special steel limiter rings limit the depth of blade action, reducing the demand for power, guaranteeing speed and exceptional performance.
The BL1/EX - BL1/EX/VT (for 4-7.5 t excavators) has a 800 mm working width and can mulch logs up to 12 cm in diameter.
The piston engine (with manually controlled variable displacement) makes it easy to use this mulcher on different excavators with different oil flow rates.
The BL1/ EX-BL1/EX/VT has a rotor equipped with a heat-treated forged steel tooth holder, together with Type Mini BL blades.
This light, compact mulcher is easy to maneuver and perfect for various types of forestry work.

Excavator weight

from 4 to 7,5 t

Shredding diameter

Ø 12 cm max

Flow rate

from 50 to 140 L/min

Most important features
Bite Limiter rotor

exceptional speed and performance with lower power requirement

Standard equipment

    • Enclosed, dust-resistant machine body
    • Motor enclosed in the frame
    • Bulkhead for hydraulic connections
    • Transmission with belts
    • 55/38cc variable torque hydraulic piston motor (VT)
    • 17/34cc variable manual displacement hydraulic piston motor with relief and anticavitation valve (BL1/EX)
    • Bite Limiter Rotor
    • Flow control system valve
    • Safety and anticavitation valve
    • Front hood with mechanical adjustment
    • Dedicated rear hood (deflector)

Original FAE tools

Unmatched performance
Blade MINI/BL | FAE
Blade MINI/BL
standard
Ideal for:
Hardwood trees
Softwood trees
Exposed stumps
Bushes and branches
Tooth C/3/MINI | FAE
Tooth C/3/MINI
optional
Ideal for:
Hardwood trees
Exposed stumps
Bushes and branches

Options

Multiple tooth options | FAE
Multiple tooth options
Customized setting hydraulic motor | FAE
Customized setting hydraulic motor
Hydraulic front hood for excavator AUX line | FAE
Hydraulic front hood for excavator AUX line
Hydraulic front trap door | FAE
Hydraulic front trap door
Front fixed thumb bracked| FAE
Front fixed thumb bracked
Customized attachment bracket with pins | FAE
Customized attachment bracket with pins
Diverter valve (plug in and play) | FAE
Diverter valve (plug in and play)
VT (Variable Torque) piston motor | FAE
Technology - Bite Limiter rotor | FAE
Technology
VT (Variable Torque) piston motor

The VT (Variable Torque) piston motor significantly improves mulcher performance, increasing mulching torque when an extra boost of power is needed and minimizing the conditions for rotor stalling. The VT motor assists the operator with mulching, allowing for exceptional performance.

Find out more >

Technology
Bite Limiter rotor

The experience of the FAE Group has given rise to a new line of professional mulchers for excavators equipped with Bite Limiter technology.

The Bite Limiter rotor features special profiles in Hardox wear-resistant steel, guaranteeing an optimal cutting depth from the blades (MINI BL, BL, BL MAX).

This reduces the demand for power and facilitates a consistent working speed, leading to excellent performance when mulching any type of wood. The Bite Limiter also reduces the likelihood of rotor stalling and optimizes fuel consumption.

Find out more >
