Fixed tooth road planer for skid steers up to 135 hp.

Road planers for skid steers

RPM/SSL

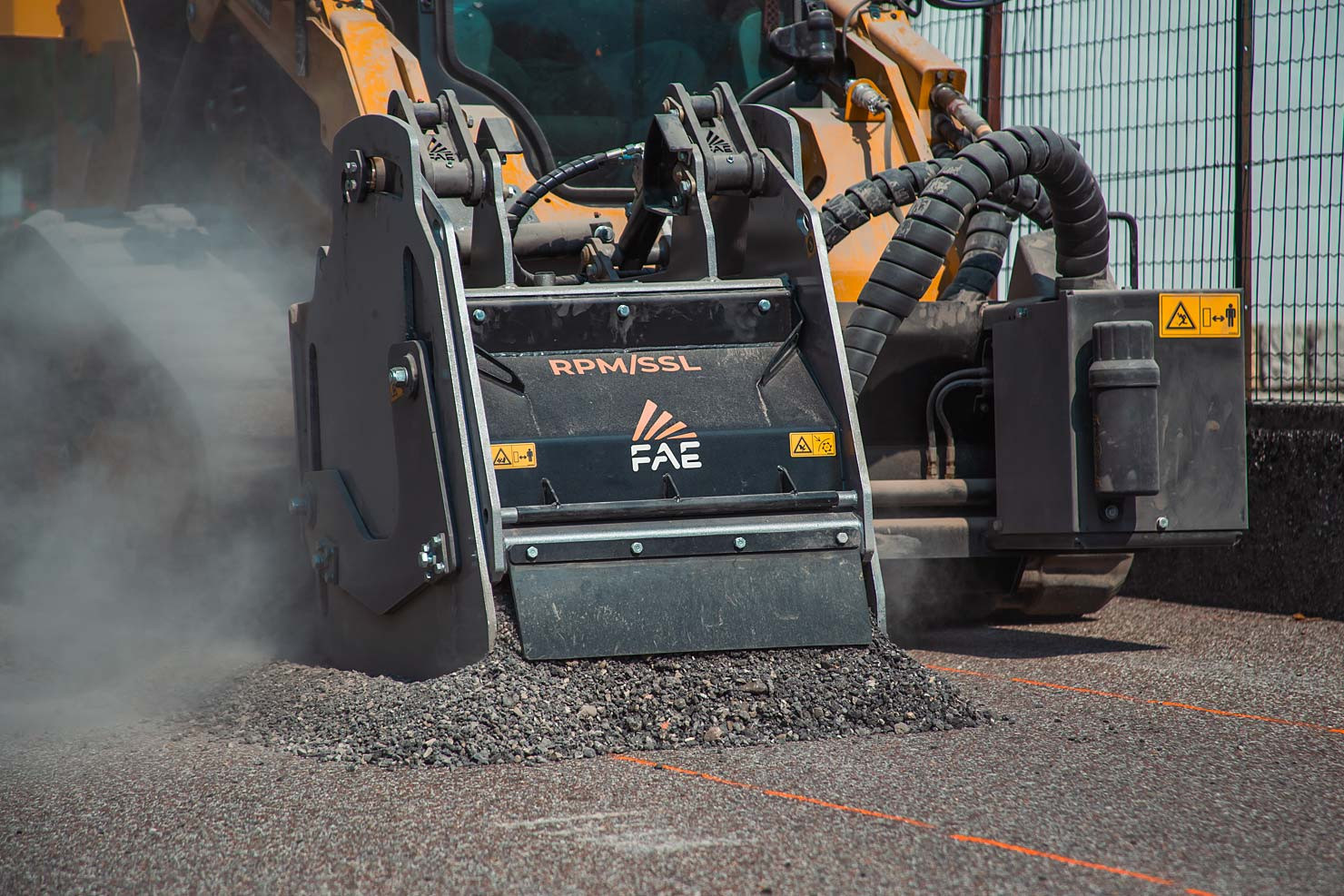

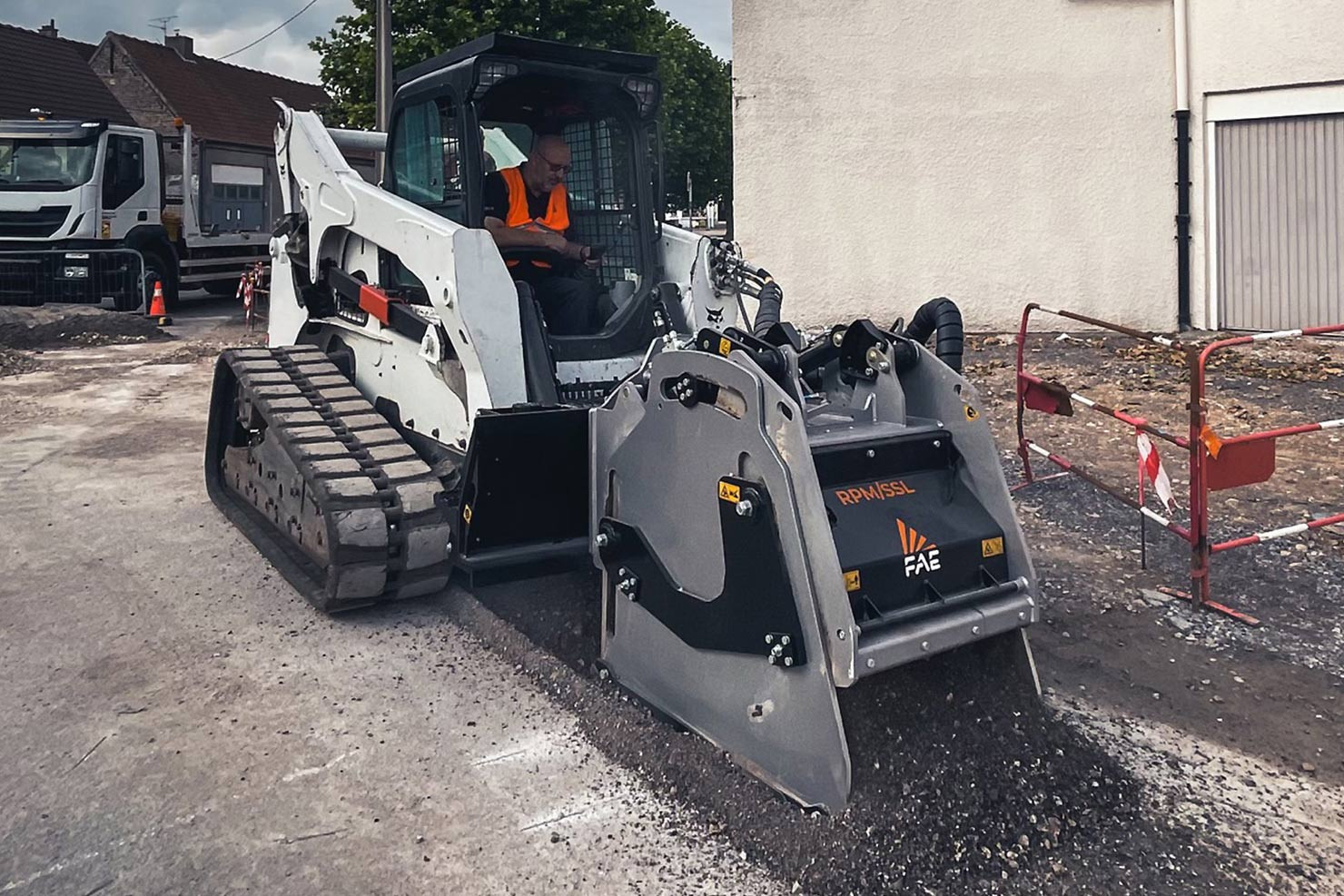

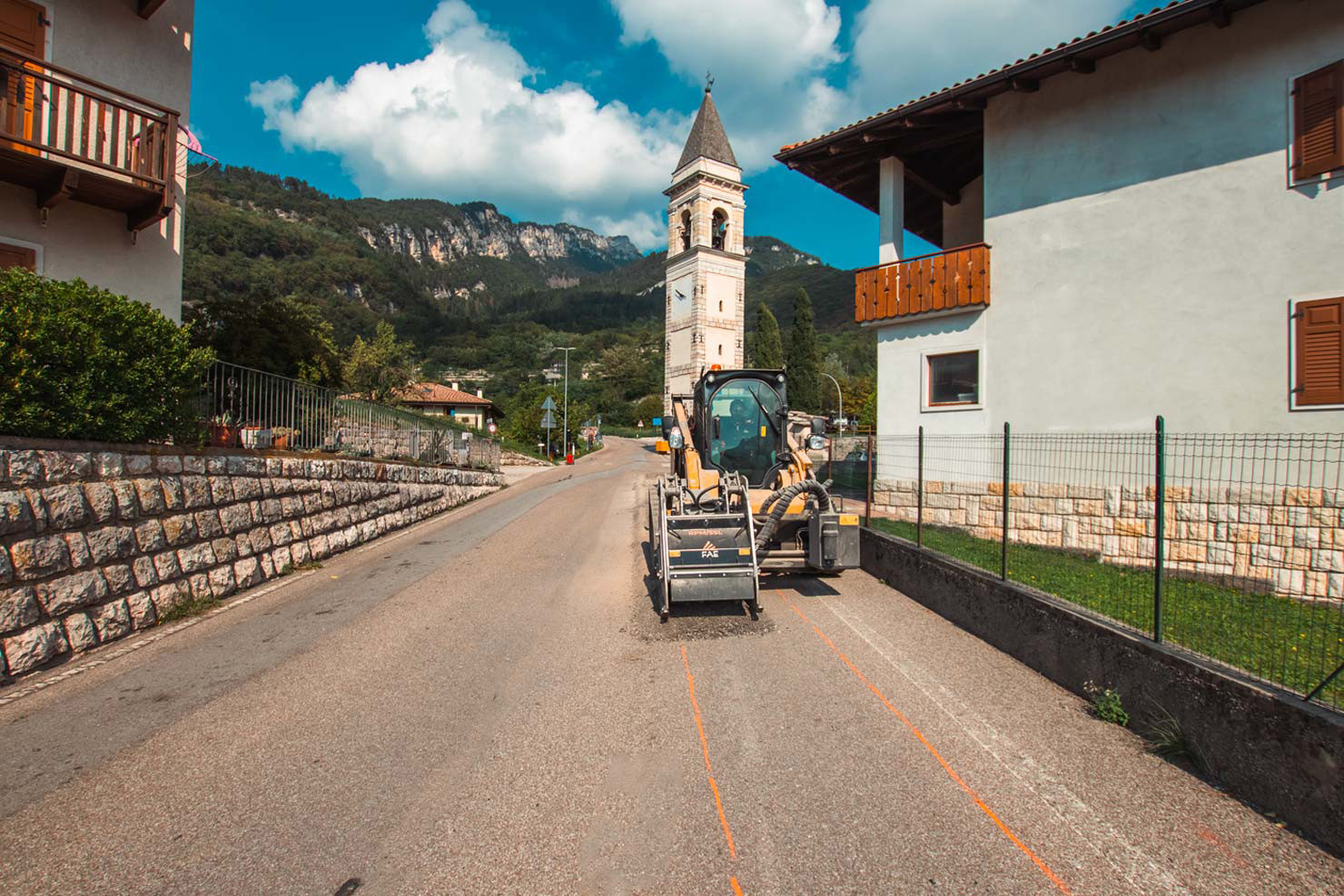

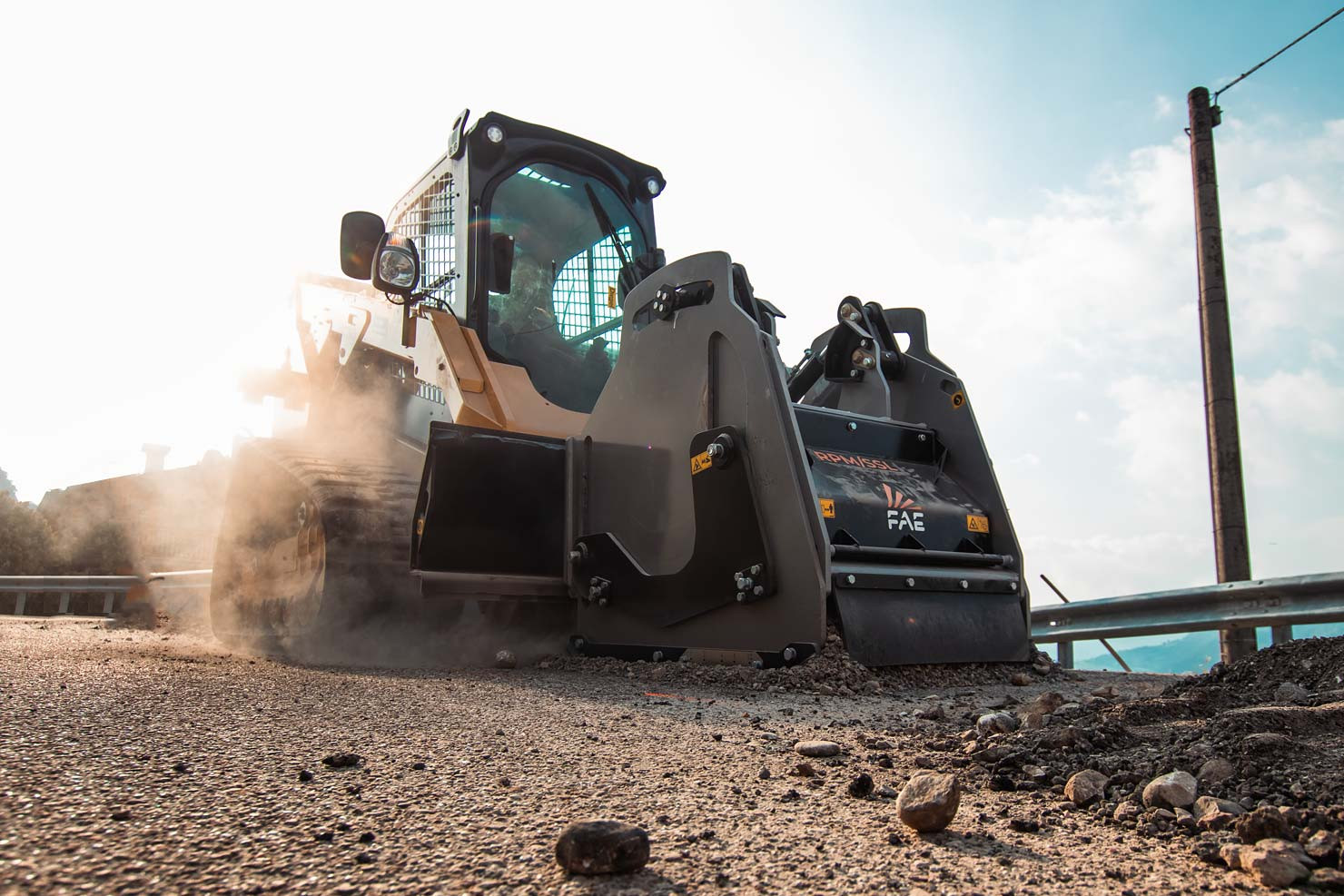

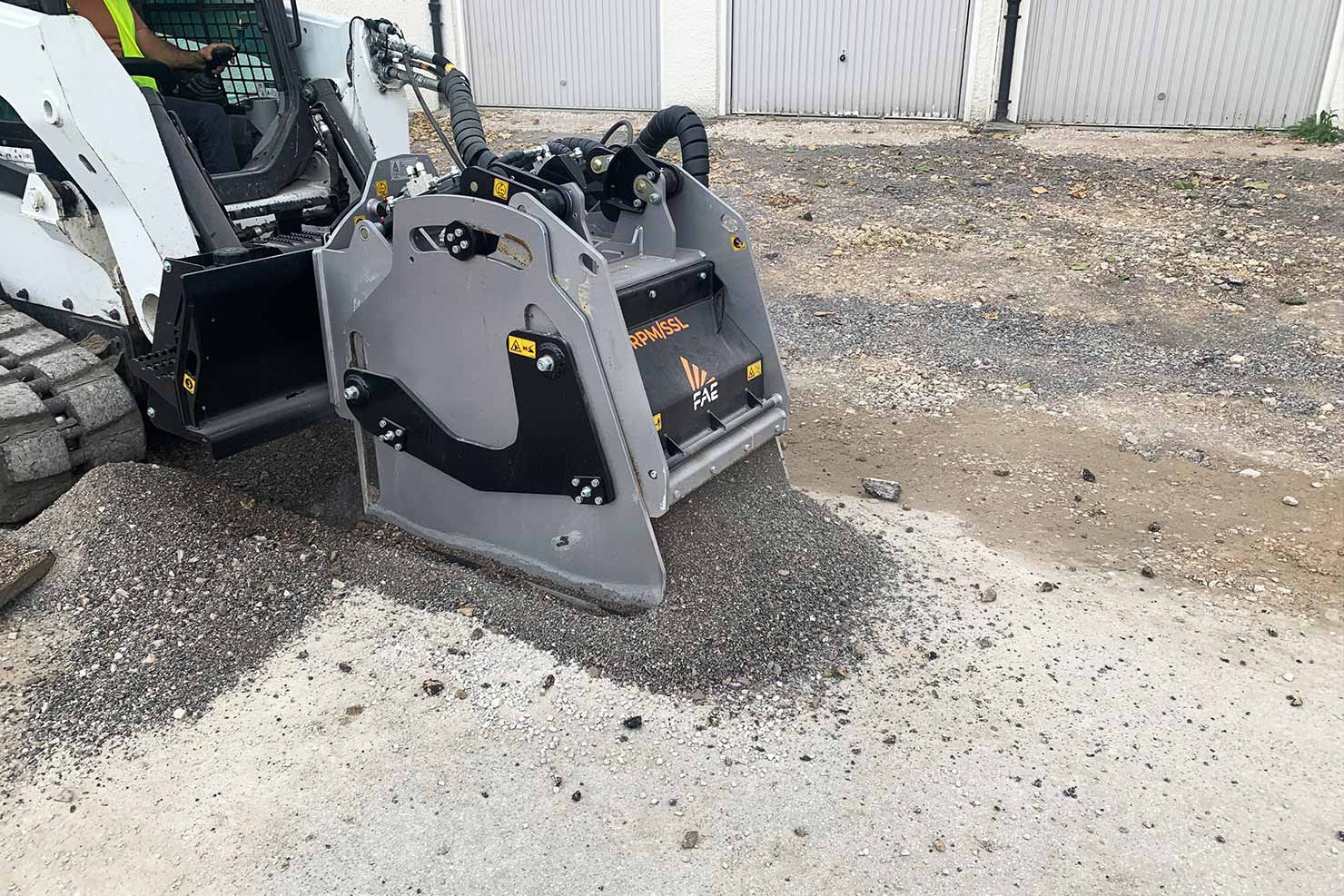

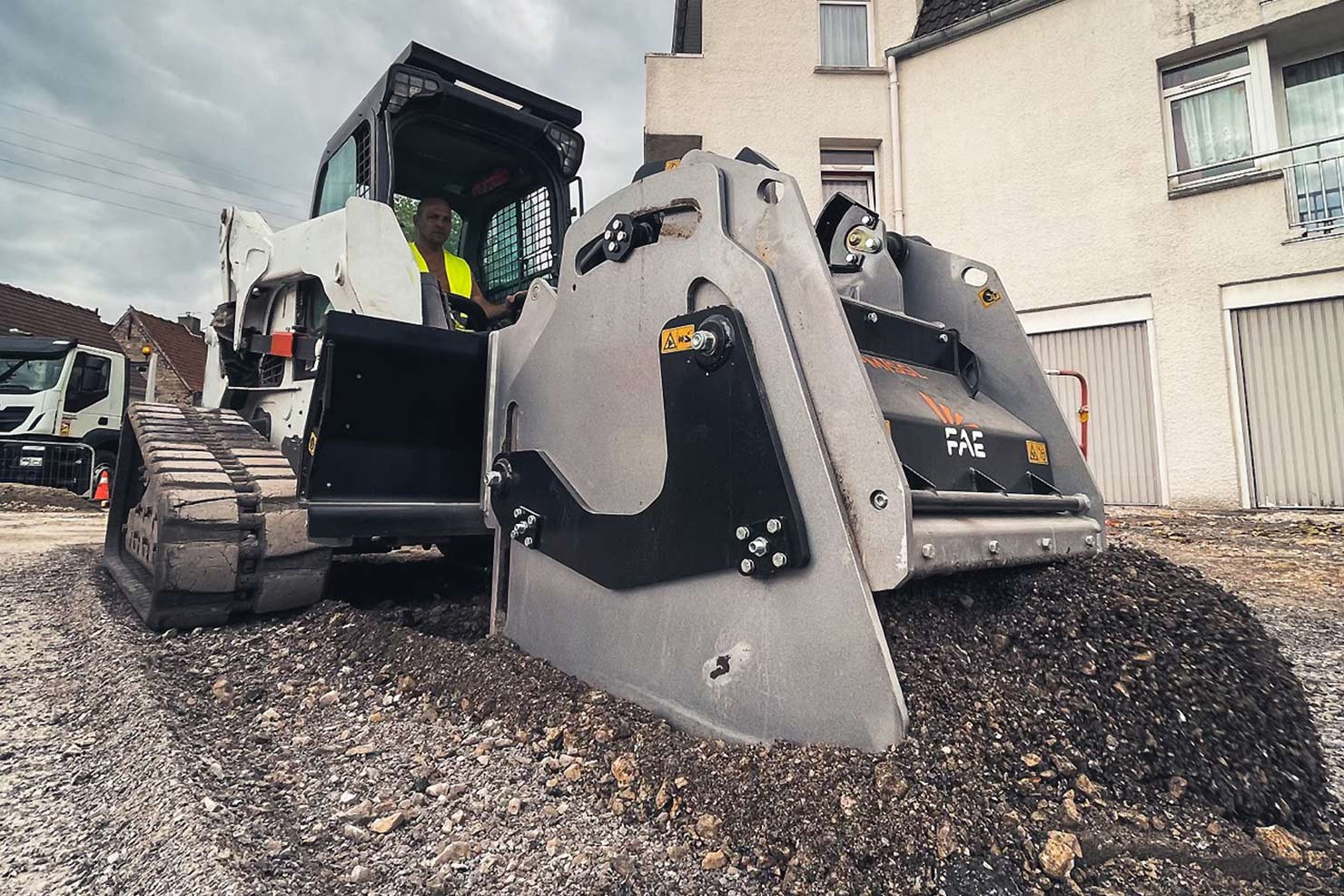

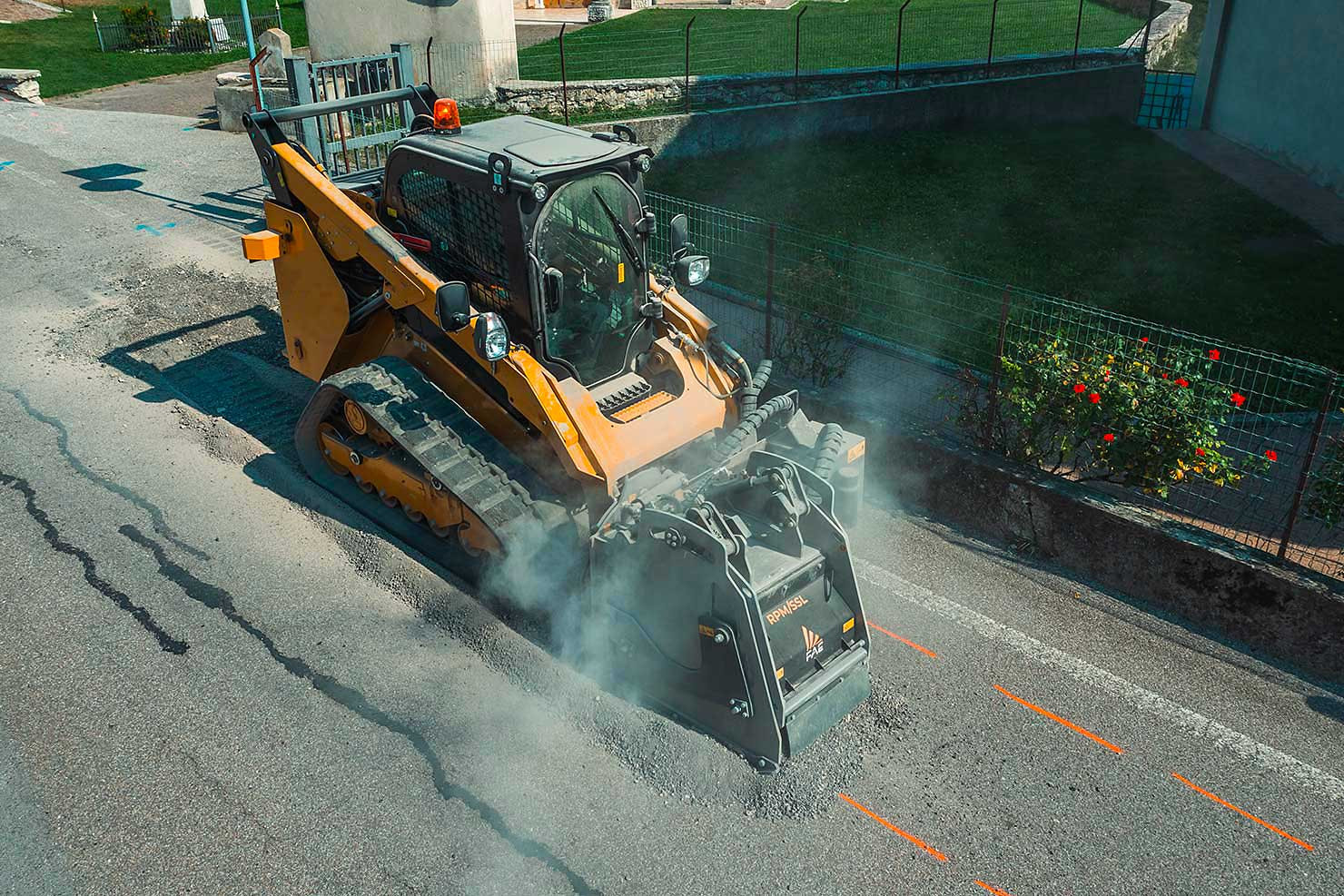

The RPM/SSL is a road planer for skid steers from 75 to 135 hp, able to shred up to 10 in deep, at a width of 24 in. The RPM/SSL is ideal for road surface preparation before adding a new layer of asphalt or concrete, or to simplify excavation operations. The self-leveling skids and tilt ensure optimal results on uneven surfaces. Operational precision is ensured by the hydraulic drive system as well as practical depth and cutting indicators. The line is completed with teeth specifically designed for asphalt and concrete road surfaces.

Read more

Request information

Technical data sheet

Engine

from 75 to 135 hp

Working depth

10 in max

Most important features

Plug & play pairing

with leading skid steers on the market

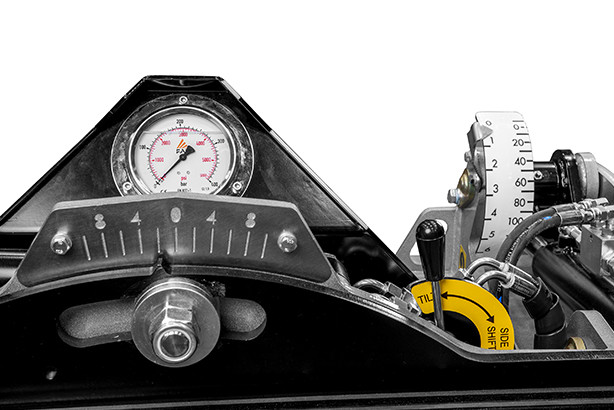

Cutting and depth indicators

for precise operation control

Tilt

for optimal results on uneven surfaces

Skids with Hardox soles and interchangeable plows

allow the machine to penetrate the ground better

Hydraulic drive system

for accurate positioning over the work area

Applications:

• Asphalt milling
• Asphalt recycling

Standard equipment

• • Hydraulic side shifting
• • Enclosed, dust-resistant machine body
  • Working pressure control gauge
  • Hydraulic hoses
• • 12V diverter valve
  • Hydraulic block with safety and anticavitation valves
• • Adaptor wiring
  • SAE attachment frame with integrated water tank
• • Mechanical swinging and floating system
  • Mobile sides-frame
  • Cutting indicator
  • Direct-drive transmission
  • Wear-resistant interchangeable Hardox® soles
  • Support-skid-independent hydraulic control
  • Hydraulically adjustable working depth
• • Rotor with picks R/44/A
• • 1130 cc hydraulic piston motor

Original FAE tools

Unmatched performance

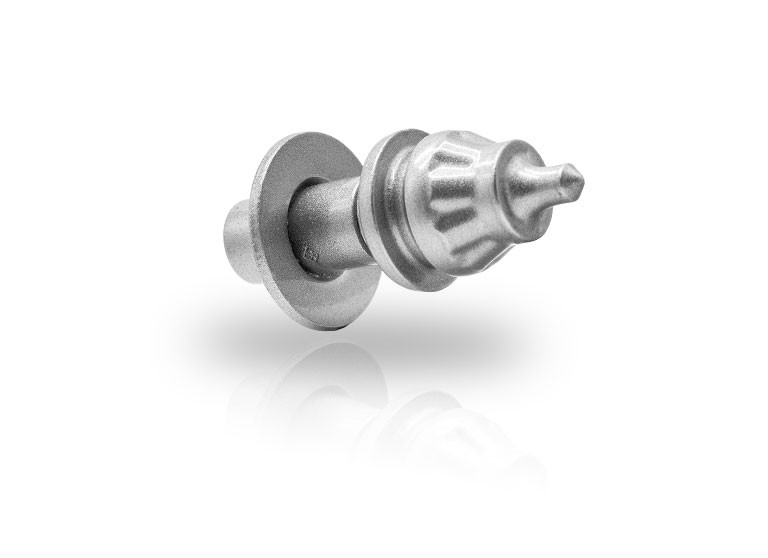

Pick R/44/A

standard

Ideal for:

Paved roads

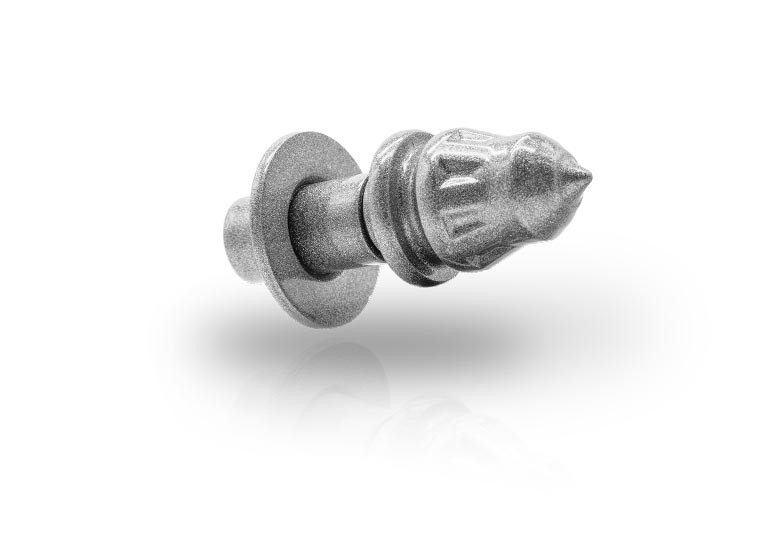

Pick R/44/C

optional

Ideal for:

Paved roads

Options

Multiple tooth options

Basic WSS - water spray system

Adaptor wiring

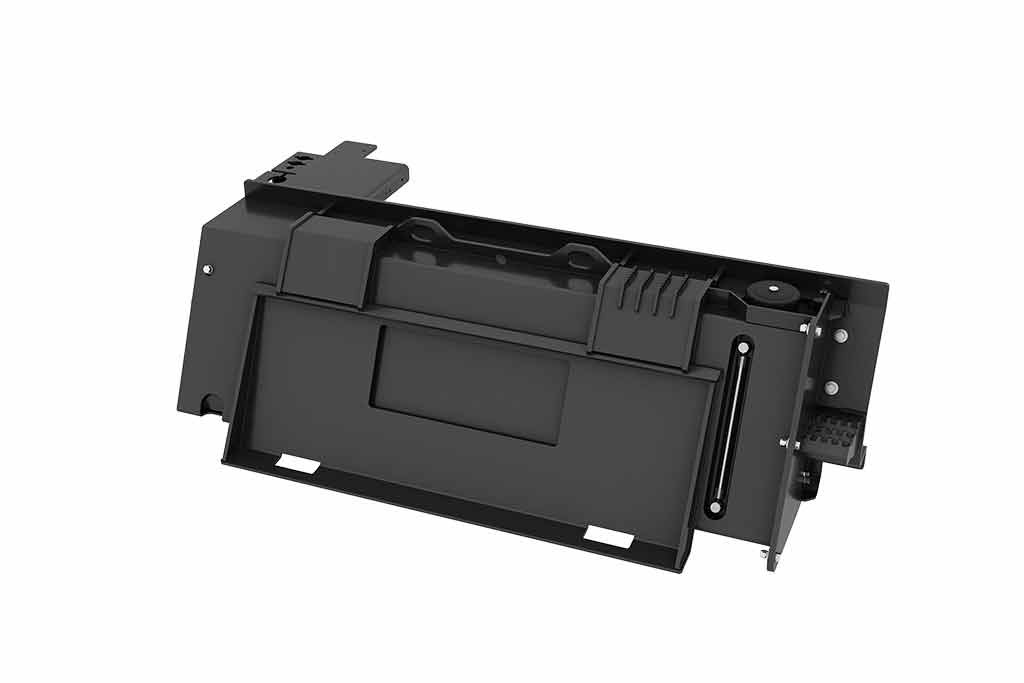

SAE attachment frame with integrated water tank

Hydraulic swinging and floating system

Technology

Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.

Find out more >
