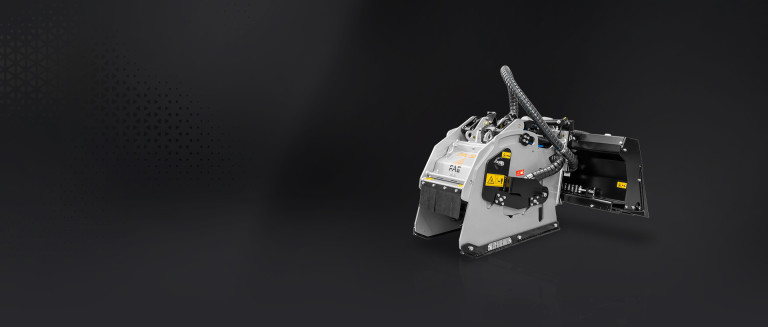

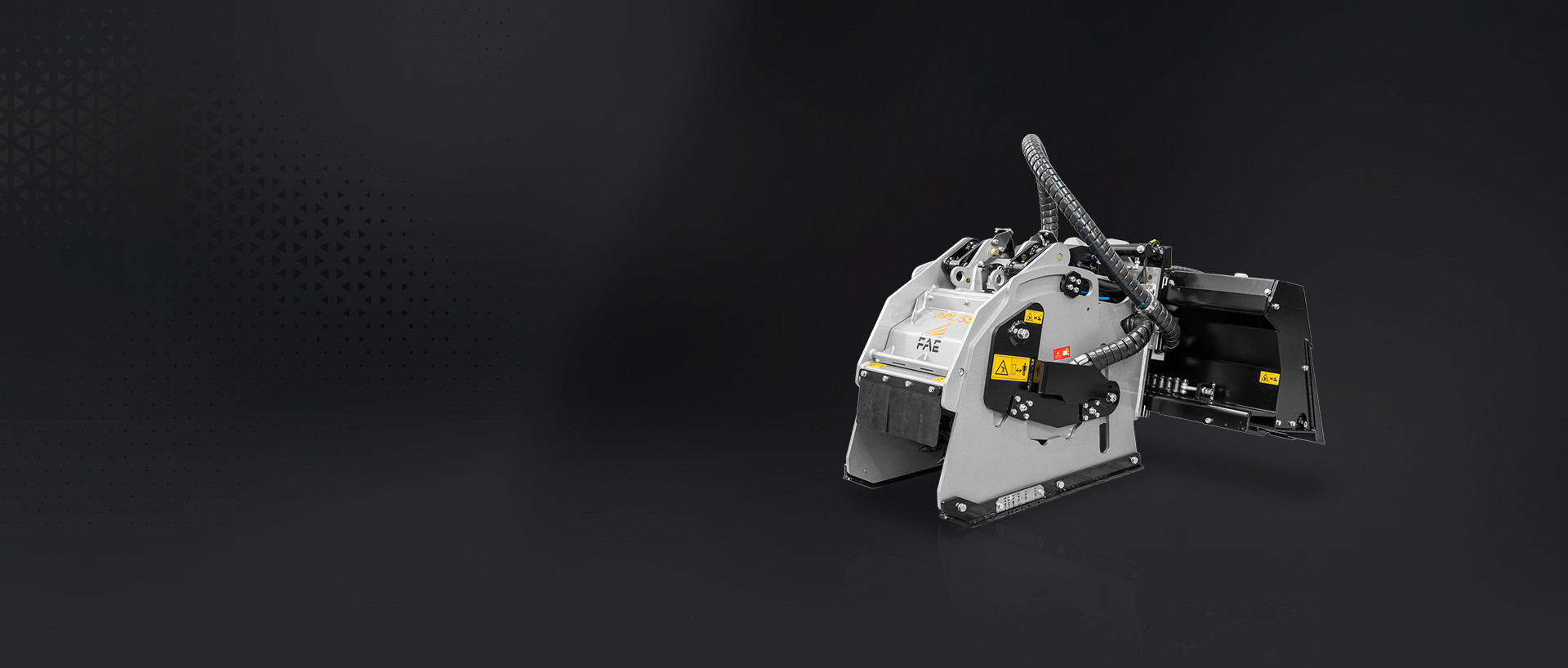

Road planers for skid steers
RPL/SSL
Available in the following versions: RPL/SSL, RPL/SSL/DT

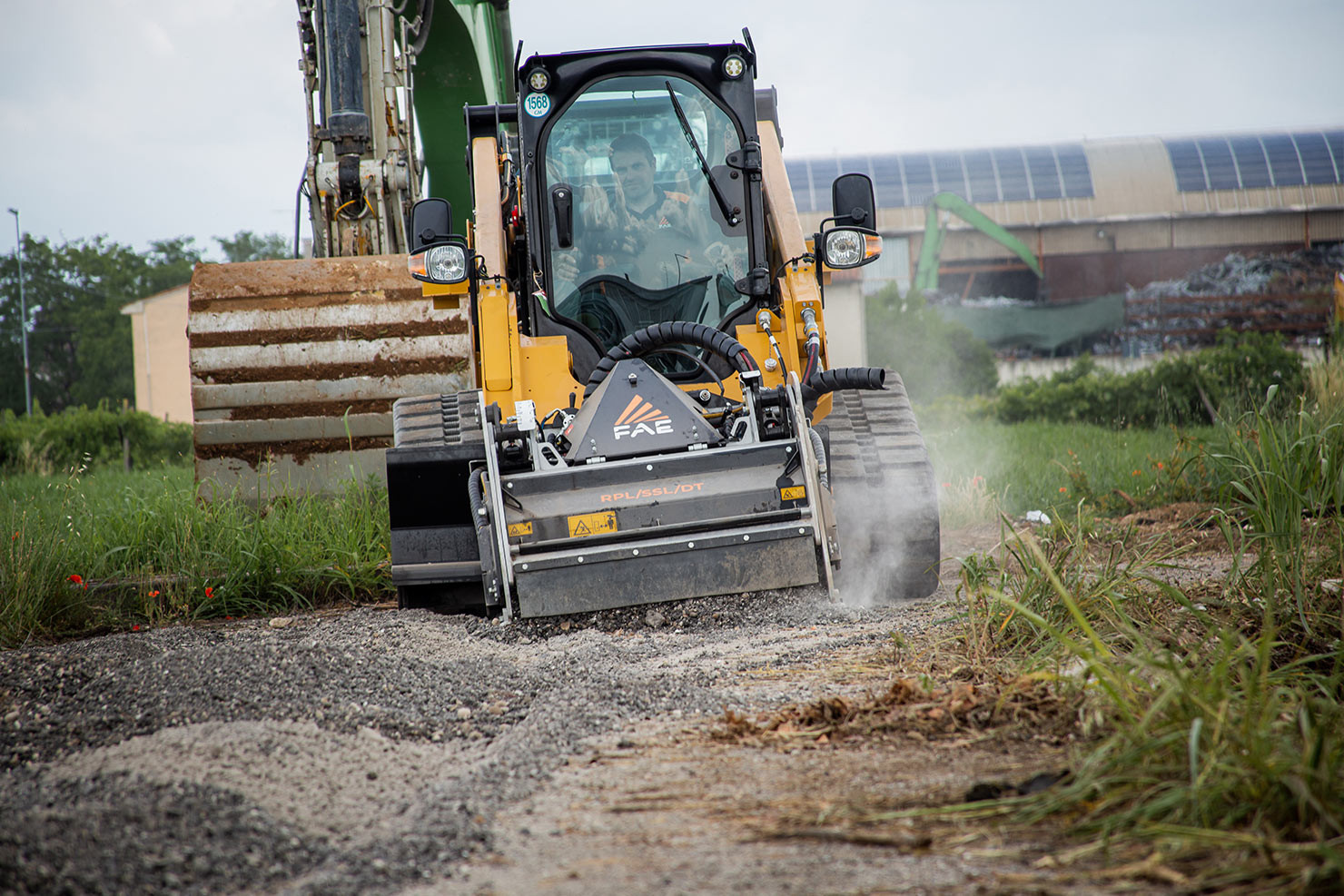

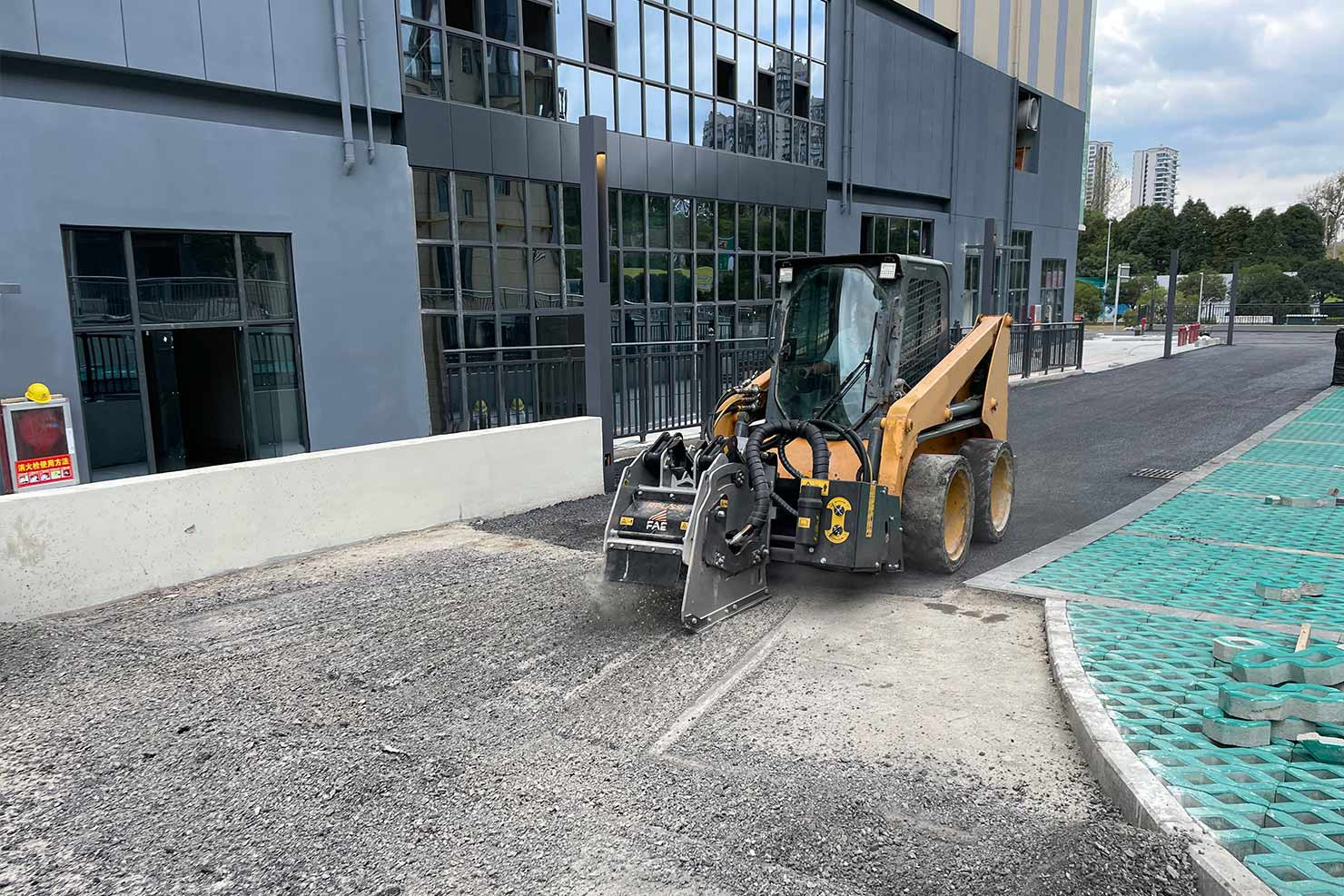

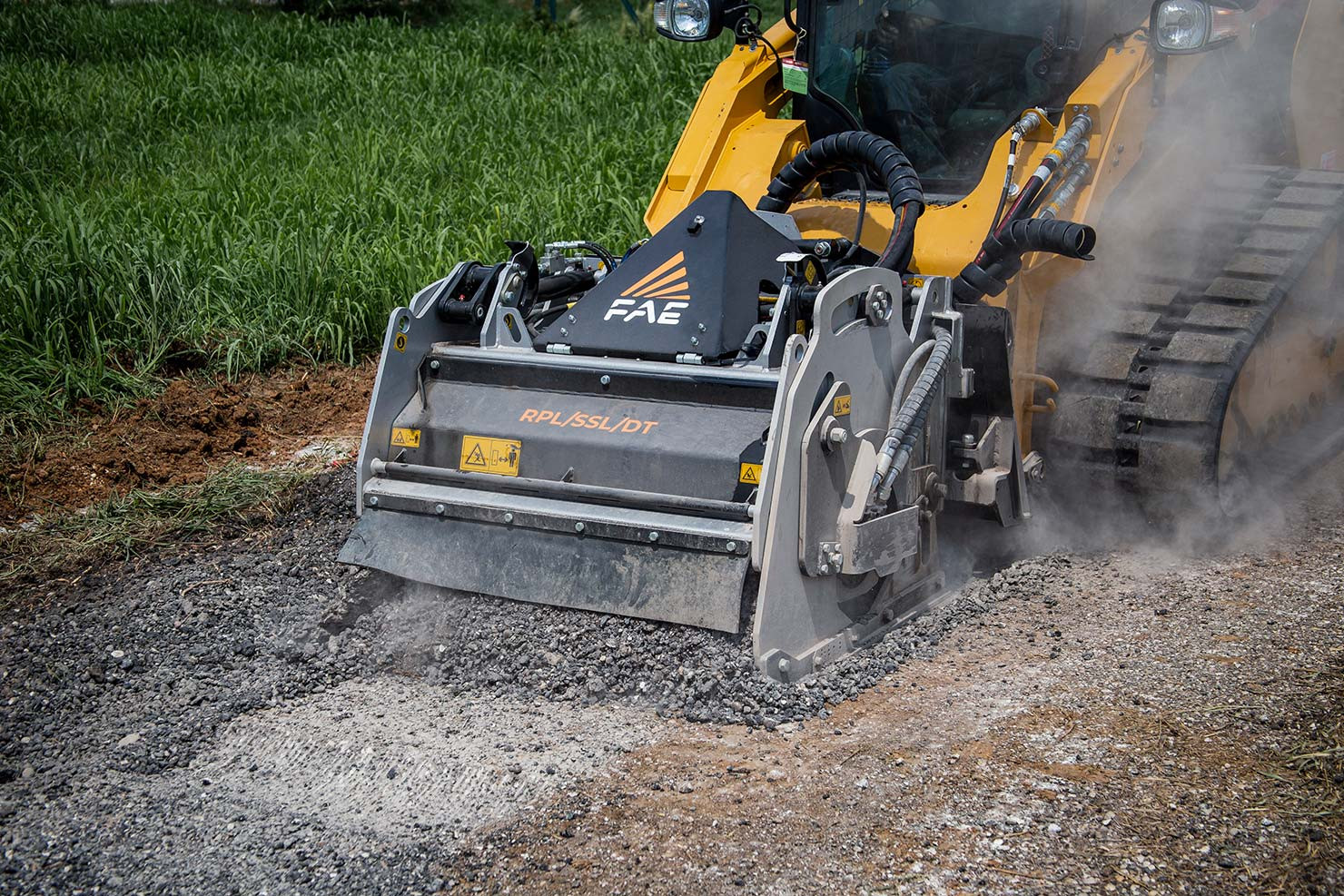

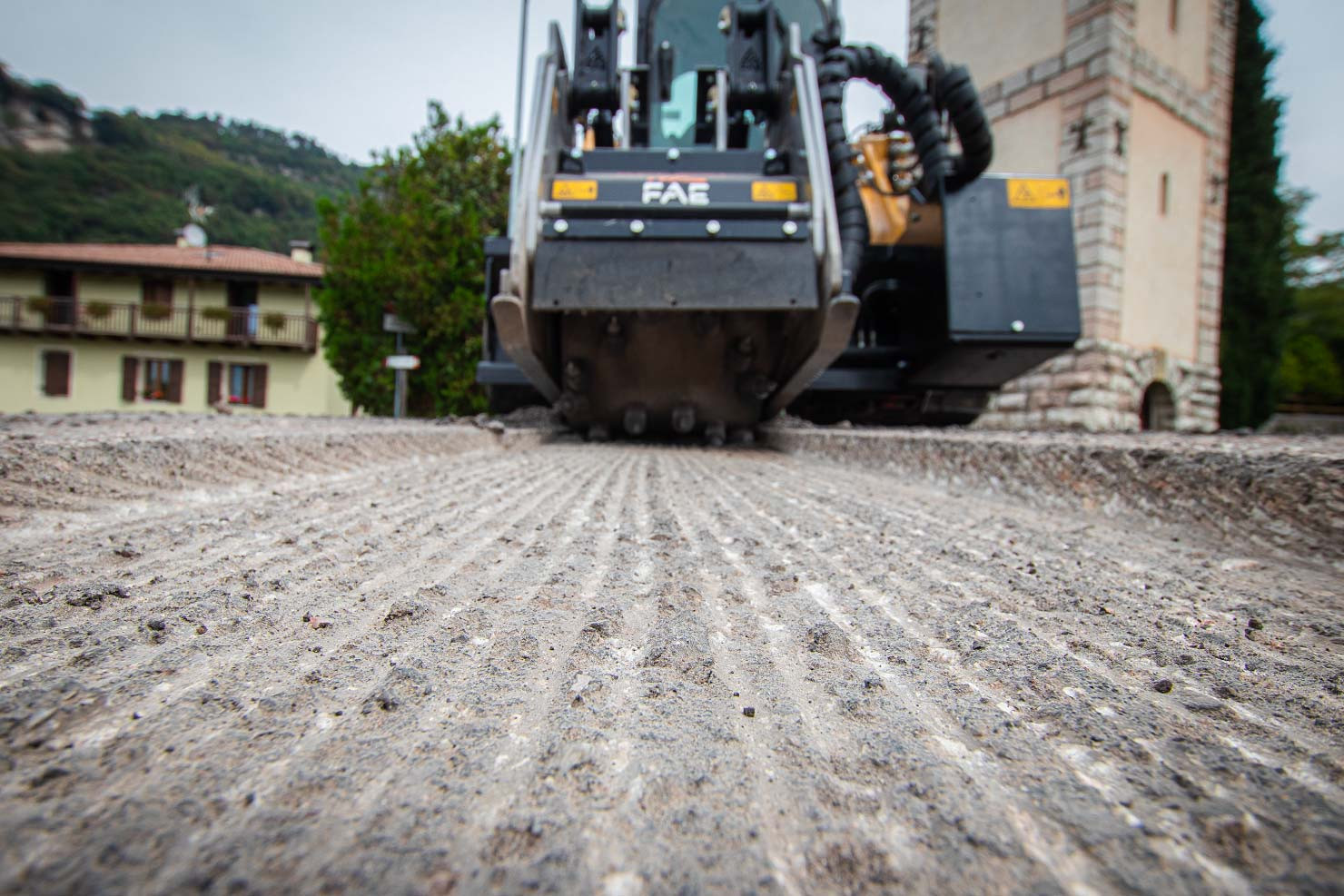

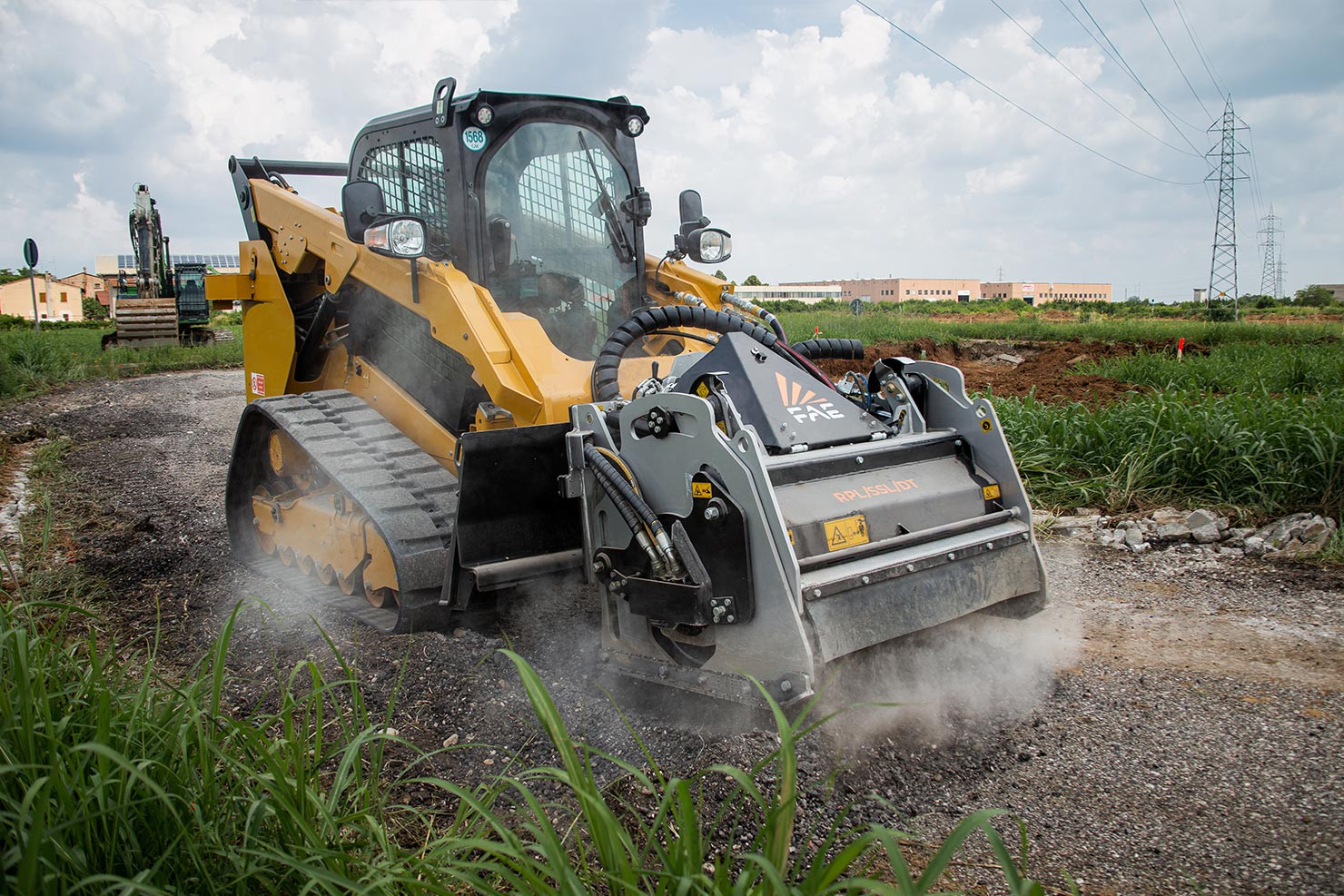

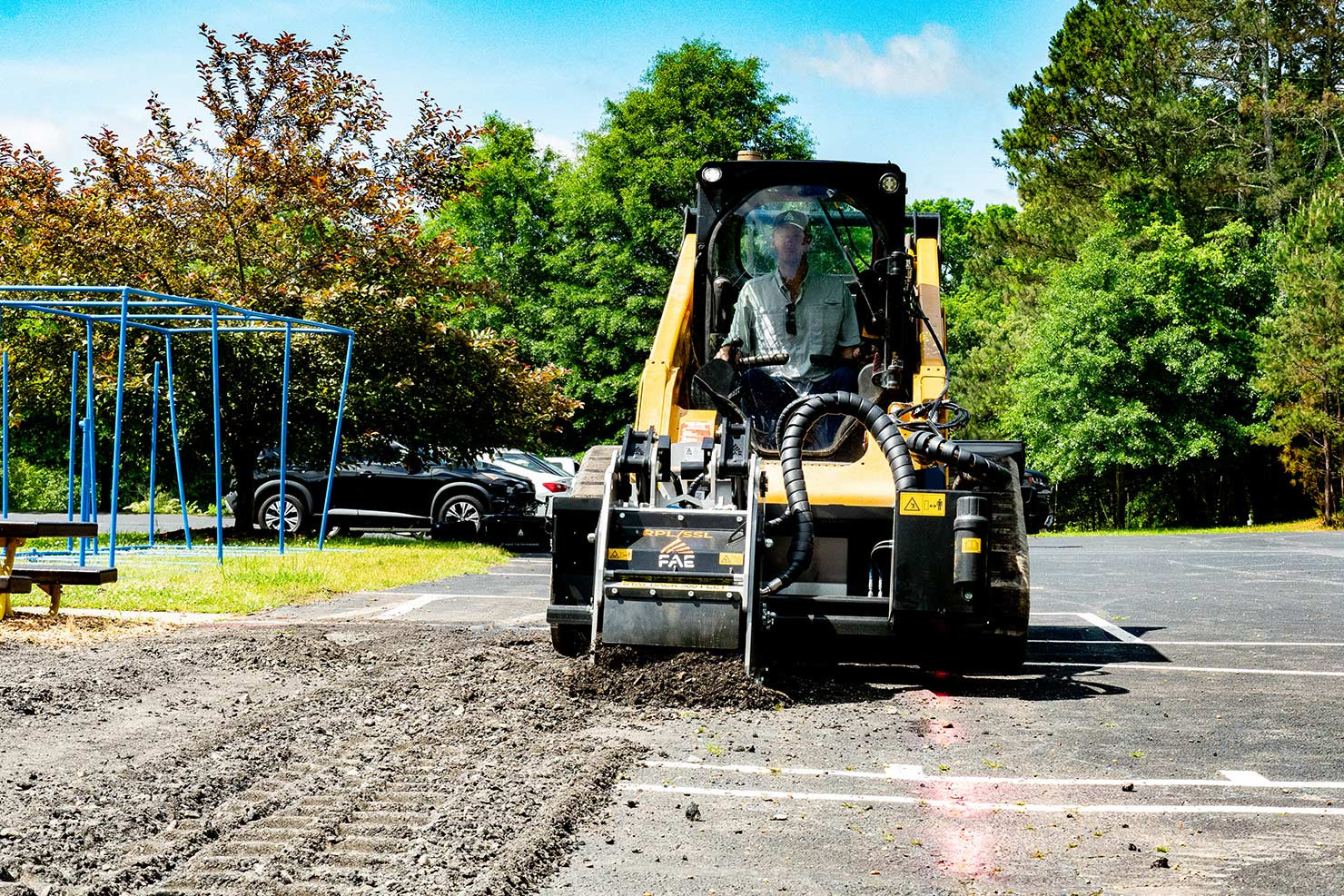

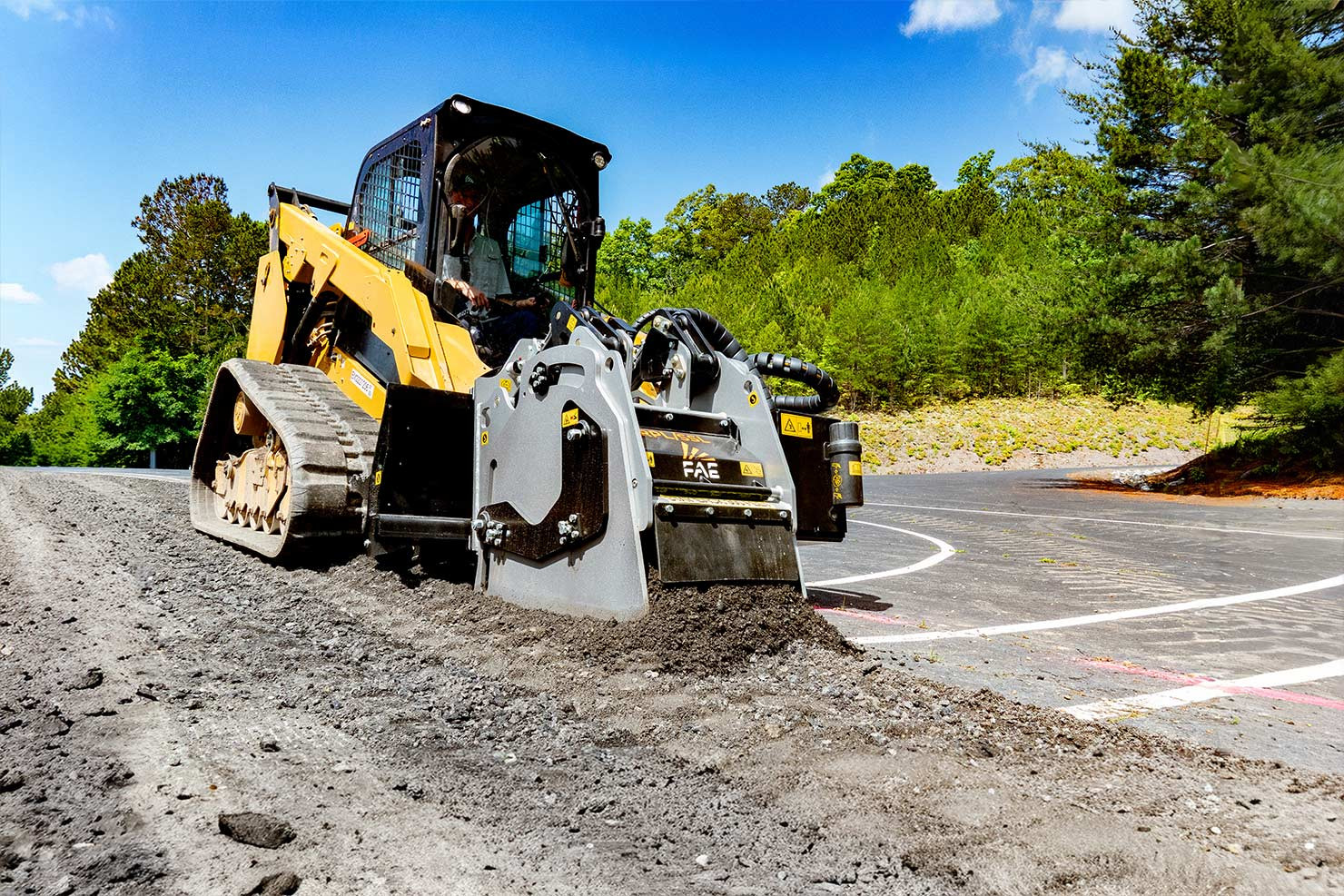

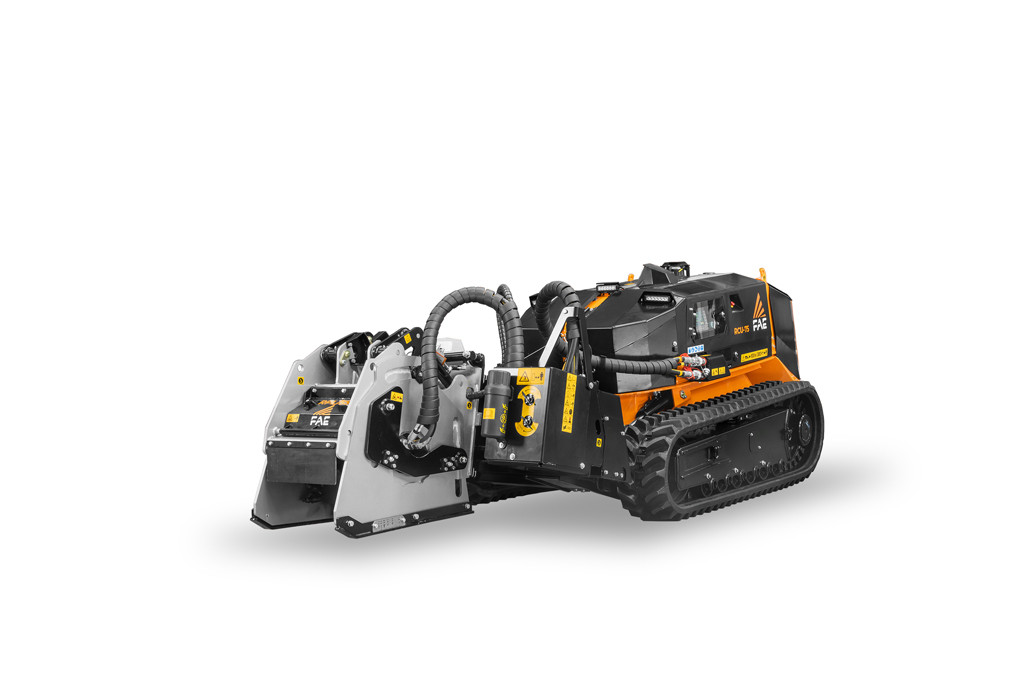

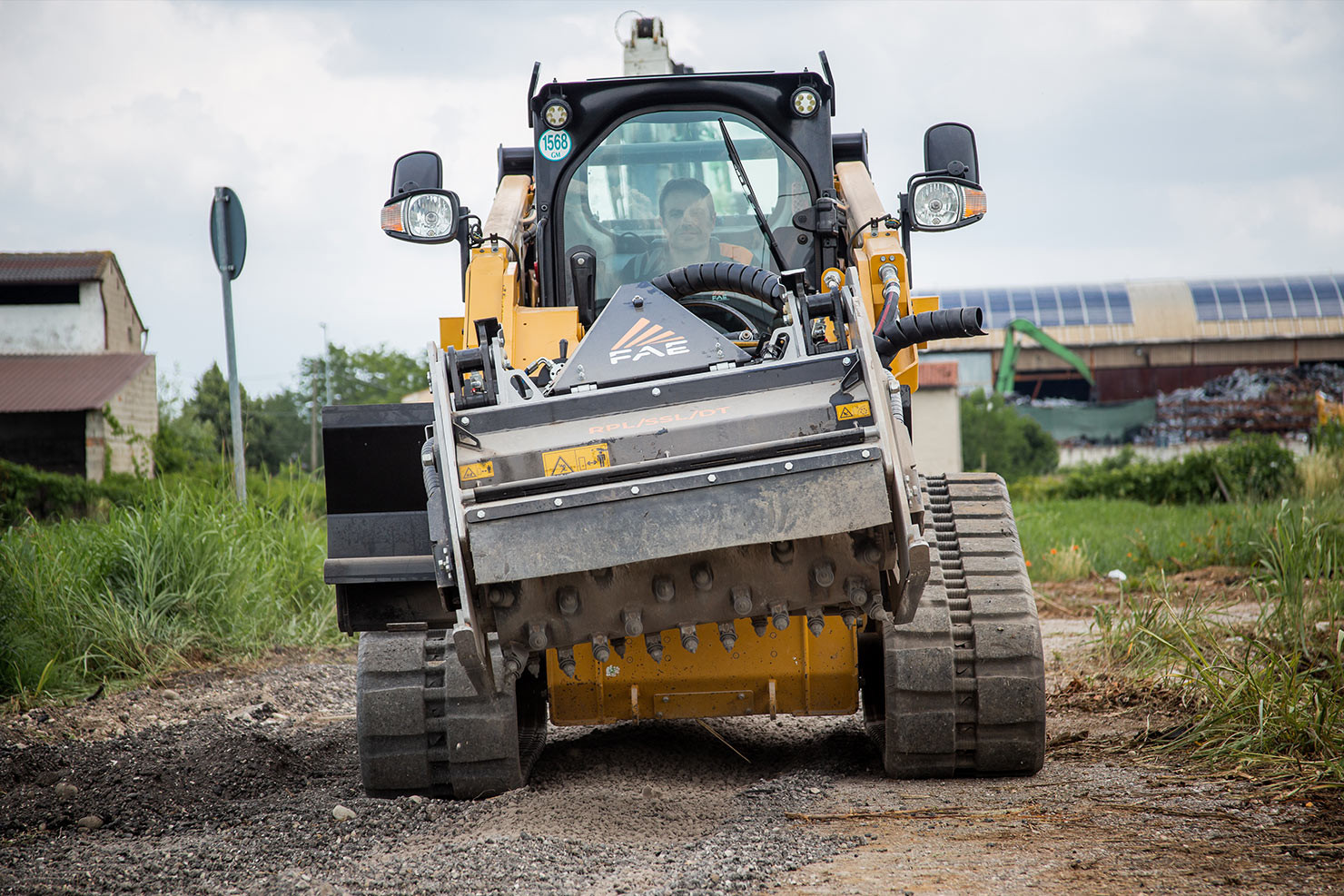

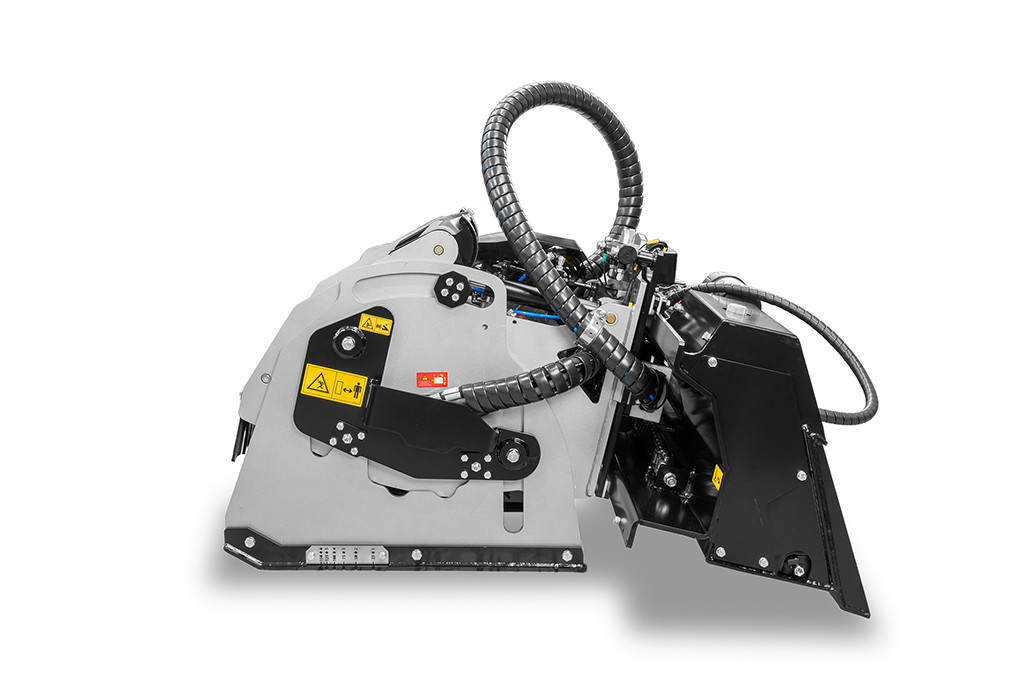

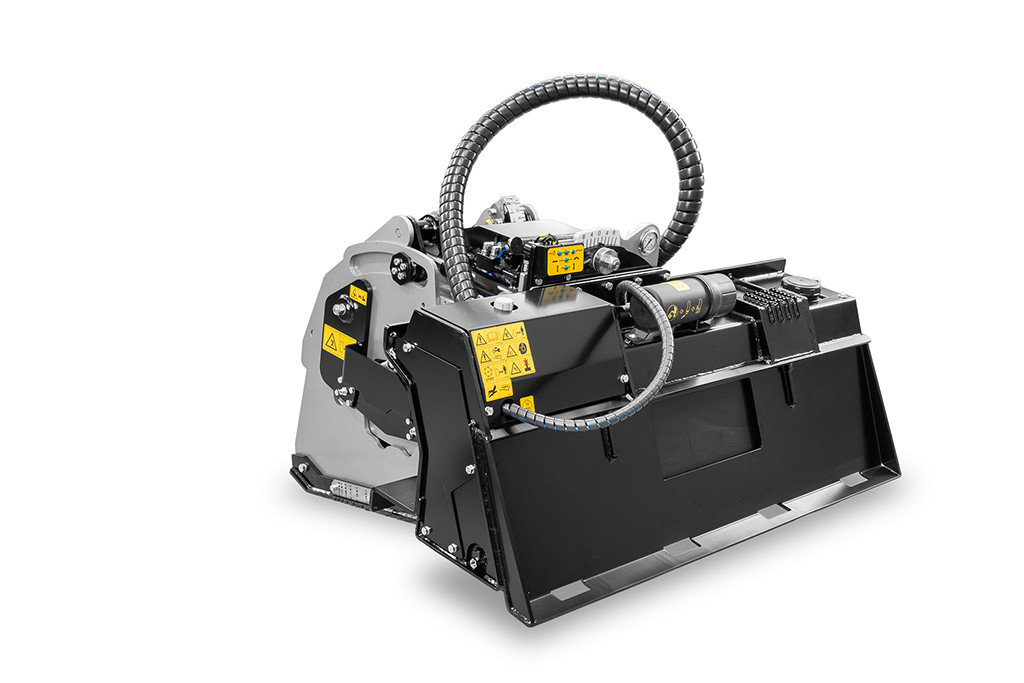

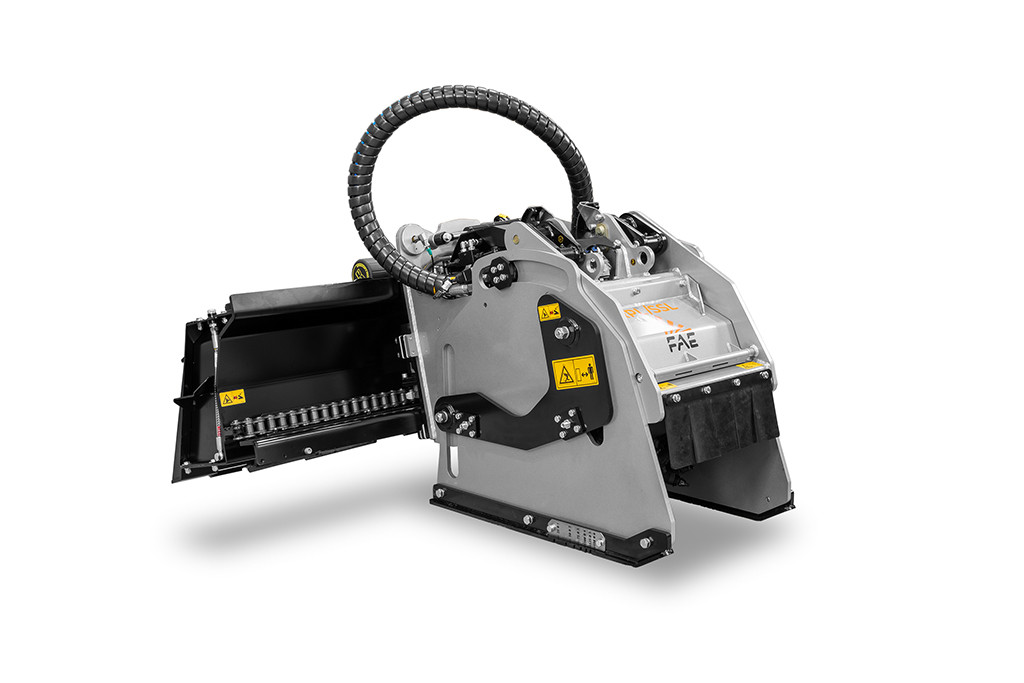

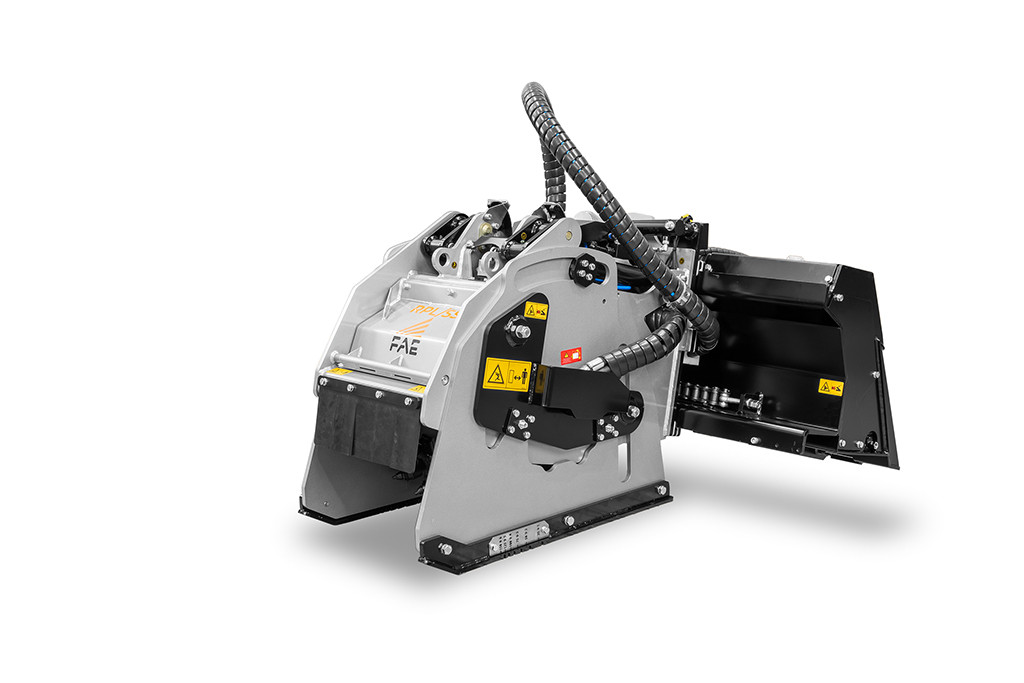

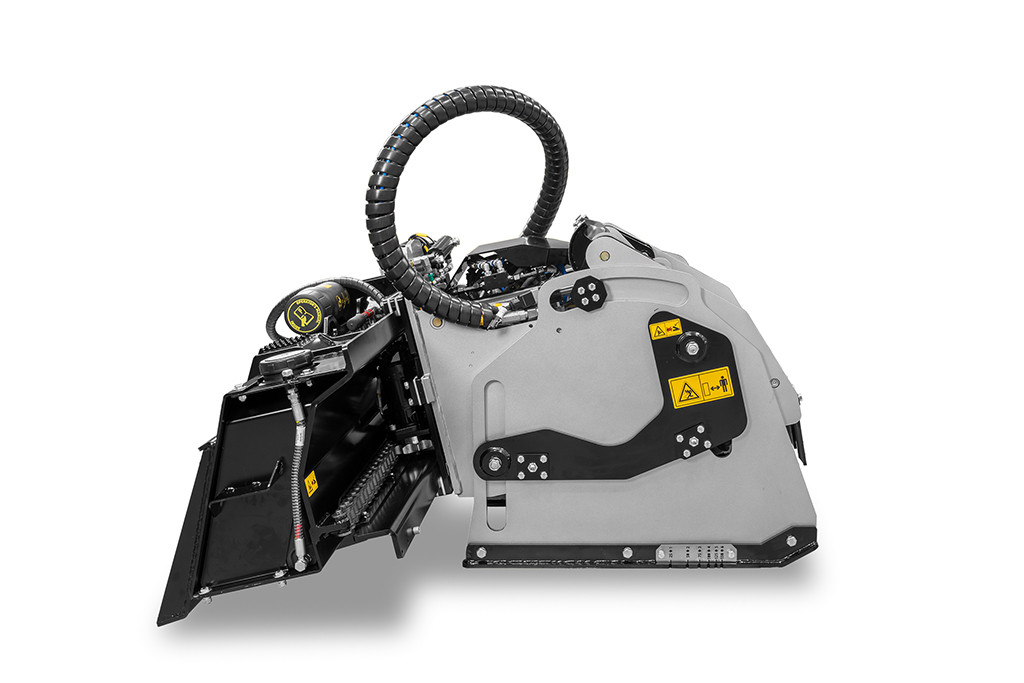

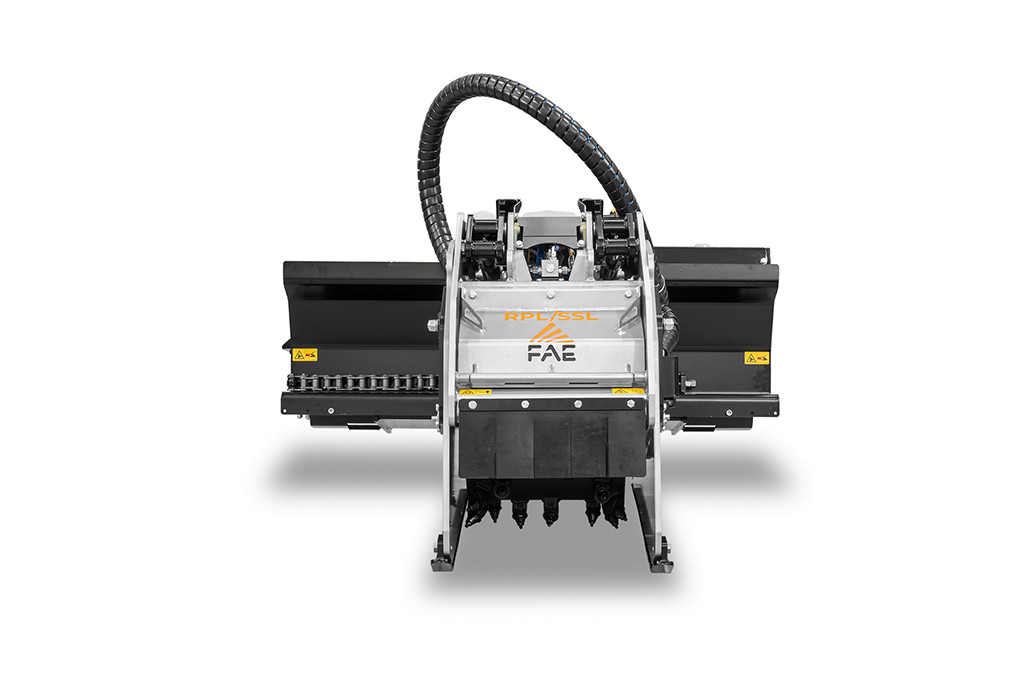

The RPL/SSL is a road planer for 60 to 135 hp skid steers which is capable of milling down to a depth of 17 cm. The dual transmission version is compatible with 90- to 135-hp skid steer loaders to mill up to 14 cm deep. The RPL/SSL line is ideal for road preparation before adding a new layer of asphalt or concrete, or to simplify excavation operations. Self-leveling skids and tilt ensure optimal results. Operational precision is ensured by the hydraulic drive system — which makes it possible to work right up against a wall on the right or left side —  as well as practical depth and cutting indicators. The line is completed with special teeth designed specifically for asphalt and concrete road surfaces.

Tractor

from 60 to 135 hp

Working depth

17 cm max

Most important features
Plug & play pairing

with leading skid steers on the market

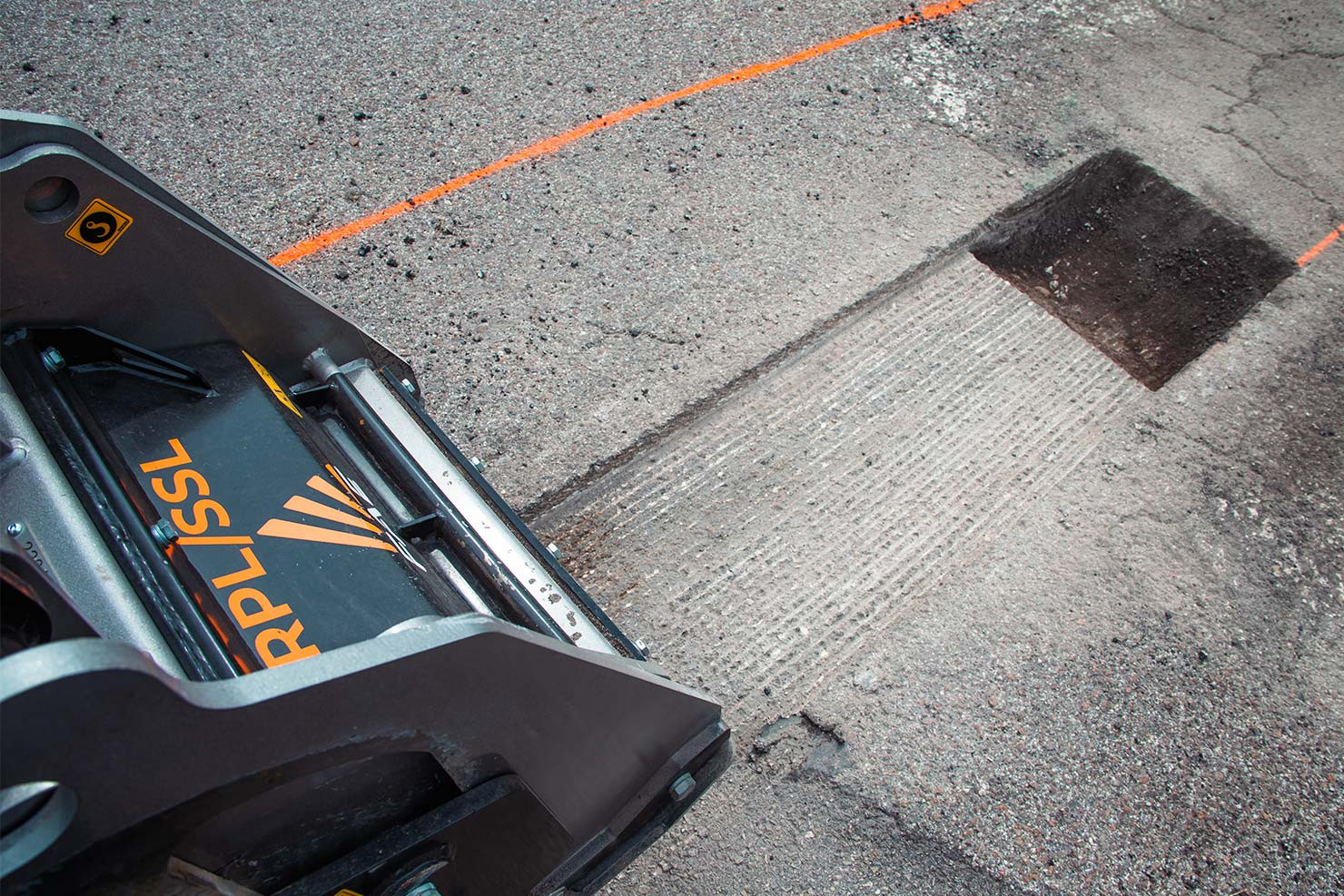

Cutting and depth indicators

for precise operation control

Tilt

for optimal results on uneven surfaces

Hydraulic drive system

for accurate positioning over the work area

Support sleds with interchangeable Hardox® soles

allow the machine to penetrate the ground better

Standard equipment

    • Enclosed, dust-resistant machine body
    • Working pressure control gauge
    • Movable frame sides
    • Rubber protection flap
    • Hydraulic hoses
    • 12V diverter valve
    • Hydraulic block with safety and anticavitation valves
    • Hydraulic side shifting
    • Mechanical swinging and floating system
    • Cutting indicator
    • Direct-drive transmission
    • Wear-resistant interchangeable Hardox® soles
    • Support-skid-independent hydraulic control
    • Hydraulically adjustable working depth
    • Rotor with picks R/44/A
    • 860 cc hydraulic piston motor (RPL/SSL-45, RPL/SSL-60)
    • 940 cc hydraulic piston motor (RPL/SSL-75)
    • 565 cc hydraulic piston motor (RPL/SSL/DT)
    • Adaptor wiring

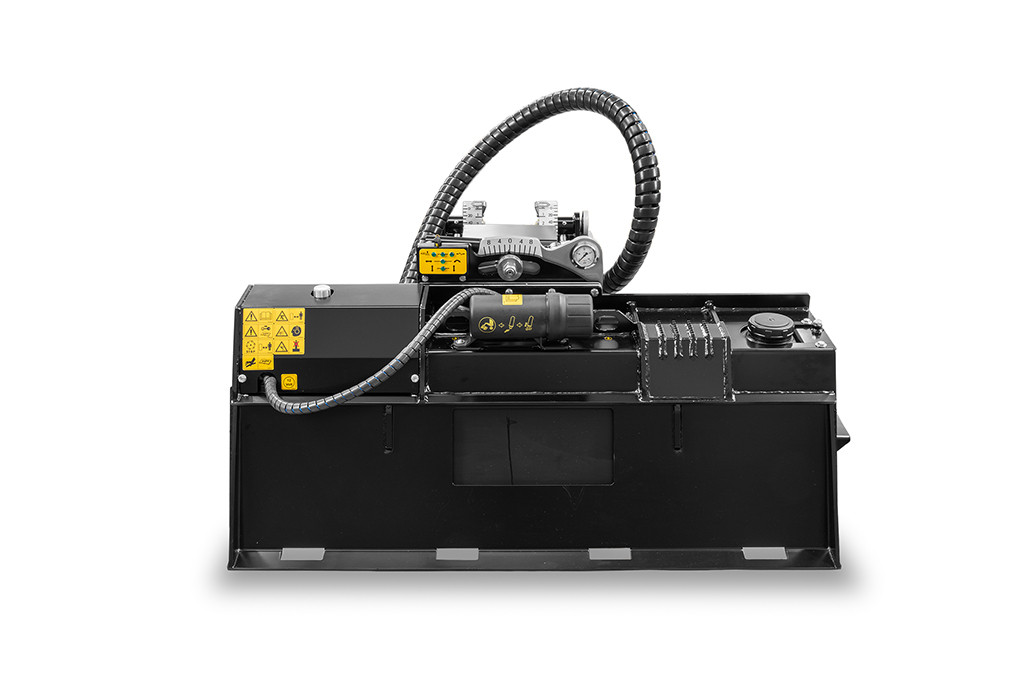

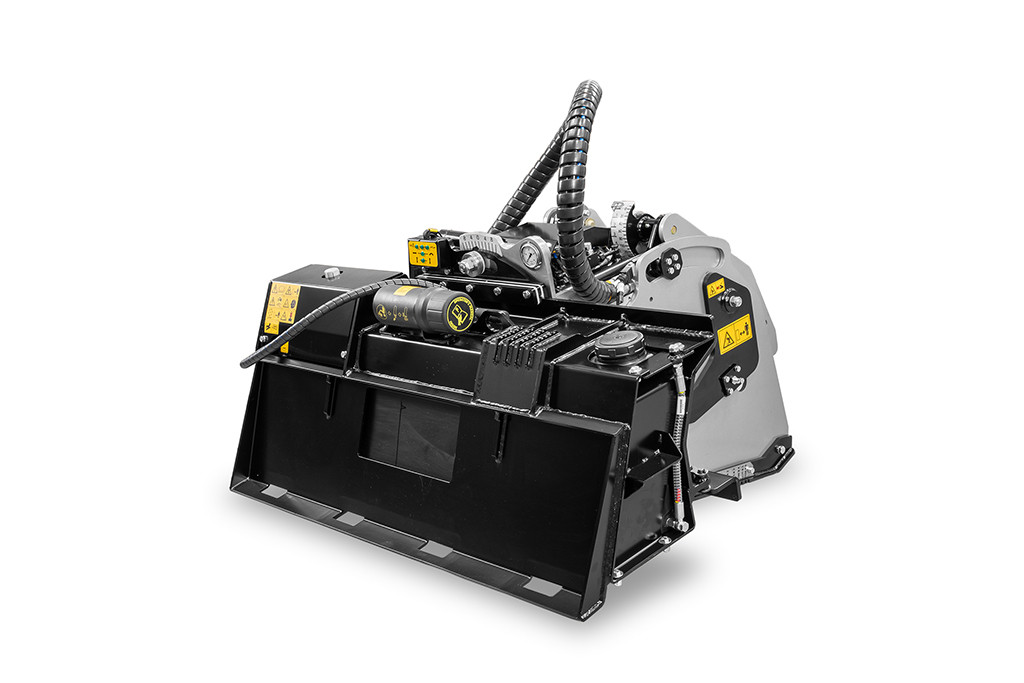

    • SAE attachment frame with integrated water tank

Original FAE tools

Unmatched performance
Pick R/44/A| FAE
Pick R/44/A
standard
Ideal for:
Paved roads
Pick R/44/C | FAE
Pick R/44/C
optional
Ideal for:
Paved roads

Options

Multiple tooth options | FAE
Multiple tooth options
Adaptor wiring | FAE
Adaptor wiring
Hydraulic swinging and floating system (RPL/SSL/DT)
Road planer installation kit for RCU
SAE attachment frame with integrated water tank | FAE
SAE attachment frame with integrated water tank
Basic WSS - water spray system | FAE
Basic WSS - water spray system
Technology - WATER SPRAY SYSTEM | FAE
Technology
Water Spray System

The Water Spray System has the dual function of cooling and mixing.
The cooling function, useful when the machines work as an asphalt cutter (see multi-task machines), has the advantage of limiting the temperature of the rotor and teeth in contact with the asphalt, preventing it from overheating.
The mixing system, on the other hand, is useful in stabilization operations (see multi-task machines and stabilizers) in which the soil and the stabilizing agent are mixed with water.
In fact, at this stage, the addition of water to the mixing chamber improves binding between the stabilizing agent and the soil, optimizing the result of the consolidation work.
